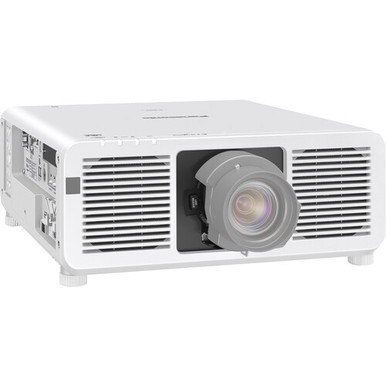

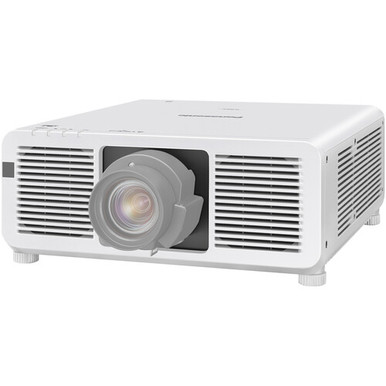

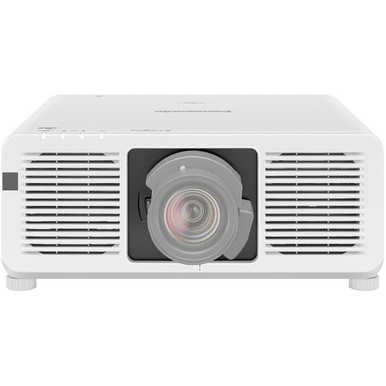

In an era characterized by heightened engagement, entertainment venues are seeking AV technology that goes beyond the ordinary. They require solutions that mesmerize audiences, offering elevated experiences that ignite their senses and forge lasting emotional connections. Introducing the Panasonic PT-REQ12LWU 1-Chip DLP™ 4K Laser Projector, the next-generation innovation tailored to redefine productions and unleash a realm of boundless entertainment possibilities.

This advanced projector is meticulously crafted to deliver remarkable visual experiences, characterized by extraordinary engagement levels. Boasting an impressive brightness of up to 12,000lm, along with the pristine detail of 4K resolution, it sets the stage for immersive encounters that captivate audiences. Furthermore, its cutting-edge 240 Hz projection capability amplifies its prowess, offering a level of visual fluidity that truly transcends expectations.

In essence, the PT-REQ12 projector represents a conduit for extraordinary entertainment, designed to seamlessly weave outstanding engagement into the fabric of any event or venue. With its innovative features, it stands poised to elevate entertainment to new heights, ensuring lasting and profound connections with audiences.

Specifications

Key Specs
Display System 1-Chip 0.80″ DLP
Native Resolution 1920 x 1200
Maximum Brightness 12,000 Lumens (Center)
HDR Support No,
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x BNC Video Input
1x BNC Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
1x RJ45 (Ethernet) LAN Input/Output
1x USB-A Data Input
1x USB-A Power Output
Light Source Laser Phosphor

Image Display
Display System 1-Chip 0.80″ DLP
Native Resolution 1920 x 1200
Supported Resolutions Maximum: 3840 x 2160
Maximum Brightness 12,000 Lumens (Center)
Aspect Ratio
Native: 16:10
Supported: 21:9
Contrast Ratio 25,000:1
Latency 6 ms

Lens
Includes Lens No

Features
HDR Support No,
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes

Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x BNC Video Input
1x BNC Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
1x RJ45 (Ethernet) LAN Input/Output
1x USB-A Data Input
1x USB-A Power Output
HDCP Support Yes, Version 2.3
Media/Memory Card Slot No
Number of Expansion Slots 1

Hardware
Mobile App Compatible
Yes: Android & iOS
App Name: Smart Projector Control
Functionality: Adjust Settings, Setup
Bluetooth No

General
Light Source Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise
Full Brightness: 38 dB
Low Brightness: 35 dB
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 1030 W
Medium Brightness: 880 W
Low Brightness: 670 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 19.6 x 8.3 x 21.2″ / 498.0 x 212.0 x 538.0 mm
Weight 59.5 lb / 27 kg
