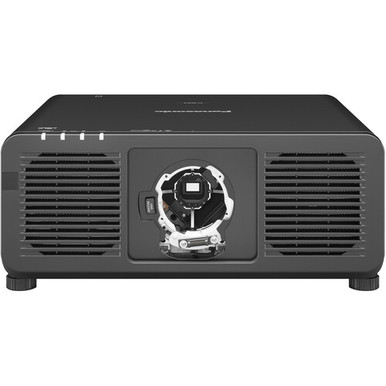

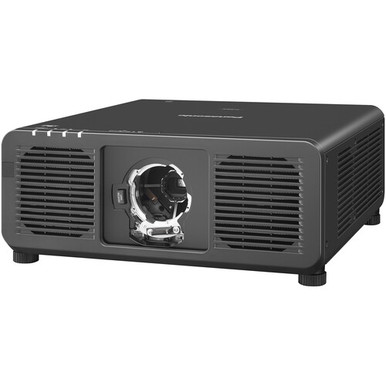

When equipped with a supported lens (not included), the black, Quad Pixel Drive-powered Panasonic PT-REQ80L 8000-Lumen WUXGA Laser DLP Projector offers a 1920 x 1200 resolution, but is capable of accepting content up to 4K for large venues with an incredibly bright 8000 lumens. Even fast-motion video is supported with 240 Hz refresh on up to 2K resolution footage and a low 6 ms latency. Many features are offered for remote and customized setup and management, even with the projector powered off. The PT-REQ80L is also extremely reliable, with a IP5X dust-resistant design and water-cooled multi-laser light that do not require filters and offer nearly maintenance-free operation for up to 20,000 hours.

Specifications

Key Specs
Display System 1-Chip 0.80″ DLP
Native Resolution 1920 x 1200
Maximum Brightness 8000 Lumens (Center)
HDR Support No,

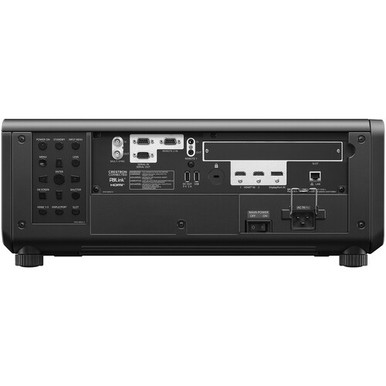

Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x BNC Video Input
1x BNC Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
1x RJ45 (Ethernet) LAN Input/Output
1x USB-A Data Input
1x USB-A Power Output
Light Source Laser Phosphor

Image Display
Display System 1-Chip 0.80″ DLP
Native Resolution 1920 x 1200
Supported Resolutions Maximum: 3840 x 2160
Maximum Brightness 8000 Lumens (Center)
Aspect Ratio
Native: 16:10
Supported: 21:9
Contrast Ratio 25,000:1
Latency 6 ms

Lens
Includes Lens No

Features
HDR Support No,
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes

Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x BNC Video Input
1x BNC Video Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x 1/8″ / 3.5 mm Mini Remote Input
1x 1/8″ / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
1x RJ45 (Ethernet) LAN Input/Output
1x USB-A Data Input
1x USB-A Power Output
HDCP Support Yes, Version 2.3
Media/Memory Card Slot No
Number of Expansion Slots 1

Hardware
Mobile App Compatible
Yes: Android & iOS
App Name: Smart Projector Control
Functionality: Adjust Settings, Setup
Bluetooth No

General
Light Source Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise
Full Brightness: 35 dB
Low Brightness: 32 dB
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 760 W
Medium Brightness: 595 W
Low Brightness: 465 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 19.6 x 8.3 x 21.2″ / 498.0 x 212.0 x 538.0 mm
Weight 59.5 lb / 27 kg
