Display System 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
On-Screen Resolution Up to WQXGA (2715 x 1697) via Pixel-Shift Technology, up to 2715 x 1697
Supported Resolutions Maximum: 4K UHD – 3840 x 2160 @ 60 Hz
Maximum Brightness 8000 Lumens
Uniformity 90%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 10,000:1, 10,000:1 Lens Lens
Lens f/1.7 – 1.9 (f = 25.6 – 35.7 mm)
Throw Ratio 1.71 to 2.41:1
Projection Size 50 – 600″ / 127.00 – 1524.00 cm
Supported HDR Input Formats None
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Number of Expansion Slots 1
Wireless LAN / Wi-Fi No, Optional Adapter Available
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Full Brightness: 40 dB Low Brightness: 38 dB
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 880 W
Operating Altitude 13,779′ / 4200 m
Operating Temperature 32 to 113 F / 0 to 45 C
Operating Humidity 10 to 80%
Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Without Lens, With Legs at the Shortest Position 19.6 x 7.9 x 22.9″ / 498.0 x 200.0 x 581.0 mm With Included Lens, With Legs at the Shortest Position

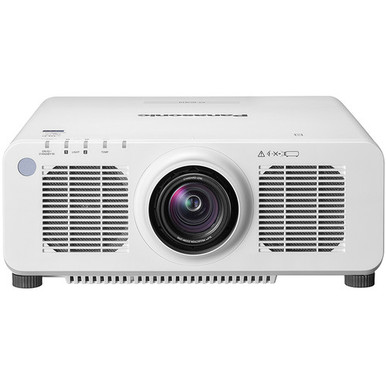

The PT-RCQ80WU features HDMI, 3G-/HD-SDI, DVI-D, and HDBaseT inputs to connect to nearly any source device. The projector is controllable via HDBaseT or RS-232 with various control software options. Key Features
Brightness of 8000 Lumens WUXGA (1920 x 1200) Native Resolution
HDBaseT, 3G-/HD-SDI, DVI-D, HDMI Inputs SLOT NX Expansion Slot 360 Rotation-Capable
Compatible with Various Control Systems HDBaseT, Ethernet, RS-232 Controllable
Compatible with Various Control Systems Designed to Produce Detailed Images with Rich, Natural Colors
The SONIC SHINE laser cooling system helps the light source last for up to 20,000 hours of maintenance-free operation. Additional Features
Compatible with Various Control Systems HDCP-compatible single-link DVI version 1.0
Compatible with Various Control Systems Available software includes Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, and Smart Projector Control for iOS or Android devices Panasonic RCQ80WU Specs Image Display Display System 0.67″ DLP
Compatible with Various Control Systems Native Chip Resolution 1920 x 1200 (WUXGA) On-Screen Resolution Up to WQXGA (2715 x 1697) via Pixel-Shift Technology Supported Resolutions
Compatible with Various Control Systems Maximum 4K UHD – 3840 x 2160 @ 60 Hz Maximum Brightness 8000 Lumens Uniformity 90%
Aspect Ratio Native 16:10
Aspect Ratio Throw Ratio 1.71 to 2.41:1
Projection Size 50 600″ / 127.00 – 1524.00 cm Features
Projection Size Supported HDR Input Formats None Ceiling Mountable Yes Rear Screen Projection Yes
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Service, Video
1 x HDMI (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Input
1 x DVI-D Video Input 1 x BNC Data Input 1 x BNC Data Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Remote Input
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) Data, Power Number of Expansion Slots 1
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi No, Optional Adapter Available General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Full Brightness 40 dB
Fan Noise Low Brightness 38 dB
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 880 W
Power Consumption Operating Altitude 13,779′ / 4200 m, Humidity 10 to 80%
Power Consumption Operating Temperature 32 to 113 F / 0 to 45 C
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Without Lens, With Legs at the Shortest Position 19.6 x 7.9 x 22.9″ / 498.0 x 200.0 x 581.0 mm With Included Lens, With Legs at the Shortest Position
SKU PT-RCQ80WU
