Panasonic JW130HWU Overview

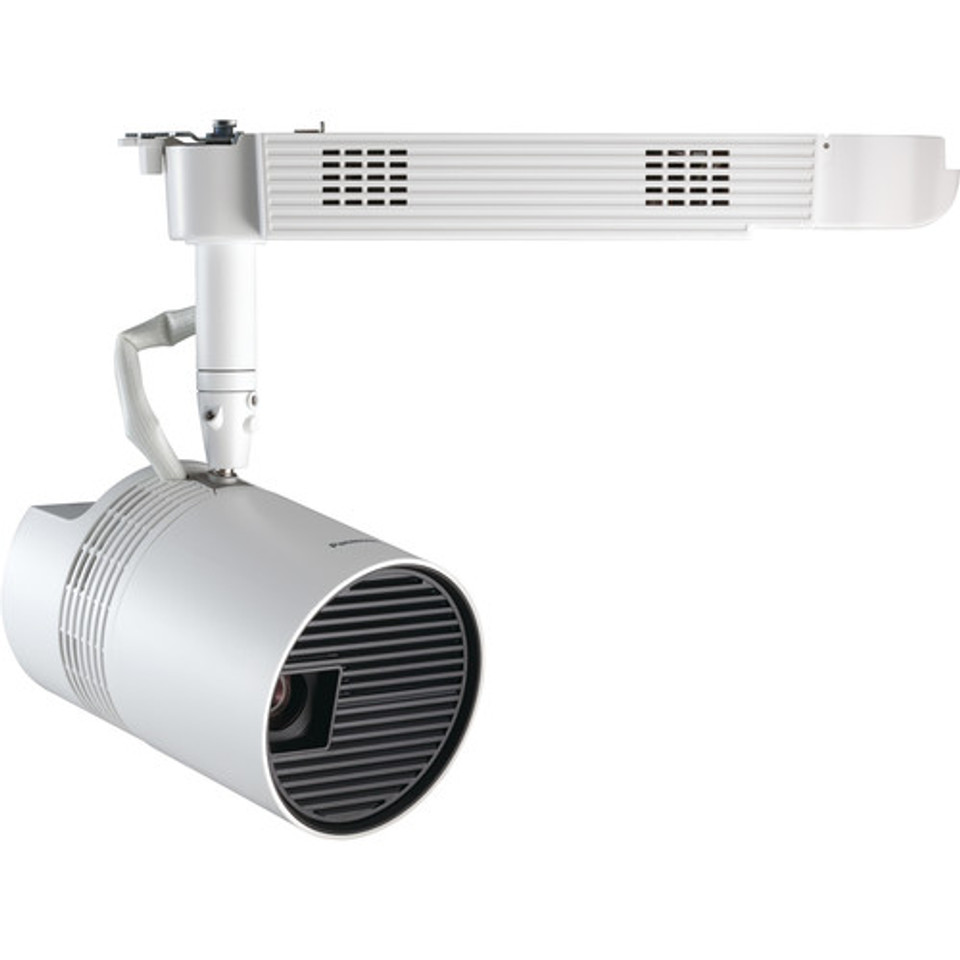

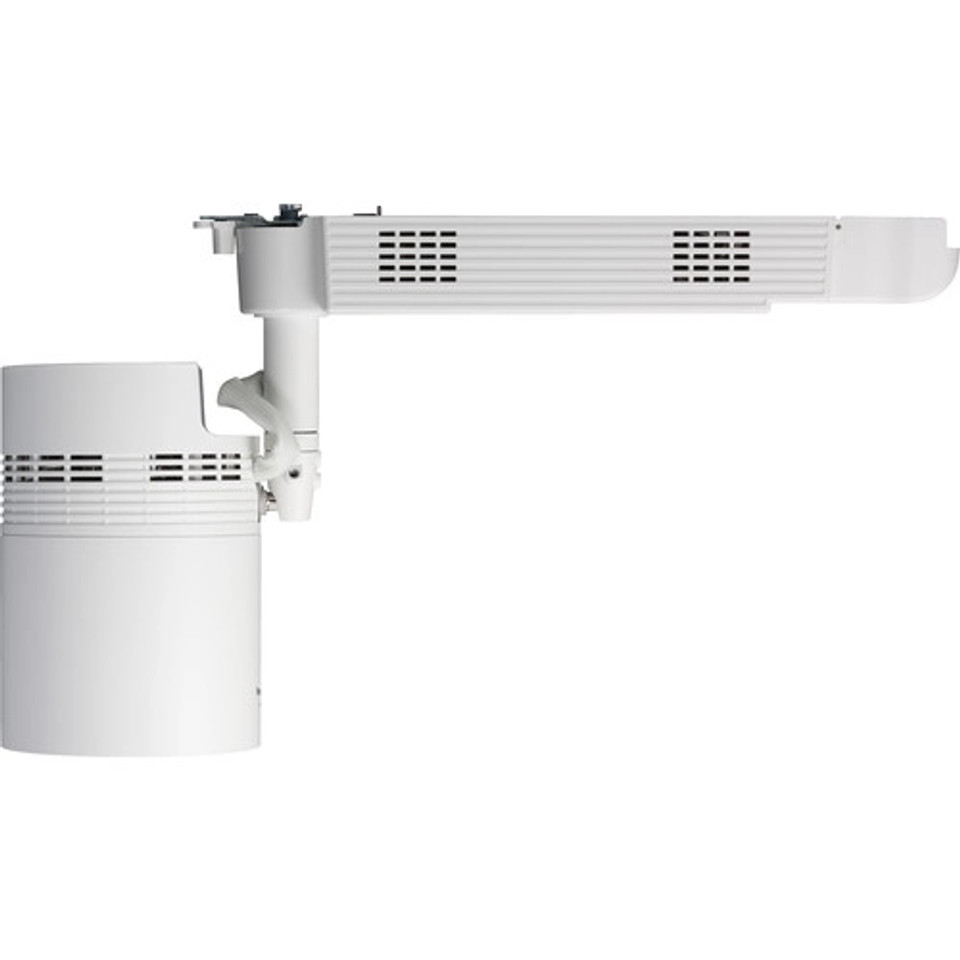

The white PT-JW130H WXGA 1000-Lumen Space Player DLP Projector from Panasonic is a lighting device that combines the functions of traditional lighting and a video projector to offer non-conventional ambient lighting, as well as image projection. You can combine color and motion to help bring attention to your space. Images and text data can be displayed simultaneously and video can be projected with brand logos for dynamic content.
The projector track-mounts and covers all downward directed projections from the horizontal level. The content to be displayed can be directly controlled with buttons 1 to 6 on the remote control. Furthermore, the content can be automatically played according to a preset schedule. Devices can be connected by a wired LAN network for easy simultaneous playback. The CMS (Content Management Software) makes it possible to create the schedule data on a local computer, without connecting to the Space Player.
- Can be track-mounted
- Suitable for spaces that emphasize design
- Projection can cover all downward directions from the horizontal level
- Image input: SD card, HDMI, wireless LAN
- Content to be displayed can be directly controlled with buttons 1 to 6 on the remote control
- Playback is matched to the timing, making it easy to achieve surprise effects
- Content can be automatically played according to a preset schedule
- Devices can be connected by a wired LAN network for easy simultaneous playback
- CMS (Content Management Software) makes it possible to create the schedule data on a local computer, without connecting to the Space Player
- HDMI scanning frequency 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60
Panasonic JW130HWU Specs
Image Display
| Display System | 1-Chip 0.45" DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | VGA @ 60 Hz SVGA @ 56 Hz SVGA @ 60 Hz XGA @ 60 Hz SXGA @ 60 Hz 1280 x 720 @ 50 Hz 1280 x 720 @ 60 Hz 1280 x 768 @ 50 Hz 1280 x 768 @ 60 Hz 1280 x 800 @ 50 Hz 1280 x 800 @ 60 Hz 1600 x 900 @ 50 Hz 1600 x 900 @ 60 Hz |
| Maximum Brightness | 1000 Lumens |
| Contrast Ratio | 1000:1 |
Lens
| Lens | f/2.0 - 2.7 (f = 15.2 - 32.7 mm) |
| Lens Shift | Vertical: + 50% |
| Optical Zoom | Powered: 2.2x |
| Throw Ratio | 1.5 to 3.3:1 |
| Projection Size | 30 - 200" / 76.20 - 508.00 cm |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 40° |
| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Video Input 1 x Ethernet (RJ45) LAN Input/Output 1 x M3 Audio Output 1 x USB 2.0 (USB Type-B) Video Output |
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Lamp Power | 36 W |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 36 dB Low Brightness: 30 dB |
| Power Consumption | Full Brightness: 125 W Standby Mode (Lamp Off): 0.3 W |
| Dimensions (W x H x D) | 8.7 x 5.9 x 8.1" / 22.0 x 15.0 x 20.5 cm |
| Weight | 7.1 lb / 3.2 kg |
