Display System 1-Chip 0.45" DLP
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions VGA @ 60 Hz SVGA @ 56 Hz SVGA @ 60 Hz XGA @ 60 Hz SXGA @ 60 Hz 1280 x 720 @ 50 Hz 1280 x 720 @ 60 Hz 1280 x 768 @ 50 Hz 1280 x 768 @ 60 Hz 1280 x 800 @ 50 Hz 1280 x 800 @ 60 Hz 1600 x 900 @ 50 Hz 1600 x 900 @ 60 Hz
Maximum Brightness 1000 Lumens
Contrast Ratio 1000:1
Lens f/2.0 - 2.7 (f = 15.2 - 32.7 mm)
Lens Shift Vertical: + 50%
Optical Zoom Powered: 2.2x
Throw Ratio 1.5 to 3.3:1
Projection Size 30 - 200" / 76.20 - 508.00 cm
Keystone Correction Vertical: 40 Horizontal: 40
Inputs/Outputs 1 x HDMI (HDMI Type-A) Video Input 1 x Ethernet (RJ45) LAN Input/Output 1 x M3 Audio Output 1 x USB 2.0 (USB Type-B) Video Output
Wireless LAN / Wi-Fi Yes, Built-in
Lamp Power 36 W
Expected Lamp Life Medium Brightness: 20,000 Hours
Fan Noise Full Brightness: 36 dB Low Brightness: 30 dB
Power Consumption Full Brightness: 125 W Standby Mode (Lamp Off): 0.3 W
Dimensions (W x H x D) 8.7 x 5.9 x 8.1" / 22.0 x 15.0 x 20.5 cm
Weight 7.1 lb / 3.2 kg
Panasonic JW130HBU Overview Projection can cover all downward directions from the horizontal level
Panasonic JW130HBU Overview Image input SD card, HDMI, wireless LAN
Panasonic JW130HBU Overview Content to be displayed can be directly controlled with buttons 1 to 6 on the remote control
Panasonic JW130HBU Overview Playback is matched to the timing, making it easy to achieve surprise effects
Panasonic JW130HBU Overview Devices can be connected by a wired LAN network for easy simultaneous playback
Panasonic JW130HBU Overview CMS (Content Management Software) makes it possible to create the schedule data on a local computer, without connecting to the Space Player
Panasonic JW130HBU Overview HDMI scanning frequency 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/60p, 1125 (1080)/50p, VGA/60, SVGA/56, SVGA/60, XGA/60, SXGA/60, 1280 x 720/50, 1280 x 720/60, 1280 x 768/50, 1280 x 768/60, 1280 x 800/50, 1280 x 800/60, 1600 x 900/50, 1600 x 900/60 In the Box, Terminal Cap LAN Terminal Cap Allen Wrench Adapter Adapter Cover Connector Secure Lock String Panasonic JW130HBU Specs Image Display Display System 1-Chip 0.45" DLP

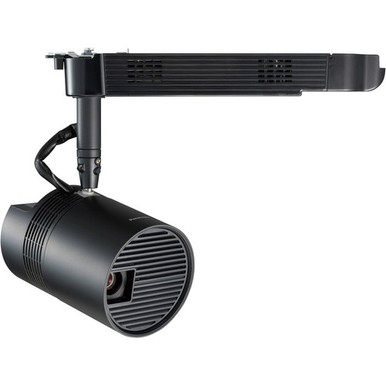

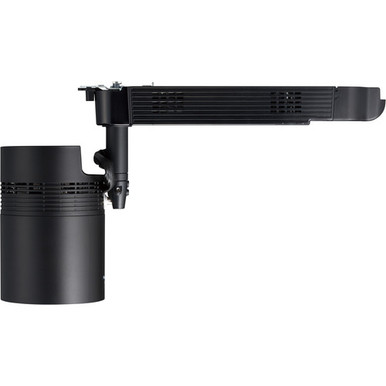

Panasonic JW130HBU Overview Panasonic PT-JW130H WXGA 1000-Lumen Space Player DLP Track-Mount Projector (Black) Remote Control 2 x LR03/AAA Battery
Panasonic JW130HBU Overview Software CD-ROM (Multi Monitoring & Control Software, Wireless Manager) Card Slot Cap
Panasonic JW130HBU Overview Native Chip Resolution 1280 x 800 (WXGA) Supported Resolutions VGA @ 60 Hz SVGA @ 56 Hz SVGA @ 60 Hz XGA @ 60 Hz SXGA @ 60 Hz 1280 x 720 @ 50 Hz 1280 x 720 @ 60 Hz 1280 x 768 @ 50 Hz 1280 x 768 @ 60 Hz 1280 x 800 @ 50 Hz 1280 x 800 @ 60 Hz 1600 x 900 @ 50 Hz 1600 x 900 @ 60 Hz Maximum Brightness 1000 Lumens
Panasonic JW130HBU Overview Contrast Ratio 1000:1 Lens Lens
Lens Shift Vertical + 50% Optical Zoom
Lens Shift Powered 2.2x
Lens Shift Throw Ratio 1.5 to 3.3:1
Projection Size 30 200" / 76.20 - 508.00 cm Features Keystone Correction
Projection Size Vertical 40
Projection Size Horizontal 40 Inputs/Outputs
1 x HDMI (HDMI Type-A) Video Input
1 x Ethernet (RJ45) LAN Input/Output
Projection Size 1 x M3 Audio Output
1 x USB 2.0 (USB Type-B) Video Output
Projection Size Wireless LAN / Wi-Fi Yes, Built-in General Lamp Power 36 W Expected Lamp Life
Projection Size Medium Brightness 20,000 Hours
Fan Noise Full Brightness 36 dB
Fan Noise Low Brightness 30 dB
Power Consumption Full Brightness 125 W
Standby Mode (Lamp Off) 0.3 W
Power Consumption Dimensions (W x H x D) 8.7 x 5.9 x 8.1" / 22.0 x 15.0 x 20.5 cm Weight 7.1 lb / 3.2 kg
SKU PT-JW130HBU
Brand Panasonic
MPN PT-JW130H
GTIN 00885170228504, 885170228504
UPC 885170228504
