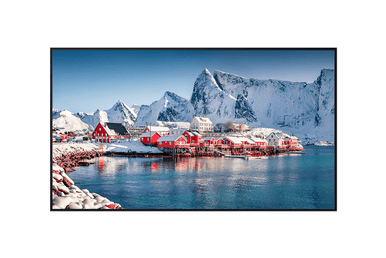

The Panasonic Connect TH-50SQE2W 4K Professional Display is designed for 24-hour continuous operation and crystal-clear viewing clarity. The display provides a brightness of 500cd/m² with an anti-glare panel, and minimum haze treatment of 25%, reducing the reflection of ambient light and vastly improving visibility in all environments. For ultimate flexibility and a clean look without set-top-boxes or cables, the TH-50SQE2W is also equipped with a slot for the Intel SDM specification supporting applications, such as digital signage and broadcasts, using a built-in PC, terminal board, or wireless presentation system.
KEY FEATURES
- High image quality and high legibility suitable for various scenes
- Superb Reliability & Easy Installation
- Various external linkage suitable for conference room and signage applications
specification
DISPLAY PANEL
Screen Size (Diagonal) 50-inch class (1257.3 mm / 49.50 inch)
Panel type / Backlight VA / Direct-LED
Aspect ratio 16:9
Effective Display Area (W x H) 1095.8 x 616.4 mm (43.14" x 24.26")
Resolution (H ｘ V) 3840 x 2160
Brightness (Typ) 500 cd/m2
Contrast Ratio (Typ) 5000:1
Dynamic Contrast Ratio 50000:1
Max. Display Colors Approx. 1.07 Billion
Response Time (Typ) 9.5 ms (G to G)
Viewing Angle (Horizontal / Vertical) 178 ° / 178 ° (CR>10)
Panel Life Time1
(Typ) Approx. 50000 hours
Panel Surface Treatment Anti-glare type (Haze 25%)
CONNECTION TERMINAL
HDMITM IN HDMITM Type A Connector x 4 (HDCP2.2)
DisplayPort IN DisplayPort x 1 (HDCP2.2)
DIGITAL OUT HDMITM Type A Connector x 1 (HDCP2.2)
SERIAL IN Stereo mini jack (Φ3.5 mm) x 1, RS-232C Compatible
IR IN Stereo mini jack (Φ3.5 mm) x 1
AUDIO OUT Stereo mini jack (Φ3.5 mm) x 1
SPDIF x 1
LAN RJ45 x 1 compatible with PJLinkTM 10BASE-T/100BASE-TX/1000BASE-T
USB USB connector TYPE A x 1 : DC5 V / MAX 0.9 A, (USB 3.0 is supported)
USB connector TYPE A x 1 : DC5 V / MAX 0.5 A, (USB 2.0 is supported)
USB connector TYPE A x 1 : DC5 V / MAX 0.5 A, (USB 2.0 is supported) (Internal)
USB connector TYPE C x 1 : DC5 V / MAX 3.0 A, (USB 3.0 is supported, DP Alt Mode)
microSD microSD / SDHC / SDXC / MAX 1TB
Wifi / Bluetooth® Built-in IEEE 802.11 a/b/g/n/ac Dual band Bluetooth® 5.1 with BLE, HID / A2DP
SLOT Intel® SDM specification Corresponding size SDM-S / SDM-L, Supply power 66 W
AUDIO
Built in Speaker 20 W [10 W + 10 W]
ELECTRICAL
Power Requirements AC110-240 V 50 Hz / 60 Hz
Power Consumption 255 W
On Mode Average Power Consumption1 132 W
Power Off Condition 0 W
Stand-by Condition 0.5 W
Apparent power 258 VA
MECHANICAL
Dimension (W x H x D) Not including remote controller sensor 1121 x 646 x 83 mm (44.12" x 25.43" x 3.27")
Dimension (W x H x D) Including remote controller sensor 1121 x 664 x 83 mm (44.12" x 26.14" x 3.27")
Weight 13.7 kg /30.2 lbs
Carton Dimensions (W x H x D) 1215 x 775 x 165mm (47.83" x 30.51" x 6.50")
Gross Weight 19 kg / 41.9 lbs
Cabinet Material Front: Metal, Side / Back: Plastic
Bezel Color Black
Bezel Width T/R/L 10 mm (0.39") B 15.5 mm (0.61")
Pitch for Wall-Hanging VESA Compliant 200 x 200 mm (7.9" x 7.9") (Installed by: M6 screws / Screw hole depth: 10 mm (0.39"), Allowable screw length 24 mm (0.95"))
INSTALLATION
Orientation Landscape / Portrait (clockwise rotation)
Tilting Angle Landscape / Portrait installation 45 degrees forward/backward
ENVIRONMENTAL
Operating Environment Temperature : 0 °C to 40 °C (32 °F to 104 °F)1 : 0 °C to 35 °C (32 °F to 95 °F)2
Humidity : 20% to 80% (No condensation)
MAIN FEATURE
Input search Yes
Multi display settings Yes
Power Management (HDMITM) Yes
Power save Yes
Button Lock Yes
Controller user level Yes
Dynamic backlight control Yes
Timer setting Yes
PJLink Yes
Image settings Yes
USB Media Player Yes
Memory Viewer Yes
Built-in memory function Yes
Data Cloning Yes
Multi Monitoring & Control
Software compatible Yes
AndroidTM OS Yes
HTML5 Browser Yes
Wireless Display Yes
Operating Time1 24h / day
INCLUDED ACCESSORIES
- Remote Control - Batteries (AA Size) x 2
- AC cord x 3 (USA/EU/UK) ( approx. 2 m (78.7"))
- IR sensor x 1 (cable length approx. 1480 mm (4.85 ft))
- IR Sensor Holder x 1 ( Screw x 2)
- RS232C cable x 1 (Approx. 1 m (3.28 ft)) - Clamper x 3
- VESA spacers x 4 (Spacer : H 22 mm (0.87"), Φ 25 mm (0.99"),
Screw : M6 42 mm (1.65"))
(Spacers H 22 mm (0.87") Φ 25 mm (0.99"))
Bluetooth®
Supported version Bluetooth® 5.1 with BLE
Profile HID / A2DP
