Description
Stunning projection with flexible installation

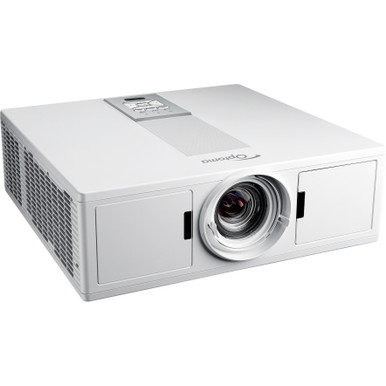

Experience bright 5,000 lumen WUXGA projection with the short throw and lamp-less Optoma ProScene ZU500TST. Laser phosphor technology eliminates the need for lamp and filter replacements for 20,000 hours of low-cost and virtually maintenance-free operation.
Its low weight and quiet operation make it perfect for boardrooms, higher education, houses of worship and smaller entertainment venues. Horizontal and vertical lens shift, four corner correction, 360° and portrait mode operation enable flexible installations.
A variety of inputs, including HDBaseT and HDMI, enable simple connections to a wide variety of video sources. HDBaseT connectivity facilitates easy installations, enabling long cable runs of up to 328 feet for audio, video and control from a single CAT6 cable.
-
- Bright 5,000 lumens and WUXGA resolution
- Four corner correction for simple stacking
- 360° and portrait mode operation
- Up to 20,000 hour light source life
- Short throw projection lens
- Horizontal & vertical lens shift, keystone correction
| Contrast Ratio | 300000:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Speakers | 10.0 W x 2 Mono | |||||||
| Economode | 20,000 hrs | |||||||
| Lamp Life | 20,000 hrs | |||||||
| Native Resolution | 1920 x 1200 | |||||||
| Display Technology | DLP | |||||||
| Aspect Ratio | 16:10 (WUXGA) | |||||||
| Image Size Diagonal | 29.6" - 300.0" | |||||||

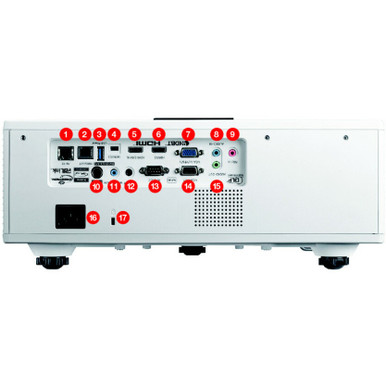

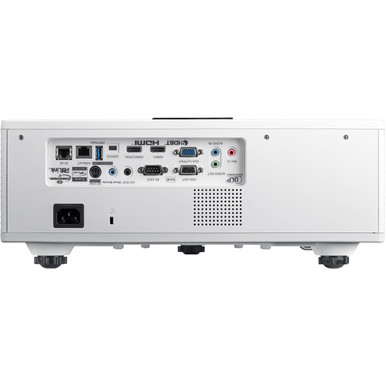

| Inputs | 2x HDMI, VGA, HDBaseT, mic in, audio in, | |||||||
| Lens Shift | Horizontal & Vertical | |||||||
| Outputs | VGA out, audio out, | |||||||
| Data / Video Signals | 720p, 1080i, 1080p/60, 576i, 576p | |||||||
| Digital Keystone | Horizontal & Vertical | |||||||
| Throw Distance | 1.7' - 16.8' | |||||||
| Unit Weight | 24.9 lbs | |||||||
| Lens | 1.6x zoom, f=2.3-3.01mm; f=17.63-31.36mm | |||||||
| Projector Methods | Front, Rear, Ceiling Mount, Table Top | |||||||
| Lumens (ANSI) | 5000 ANSI Lumens | |||||||
| Dimensions (WxDxH) | 6.2" x 15.2" x 15.9" | |||||||
