Description
NEC NP-UM352W Overview
The NP-UM352W 3500L Ultra-Short Throw WXGA Interactive Projector from NEC is a bright 3500-lumen projector that provides a complete interactive solution with a built-in whiteboard function, advanced collaboration capabilities, auto setup, and content delivery over wired or wireless LAN. With its ability to be mounted to the wall directly above the projection screen, this model helps eliminate the shadows and glare typically found with standard projection systems. Any flat surface can instantaneously be transformed into a digital whiteboard where participants can share information and annotations from computers, tablets, and smart phones from within the room or remotely. Concurrently, the NP-UM352W can be used to control and annotate over any PC software, and is compatible with Mac.
20W Audio
Powerful 20 Watt speaker provides volume needed for a large room
Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization
Built-In Closed Captioning
Enables decoding and display of text information from a video
Built-In Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy
Crestron RoomView
Provides unified management, including the ability to switch the power on and off, to multiple projectors connected to a network
Dual Computer Inputs
Ensures quick switching between presentations
Dual HDMI Inputs with HDCP
Ensures quick switching between presentations and allows for simultaneous digital connections of HD sources, such as Blu-ray players, cable boxes, satellite receivers, and computers
ECO Mode
Extends lamp life, lowers audible noise, and reduces total cost of ownership
Image Express Utility Lite with Audio Transfer
Provides wired and wireless data transmission via peer-to-peer or over the network
USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files, from a USB flash drive
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables
Wired Network Connection
Integrated RJ-45 connection for quick connection to the LAN (10/100 Base-T capability)
Wireless LAN (Optional)
Allows you to wirelessly transmit images from a PC to the projector, eliminating the need for unsightly cables
Installation Orientation
Floor/front, floor/rear, ceiling/front, and ceiling/rear options
Regulations
Follows USA UL 60950-1 FCC Class B and C-UL CSA 60950-1 ICES-003 Class B regulations
NEC NP-UM352W Specs
Image Display
| Display System | 0.59" Micro Lens Array (MLA) LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 VGA SVGA XGA WXGA WXGA+ SXGA SXGA+ UXGA |
| Maximum Brightness | 3500 Lumens |
| Contrast Ratio | 4000:1 |
| Scan | Horizontal: 15 to 100 kHz Vertical: 50 to 120 Hz |
Lens
| Focus | Manual |
| Lens | f/1.8 (f = 4.78 mm) |
| Optical Zoom | Manual: 1.4x |
| Throw Distance | 1.47 - 2.8' / 44.806 - 85.344 cm |
| Throw Ratio | 0.36:1 |
| Projection Size | 58 - 110" / 147.32 - 279.40 cm |
Features
| Keystone Correction | Horizontal: ± 10° Vertical: ± 10° |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 20W |
| Closed Captioning | Yes |

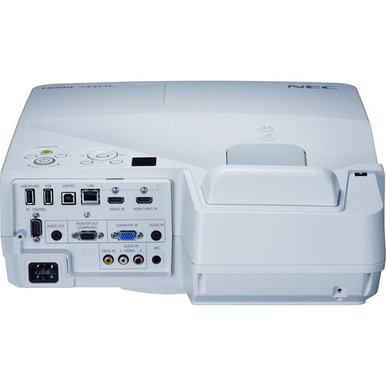

| Inputs/Outputs | 1 x VGA (DE-15/DB-15) Video Input 2 x HDMI (HDMI Type-A) Video Input 1 x USB 2.0 (USB Type-A) Data Input 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x VGA (DE-15/DB-15) Microphone Output 1 x 1/8" / 3.5 mm Mini Microphone Input 1 x Ethernet (RJ45) Control Input 1 x 1/8" / 3.5 mm Mini Control 1 x RS-232 (DE-9/DB-9) Control 1 x USB 2.0 (USB Type-A) Control |
General
| Lamp Power | 255 W |
| Expected Lamp Life | Medium Brightness: 3800 Hours Low Brightness: 6000 Hours |
| Fan Noise | Medium Brightness: 38 dB Low Brightness: 28 dB |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 339 W Low Brightness: 222 W Standby Mode (Lamp Off): 8 W Low Brightness: 0.2 W |
| Dimensions (W x H x D) | 16.9 x 23.3 x 4.4" / 42.9 x 59.2 x 11.2 cm |
| Weight | 12.8 lb / 5.8 kg |
