Description
NEC PX602UL Overview

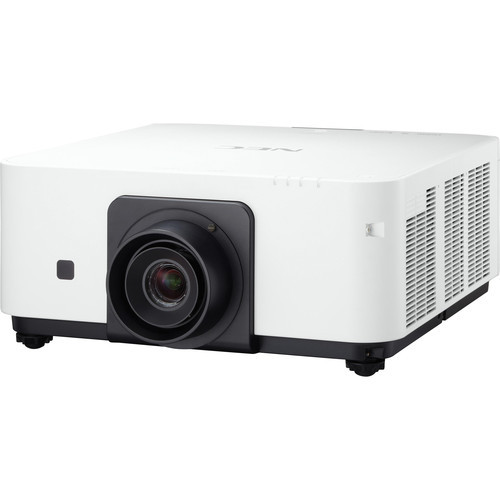

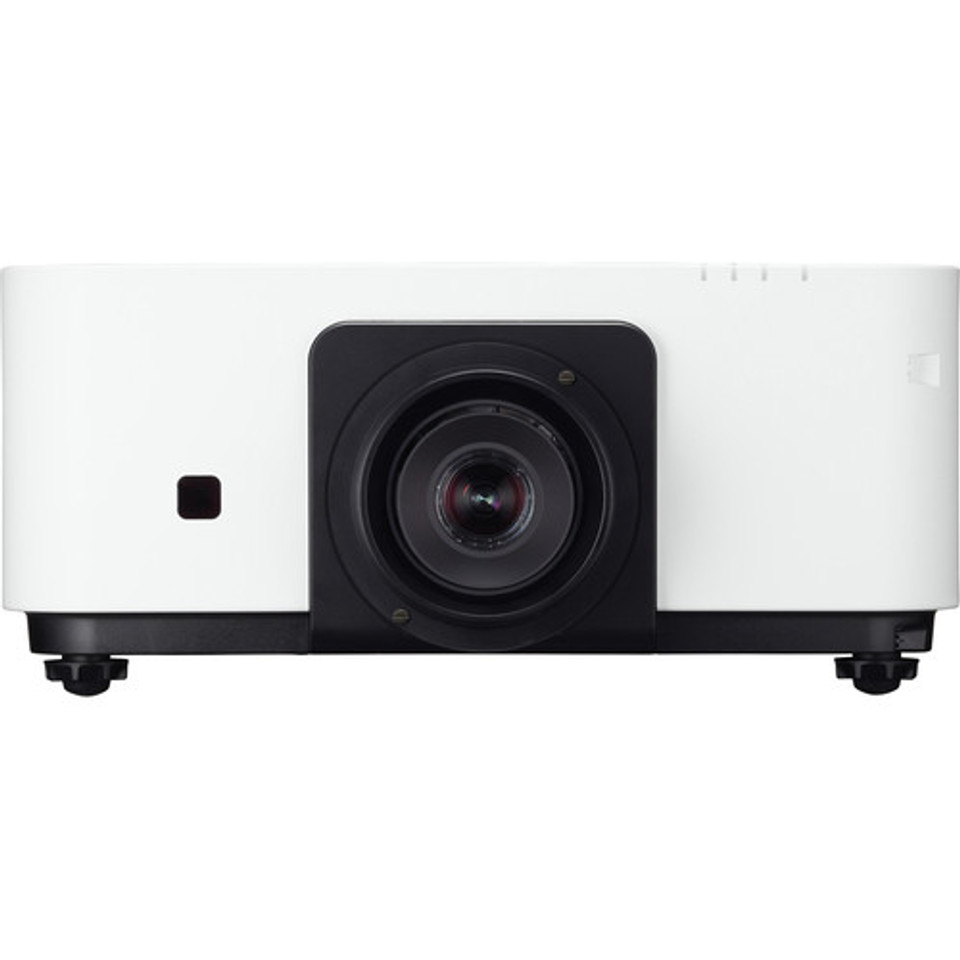

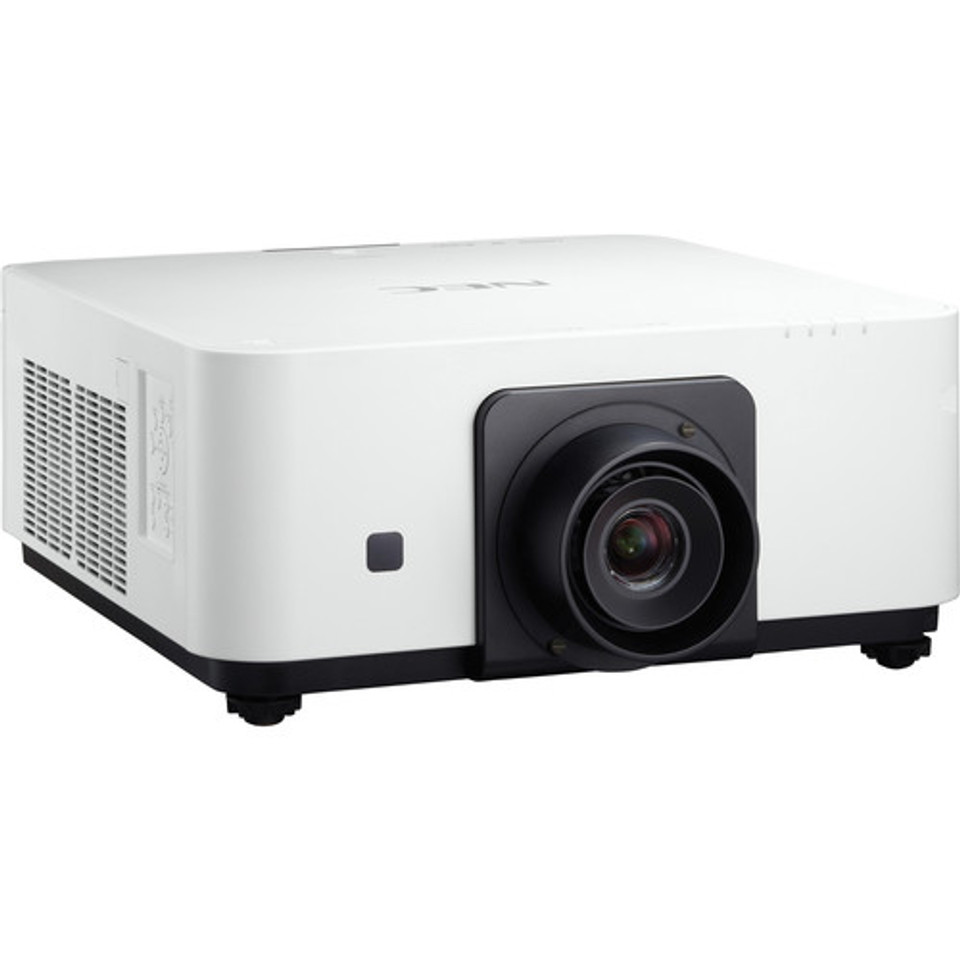

Enjoy high-performance and high-resolution images with the NEC NP-PX602UL-WH 6000 Lumen WUXGA Professional Installation Laser DLP Projector in white. This professional projector features 6000 lumens of brightness and a 10,000:1 contrast ratio with auto iris. Additionally, the NP-PX602UL-WH sports a WUXGA 1920 x 1200 native resolution for viewing detailed high-definition images. This DLP projector is powered by a laser light module, which delivers up to 20,000 hours of life. You can use the NP-PX602UL-WH to project up to a 300" diagonal screen size, making it suitable for large venues. Furthermore, the NP-PX602UL-WH is compatible with a variety of interchangeable NEC lenses.

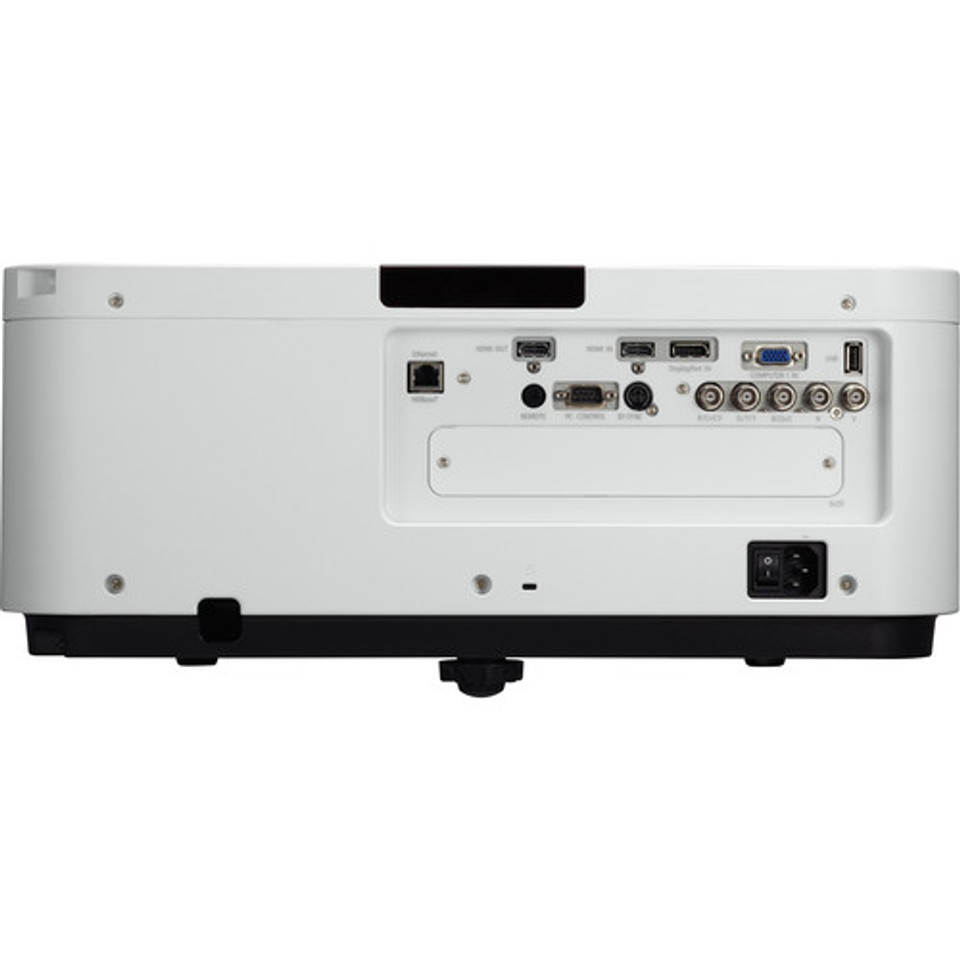

With VGA, DisplayPort, BNC component video, and HDMI inputs, this projector is well equipped for a wide range of external video sources. An HDMI output is also available, which can be used to daisy chain up to 4 projectors. The NP-PX602UL-WH is also equipped with an Ethernet port and supports HDBaseT connectivity. Other features include a 0.5W standby power consumption level, optional ceiling mount compatibility, and 64-step image magnification.
Key Features
- Brightness of 6000 Lumens
- WUXGA 1920 x 1200 Native Resolution
- Interchangeable Lens Design
- Laser Light Delivers Up to 20,000 Hours
- 1 x HDMI / 1 x DisplayPort / 1 x VGA
- TileMatrix and Daisy Chain Support
- 10,000:1 Contrast Ratio with Auto Iris
- Projector Stacking Support
- Tilt-Free Installation Capable
- Built-In HDBaseT Support
Laser Light Module
- Up to 20,000 hours of virtually maintenance-free operation
- High-brightness and low power consumption enhances applications such as retail, digital signage, and theme parks
- Ability to control brightness creating a stable image over longer time periods
Integrated and Powerful
- Project uncompressed Full HD video with integrated HDBaseT
- High performance video processing/scaling is designed to create life-like images
- Integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon and PJ Link allow for complete interactivity and control
- Tile Matrix enables 4Kx2K resolution
Flexible
- Enjoy installation flexibility with a complete line of optional lenses (6 options) for quick and easy exchange
- Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
- +/- 60% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
Screen Splitter
The NP-PX602UL-WH incorporates multi-display and TileMatrix technologies. This processing is all done internally and therefore eliminates the additional hardware typically required to produce a 4K resolution image.
Stacking Correction
This projector incorporates built-in stacking correction, with support for up to 4 projectors. This allows the projectors to boost an image's brightness up to 24000 lumens, which is suitable for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Edge Blending
This function seamlessly blends multiple projected images to display a single high-resolution image.
Built-In HDBaseT Support
HDBaseT is optimized for video applications and supporting uncompressed Full HD digital video, audio, Ethernet, power, and various control signals. With only a single cable (up to 100m) to run, you can increase operating efficiency and reduce cable clutter. With uncompressed HD video support, you can enjoy pristine images. Furthermore, control signals are contained in the same cable
Remote Control
Wired and wireless backlit remote gives you complete control of the projector's menu structure in a well lit or dark environment. Direct controls are also available such as lamp mode, aspect ratio, volume and input selection.
Wall Color Correction Presets
These presets provide adaptive color tone correction to display properly on non-white surfaces.
Cornerstone
Enhanced keystone correction allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
3D-Ready
When combined with optional active shutter glasses and a 3D emitter, this projector can create 3D images from a computer or Blu-ray player. The NP-PX602UL-WH has a 3D sync line output to connect to the 3D emitter.
Geometric Correction
Geometric correction allows the NP-PX602UL-WH to project an image on spheres, cylinders, corner angles and other non-standard surfaces.
Tilt-Free Design
The projector can be rotated freely (360°) to orient the image depending on the installation requirements.
Portrait Mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
3D Reform
3D Reform allows you to square the image by adjusting it horizontally, vertically, or diagonally when the projector cannot be placed parallel or perpendicular to the screen.
Virtual Remote
Used via a network connection (wired/ wireless), you can control the projector directly from a computer without the need for additional control cables.
Variable Audio-Output
Variable audio-out enables the remote control to be used to adjust volume of self-powered external speakers that are connected to the projector. In stand-by mode, the audio-out stays active, allowing the last input used to pass to the self-powered external speakers.
Advanced AccuBlend
Advanced AccuBlend helps to ensure detailed image quality when non-native resolution sources are connected to the projector.
AutoSense
AutoSense automatically syncs with any computer signal and features one-touch image optimization.
Remote Diagnostics
Remote diagnostics enable the user to monitor and make adjustments to the projector remotely.
Built-In HTTP Page
Built-in HTTP page enables control and monitoring over a LAN network. Email notification of error messages or lamp end-of-life can be sent to remote locations.
Additional Features
- Dual computer inputs ensure quick switching between presentations
- Supports NEC NP33ZL, NP34ZL, NP35ZL, NP36ZL, NP37ZL, and NP38ZL lenses
- Discrete source keys for source selection
- 64-step image magnification with location control
- Compatible with an optional input cover panel
NEC PX602UL Specs
Image Display
| Display System | 1-Chip 0.67" DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | WUXGA - 1920 x 1200 UXGA - 1600 x 1200 SXGA+ - 1400 x 1050 SXGA - 1280 x 1024 XGA - 1024 x 768 SVGA - 800 x 600 VGA - 640 x 480 |
| Maximum Brightness | 6000 Lumens |
| Scan | Horizontal: 15 to 108 kHz Vertical: 48 to 120 Hz |
Lens
| Focus | Manual |
| Lens Shift | Vertical: ± 60% Horizontal: + 15% |
| Throw Distance | 3.3 - 65.5' / 1.006 - 19.964 m |
| Projection Size | 50 - 300" / 127.00 - 762.00 cm |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 40° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 39 dB Low Brightness: 34 dB |
| Security | Cable Lock Slot |
| Power Consumption | Medium Brightness: 590 W Low Brightness: 460 W Standby Mode (Lamp Off): 6 W Standby Mode (Lamp Off): 0.5 W |
| Dimensions (W x H x D) | 19.1 x 8.5 x 22.6" / 484.0 x 217.0 x 575.0 mm |
