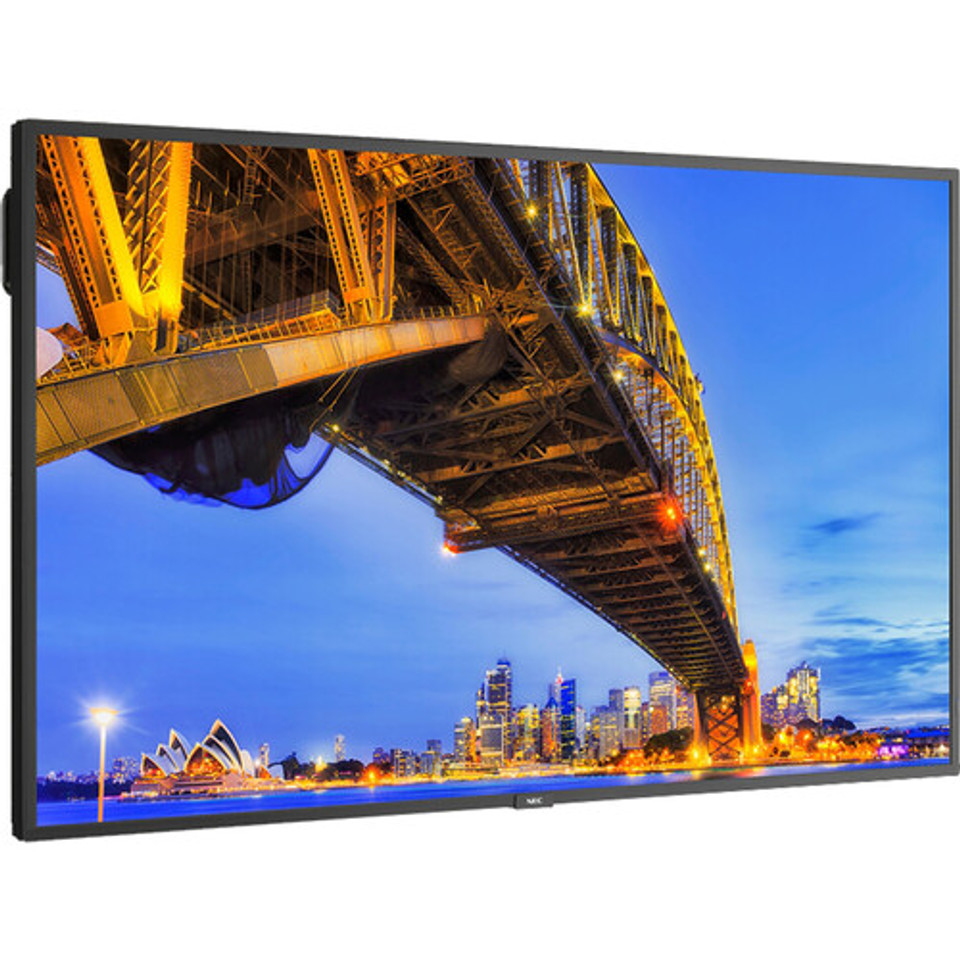

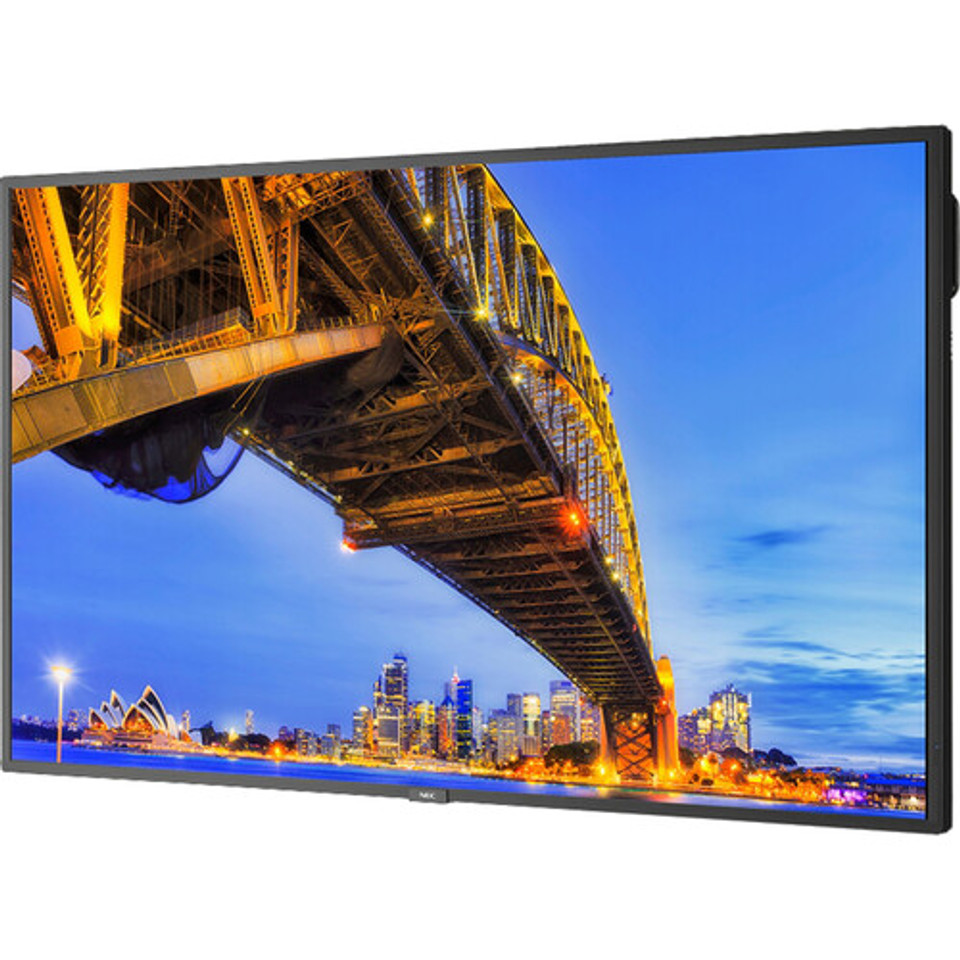

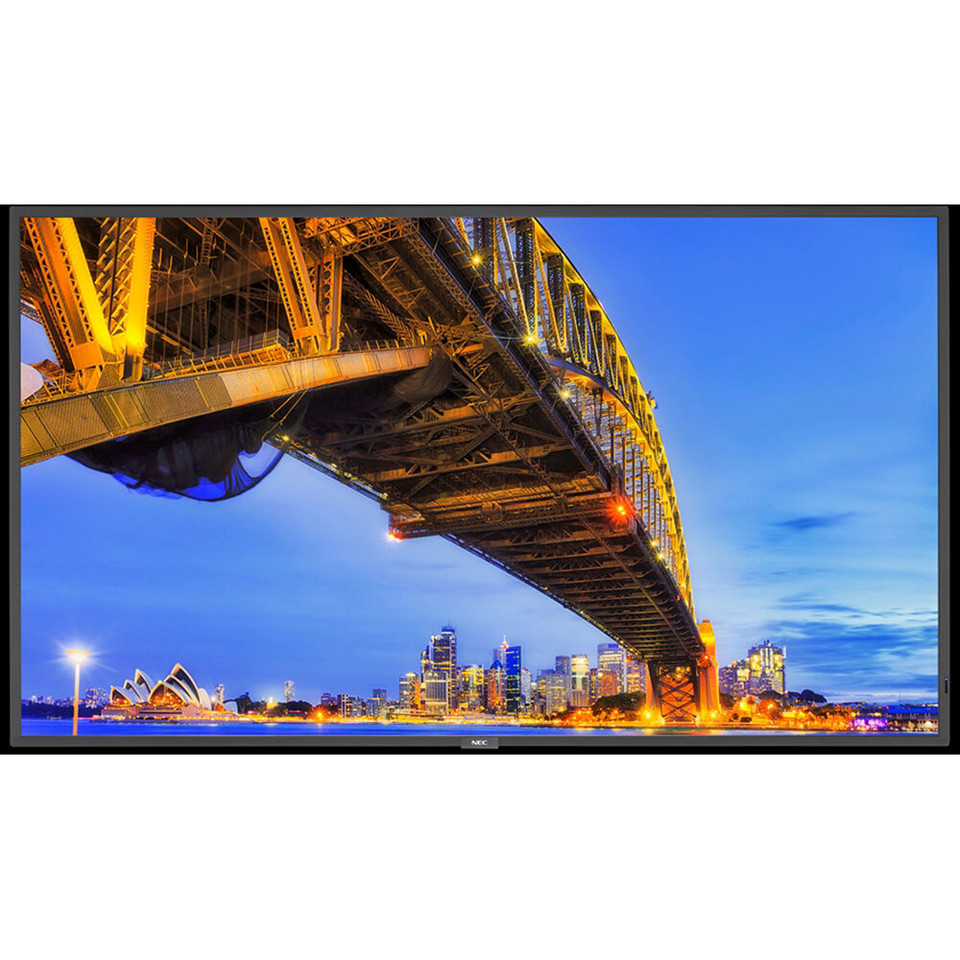

NEC ME431-AVT3 43"-Class 4K UHD Commercial IPS LED Display with ATSC Tuner

NEC ME431 Overview

NEC ME Series Large Format Displays: Focused Design, Meaningful MessagingSharp NEC Display Solutions – Message Family of Large Format Displays (ME • M • MA Series)

Specifications:

Display

Panel Technology	IPS	Viewable Image Size	43 “
Aspect Ratio	16:9	Native Resolution	3840×2160
Supported Resolutions	DIsplayPort: V1.2 (HDCP 1.3/2.2)VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840×2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096×2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz)HDMI (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920×1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840×2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)),4096×2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2))	Pixel Pitch	0.25 mm
Pixels Per Inch	104 @ native resolution	Backlight Type	LED Direct-lit
Brightness (typical)	400 cd/m2	Contrast Ratio (typical)	≥8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10	Response Time (Gray to Gray)	8 ms
Refresh Rate	60Hz	Active Screen Area	37.0 x 20.8 in. / 941.2 x 529.4mm

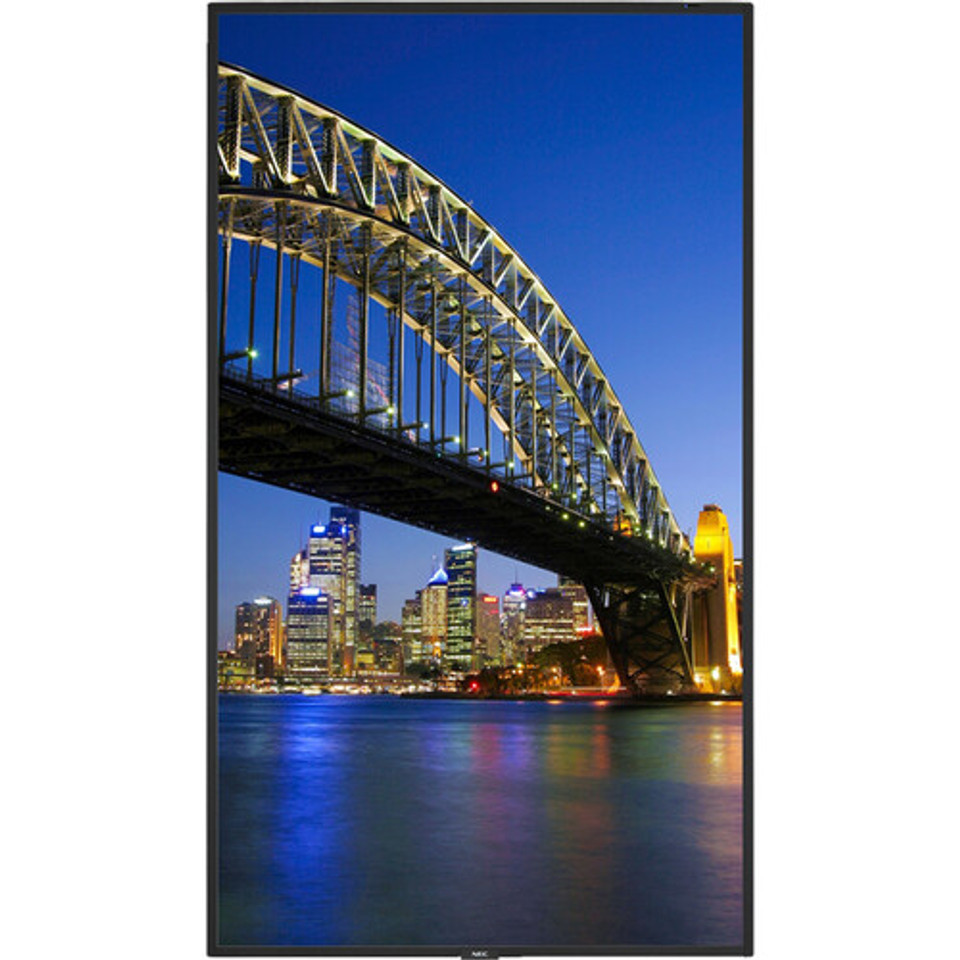

Orientation	Landscape/Portrait	Dimming Capability	Local Dimming Capable
Displayable Colors	More than 1.08 billion (8-bit+FRC)	Color Temperature (Max) (°K)	10000K
Color Temperature (Min) (°K)	2600K	Gamma (Typical)	Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

Synchronization Range

Horizontal (Analog/Digital)

Digital: 26.0 – 135.0kHz

Vertical

Digital: 23.0 – 86.0Hz

Input Signal

Video

Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility	Yes	Macintosh Signal Compatibility	Yes
Video	Digital TMDS / DisplayPort	External Control	LAN and RS232 In – Full external control capabilities

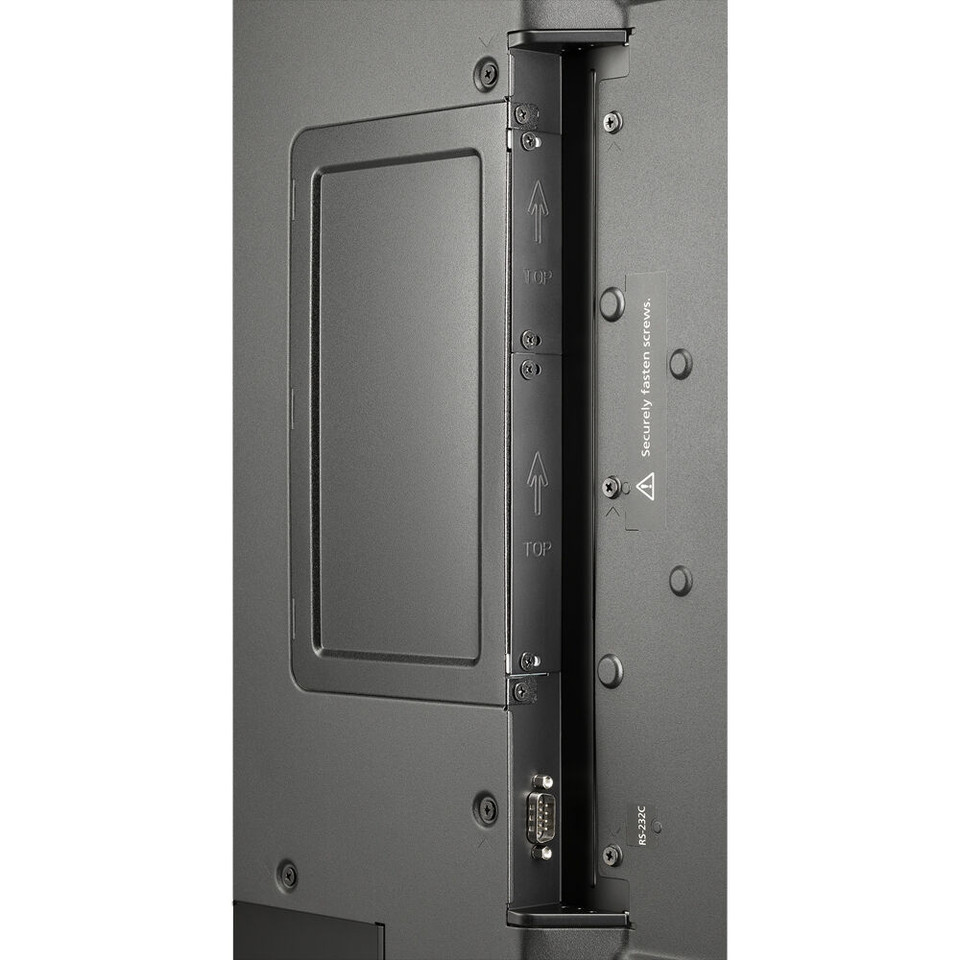

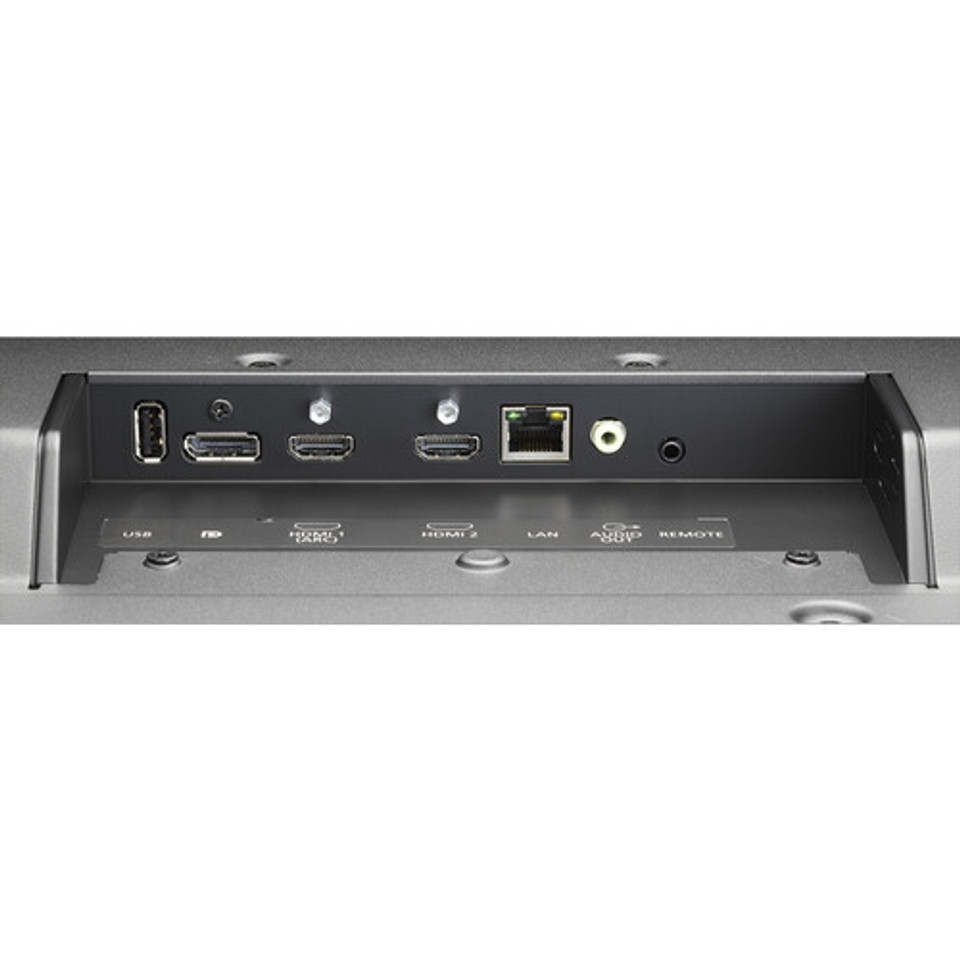

Input Terminals Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP) Audio: DisplayPort Audio, HDMI Audio x2 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player)		Output Terminals Audio: 3.5mm Mini-Jack

Power Consumption (typical)

On	80W	ECO Mode Standby	<0.5W
Network Standby	0.5W	Power Consumption (max)	95W (Max Brightness), 175W (Brightness Max, SDM Max, Volume Max)
Power Savings Mode	2 W	Power Requirements	1.9A @ 100V, 0.8A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)	0.55 in./0.55 in., 0.55 in./0.55 in. : 13.9 mm/13.9 mm, 13.9 mm/13.9 mm	Dimensions (WxHxD) Without stand: 38.3 x 22.1 x 2.5 in. / 973 x 561.2 x 62.6 mm Shipping: 44.7 x 27.7 x 6.8 in. / 1136.0 x 704.0 x 172.0mm
Weight Net Weight (without stand): 30.6 lbs. / 13.9 kg. Shipping: 43.2 lbs. / 19.6kg		VESA Hole Configuration	200 x 200mm (M6 x 4-hole)

Environmental Conditions

Operating Humidity	20 – 80%	Operating Altitude	9843 ft. / 3000m
Storage Temperature	-4-140°F / -20-60°C	Storage Humidity	10-80%
Storage Altitude	40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR

Energy Star 8.0

Limited Warranty (parts & labor)

3 years Advanced Exchange

Additional Features

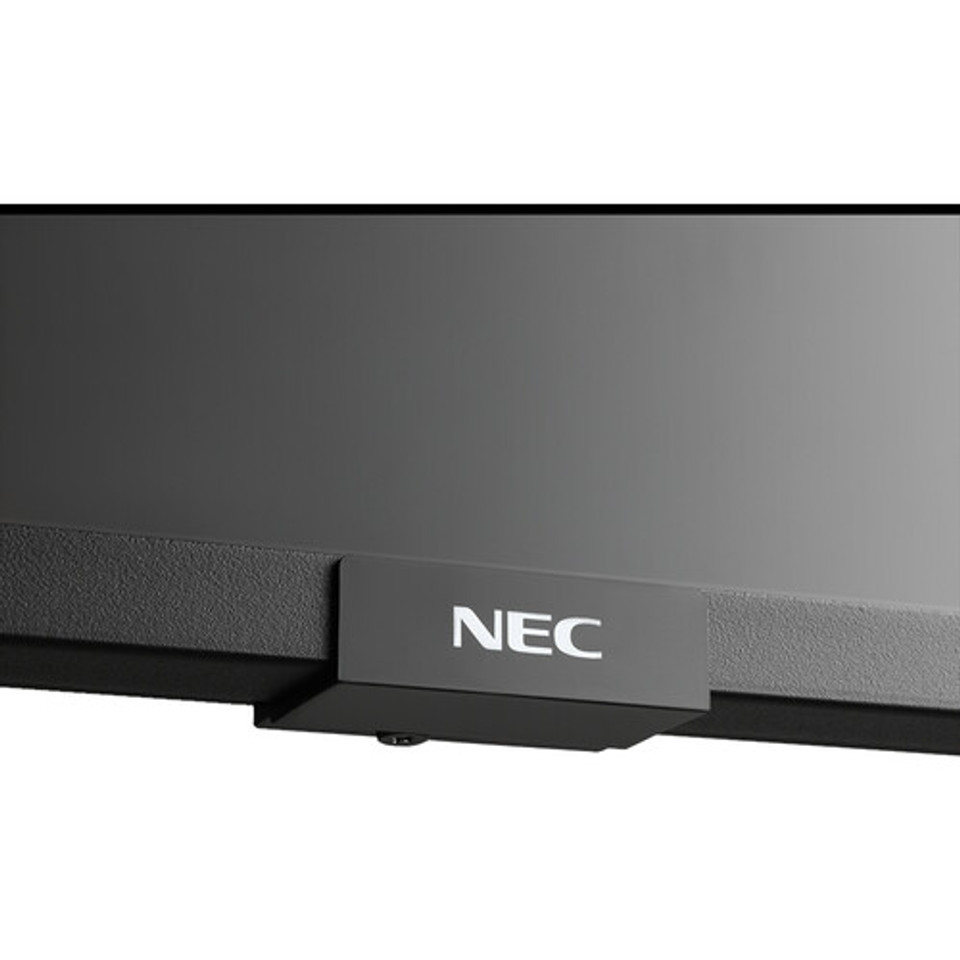

AMX Support Automated Email Alert Function CEC Support through HDMI Crestron Roomview Support (FW Update) Display Browser Control Display Wall Calibrator Compatible HDR Support (PQ, HLG, HDR10) Key Guide NaViSet Administrator 2 Compatible OSD Rotation for Portrait Orientation Accepts Intel(R) SDM-S or SDM-L PJ Link Support Power USB Port (5V/2A) Raspberry Pi Compute Module 4 Compatible (Q2 2020) Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix Cisco Webex Compatible SNMP Consumer Electronics Control (CEC) Integrated USB Media Player Integrated Temperature sensor Full Input Detect Functionality Programmable Gamma Energy Star 8.0 Scheduler Function Off Timer Vacation Switch
