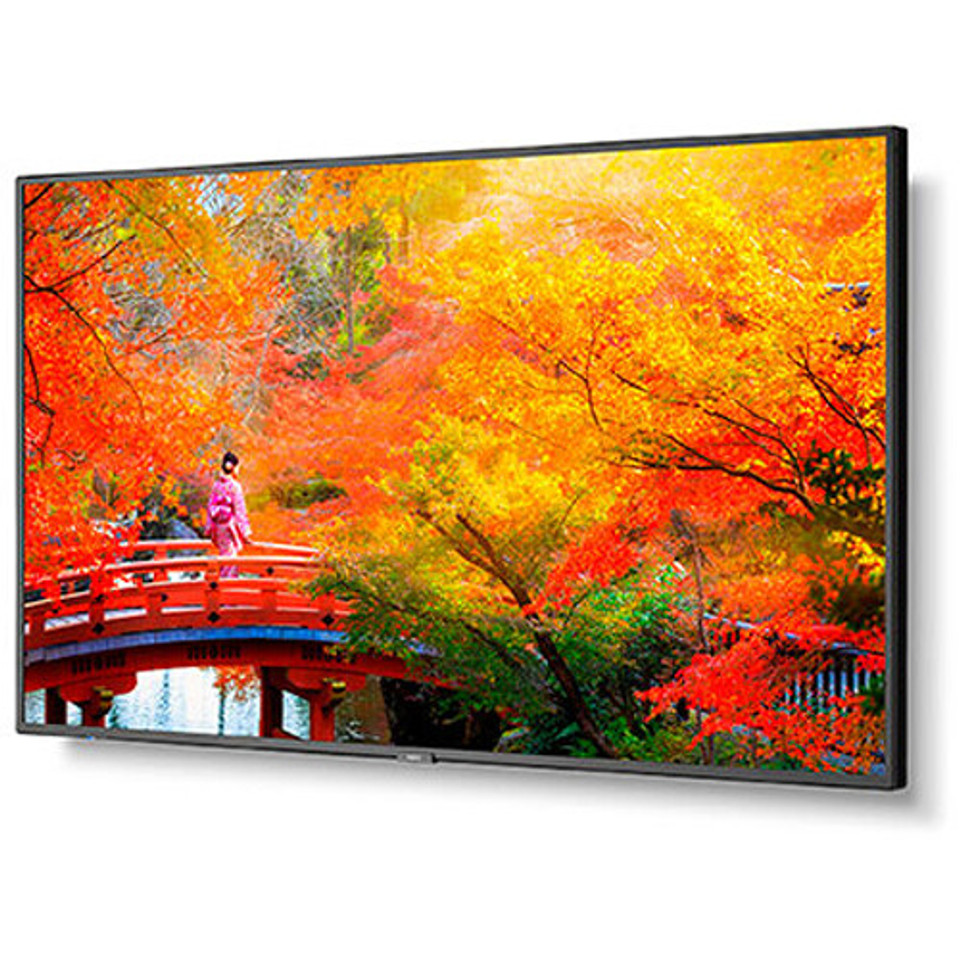

NEC MultiSync MA491 49" Class HDR 4K UHD Digital Signage IPS LED Display

(No reviews yet) Write a Review
SKU:
MA491
UPC:
805736072815
MPN:
MA491
Condition:
New
Shipping:
Free Shipping
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
  • NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display
$1,399.00
Frequently bought together:

Description

NEC MA491 Overview

Advertise your product or business digitally with the NEC MultiSync MA 49" Class HDR 4K UHD Digital Signage IPS LED Display. It features 500 cd/m² of brightness with an 8000:1 contrast ratio to help enhance visibility in bright environments. It has two HDMI and two DisplayPort inputs for digital HD video sources, and a computer module can be installed to expand the display's functionality. It can be installed in either portrait or landscape orientation to accommodate your specific signage needs.

Key Features

  • 4K UHD (3840 x 2160) Native Resolution
  • 8 ms Response Time / 60 Hz Refresh Rate
  • 500 cd/m² Brightness
  • 8000:1 Contrast Ratio
  • 2x HDMI 2.0 & 2x DisplayPort 1.4 Inputs
  • HDMI & DisplayPort Output
  • Computer Module Expansion Slot
  • Portrait/Landscape Orientation
  • Ethernet & RS232 Controllable
  • Digital Signage Capable

Masterfully Crafted for Impactful Messaging

Create pixel-perfect imagery with the high-end panel quality of the fully commercial NEC MA series large format display. By implementing premium features and focusing on creating impressionable digital signage experiences, the MA series gives customers an elite display option. With its one-of-a-kind wide color gamut commercial panel coupled with the proprietary SpectraView Engine capabilities, these displays offer more color capabilities than ever before. On top of that, these products allow customers modular capabilities to customize their product based on their needs and applications. The new series contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC MA series boasts 500 cd/m² brightness, which is ideal for a majority of high-end digital signage applications in restaurants, command-and-control, retail, museums, and corporate environments when high-end and feature-rich displays are necessary to convey important messaging.

High-End 4K UHD Picture Quality

By supporting native 3840 x 2160 resolution with HDR compatibility across the entire MA series lineup, imagery and messaging can become more vivid and lifelike than ever before.

Full Commercial Build

The full metal chassis allows for the ruggedness needed for true commercial environments, while integrated carrying handles reduce the likelihood of damage during installation. On top of that, integrated temperature sensors and active cooling fans ensure that the display remains cool and at a constant brightness output in order to maintain professional level image output.

Wide Color Gamut Panel

The new MA series products contain fully commercial Wide Color Gamut panels allowing for a broader range of viewable colors when compared to a traditional commercial grade panel. This, coupled with NEC's SpectraView Engine technology, allows customers to have complete color control over their panel for industry-leading customization and control.

Enhanced Daisy Chain Capabilities

All MA series displays contain the ability to directly daisy chain both the HDMI and DisplayPort input signals. The DisplayPort daisy chain is enhanced due to DisplayPort 1.4 connectivity and HBR3 capabilities. This allows for Multi-Stream Transport capabilities that can drive up to four independent displays (depending on the video card driving the system) from a single DisplayPort source by multiplexing several video streams into a single stream and sending it to the display that then acts as a branch device to demultiplex the signals into the original streams. This allows for up to four independent content pieces to be driven off a single source – ideal for menu-board and retail applications.

Multi Picture Mode

NEC MultiSync MA series displays can support multiple simultaneous images through Multi Picture Mode. This, in conjunction with SpectraView Engine technology, can allow for each separate image to even have different defined color settings if necessary. This means that each part of the display can be optimized for the type of content that's being displayed.

Input Detect Functionality

This feature allows for the customer to prioritize up to three inputs, so that if a primary source goes down, the display will automatically switch to whatever the customer has prioritized next. The first detect option also allows for the display to automatically turn onto any source that plugs into it, allowing the display to wake on any synced signal.

Round-the-Clock Scheduler

This scheduler allows for advanced scheduling of monitor power up/down, increasing panel lifetime, reducing power consumption, and saving the time and expense of finding and purchasing a third-party scheduling solution.

Human Sensor

Upon sensing movement, this sensor allows for automatic adjustment to certain settings and features in the display, which can lead to targeted messaging for dual-purpose display in digital signage or presentation applications.

Cisco Compatible Partner

The optional Cisco WebEx Kit is a professional video conferencing tool that has everything integrated into a single soundbar, including microphone(s), camera(s), the speaker, and the video conferencing codec. This, combined with the large format NEC displays, provide the ultimate conferencing solution.

Professional Modularity

The MA series gives customers everything they need for their digital signage application while also offering the ability to enhance their screen through multiple integrated professional technologies. The MA Series accepts Intel Smart Display Modules Large or Small through clever mechanical and electrical design, allowing for sleek all-in-one intelligence and interoperability in a small form factor setting. This allows for the flexible implementation of Intel processor-based products directly into the display without having to deal with the hassles of mounting external devices and running video or audio cabling. Audio, video, control, and power signals are all internal from the Intel SDM through to the display, simplifying installations and allowing for clean and easy setup.

The MA series also expands on the success of earlier display lineups by allowing for the optional implementation of a Raspberry Pi Compute Module 4 directly into each display. The Raspberry Pi Compute Module 4 greatly outperforms previous versions by offering gigabit network speeds, faster CPU processing, and true 4K support. The new version also comes imaged with the new and user-friendly NEC Mediaplayer. Through an intuitive user-interface, the NEC Mediaplayer allows you to load, schedule, and edit playlists, access internal storage, access online media through an internal browser, or even image the RPi to qualified CMS partner platforms – all through the supplied NEC remote control or remotely through a web-interface.

NaViSet Administrator 2

This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of NEC display devices and Windows computers. It is ideal for multi-device installations over arrays as it allows for task management, reporting, and on-demand control options. Control your entire NEC ecosystem through this free optional asset management software.

Additional Features

  • 3000 to 15,000K color temperature
  • Local dimming capable
  • Custom gamma adjustment from 0.5 to 4 in 0.1 increments
  • ENERGY STAR 8.0
  • AMX Support
  • Automated email alert function
  • ARC support through HDMI
  • Crestron RoomView support (FW update)
  • Display browser control
  • Display wall calibrator compatible
  • PQ HDR support
  • Key guide
  • OSD rotation for portrait orientation
  • PJ Link support
  • Power USB Port (5V/2A)
  • Removeable logo ornament
  • Real time clock
  • TileMatrix
  • SNMP
  • Consumer Electronics Control (CEC)
  • Pivot feature through G-Sensor
  • Multi Picture Mode (up to four simultaneous images)
  • Full input detect functionality
  • Programmable gamma
  • Color Vision emulation
  • 6-axis color trim
  • Uniformity adjustment
  • Off timer
  • Vacation switch
  • Wall mount or tabletop stand required and available separately

NEC MA491 Specs

Display

Screen Size (Diagonal) 49"
Resolution 3840 x 2160
Supported Display Resolutions Maximum: 7680 x 4320 / 30 Hz
Panel Type IPS-Type LCD
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Color Gamut 86% DCI-P3
HDR Compatibility HDR10, Hybrid Log Gamma
Brightness 500 cd/m² (Typical)
Viewing Angle (H x V) 178 x 178°
Aspect Ratio 16:9
Contrast Ratio 8000:1
Response Time 8 ms (GtG)
Refresh Rate 60 Hz
Horizontal Frequency 15 to 135 kHz (Digital)
Vertical Frequency 23 to 76 Hz (Digital)
Dot Pitch 0.28 x 0.28 mm
Pixels Per Inch (ppi) 89 ppi
Backlighting Technology Edge LED

Connectivity

Primary Connectivity Location Display
Input Ports 2 x HDMI 2.0 – Audio, Video (Bottom)
2 x DisplayPort 1.4 – Audio, Video (Bottom)
Output Ports 1 x HDMI – Audio, Video (Bottom)
1 x DisplayPort – Audio, Video (Bottom)
1 x 1/8" / 3.5 mm – Audio (Bottom)
1 x Speaker Terminal – Audio (Bottom)
USB Ports 1 x USB 2.0 Type-A - Audio/Photo/Video/Power (Bottom)
1 x USB 2.0 Type-A - Service (Bottom)
1 x USB (Version Unspecified) Type-B - Service (Bottom)
Ethernet Ports Bottom: 2
Control RS-232C via DE-9/DB-9 Input
IR via 1/8" / 3.5 mm Input
Digital Media Slot None
Number of OPS/Expansion Slots 1

General

TV Tuner No
Display Orientation Landscape, Portrait
Ambient Light Sensor Yes

Surface

Haze Level 28%

Audio

Built-In Speakers None
External Speaker Output 2 x 15 W

Electrical

Power Consumption Typical: 85.0 W
Maximum: 245.0 W
Network Standby: 2.0 W
Standby: < 0.5 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.1 to 2.7 A

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 10 to 80%
Operating Altitude 9842' / 3000 m
Storage Altitude 40,000' / 12,192 m

Physical

Wall Mounting 300 x 300 mm
IR Sensor Yes
Bezel Thickness 12.5 mm (Right/Left)
12 mm (Top)
15.6 mm (Bottom)
Dimensions 43.4 x 25.0 x 2.6" / 1103.4 x 636.2 x 66.1 mm
Weight 50.5 lb / 22.9 kg

Packaging Info

Package Weight 62 lb
Box Dimensions (LxWxH) 51 x 33.5 x 8.63"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
