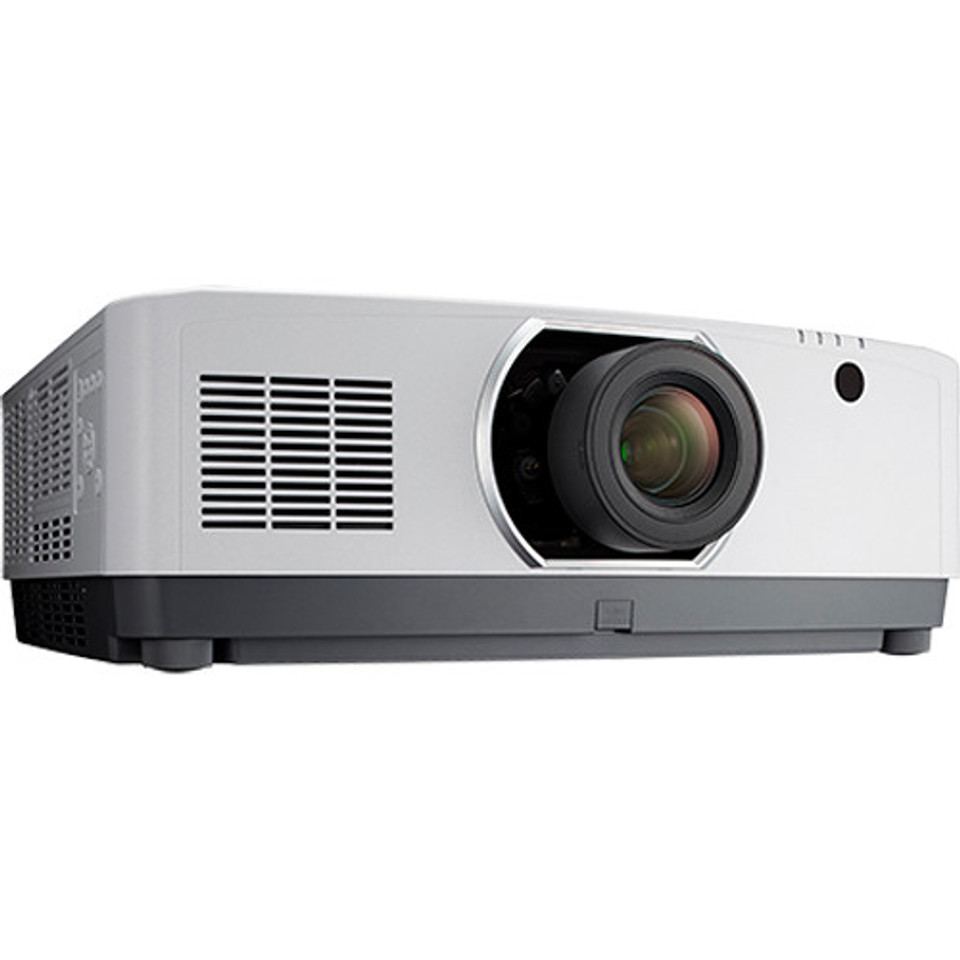

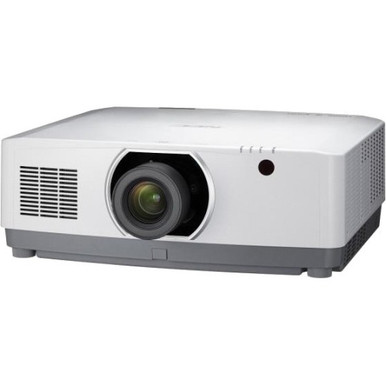

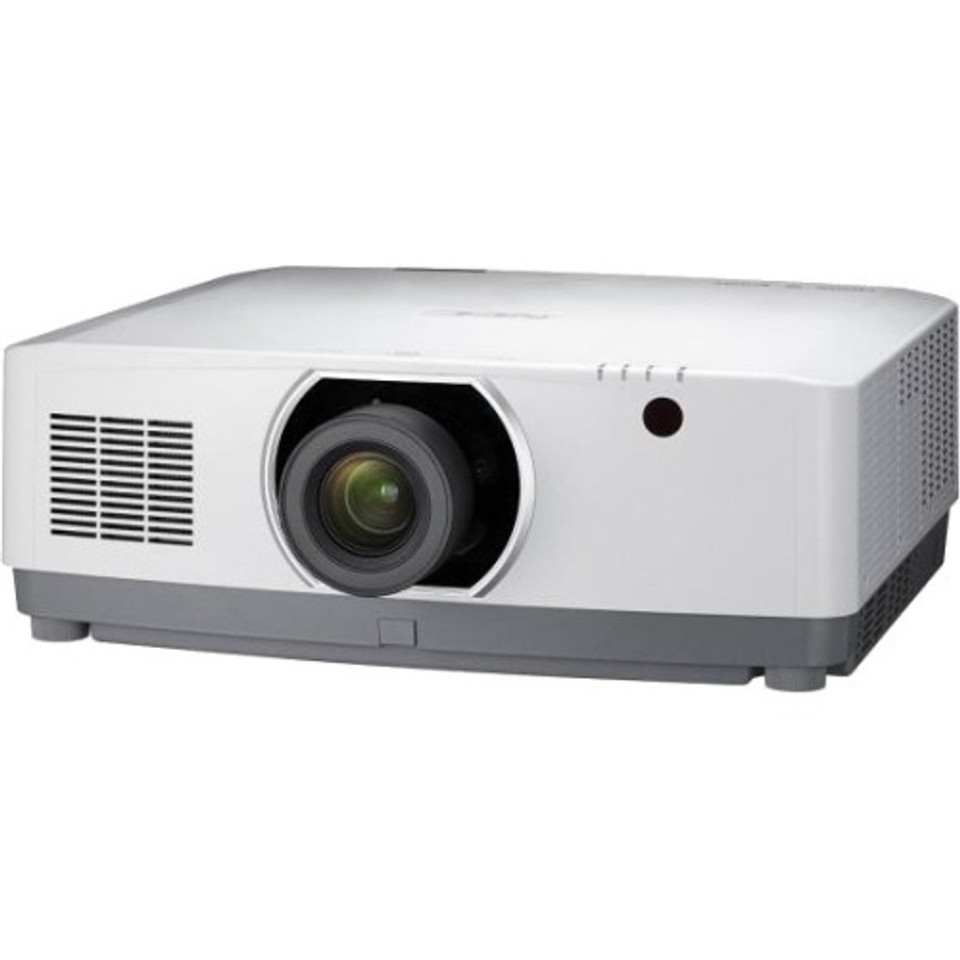

NEC NP-PA803UL 3D WUXGA LCD Projector

NEC NP-PA803UL-41ZL Overview

The 8000-Lumen Laser Installation Projector from NEC uses the 0.76″ LCD with MLA (Micro Lens Array) display technology to offer a maximum resolution of 4096 x 2160. It features the NP41ZL lens that has a focal length of 21.8-49.7mm and supports HDR10 and BT.2020 signals from Ultra HD Blu-ray and 4K TV broadcasting on all digital inputs. The projector comes with integrated software applications such as DisplayNote, Crestron Roomview, AMX Beacon, Extron XTP, and PJ link for complete interactivity and control.

The HDBaseT input and optional HDBaseT repeater provide a single connection for uncompressed full HD digital video, audio, Ethernet power, and various control signals. The Direct Power-Off function protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It allows the fan to continue running until the lamp is properly cooled down. The internal sensors monitor lamp temperature and prevent the lamp from powering on.

• TileMatrix enables 4Kx2K resolution utilizing four projectors via HDBaseT loop out

• 4K ready

• NP41ZL 21.8-49.7mm varifocal lens with a throw ratio of 1.3-3.02:1

• Motorized zoom and focus

• Manual Keystone correction

• 3D stereo

• Quick power-on and power-off

• DICOM simulation

• Edge blending allows you to blend multiple projectors together to create non-standard images

• Stacking

• Virtual Remote

• DisplayNote

• NaViSet Administrator 2

• Picture-in-Picture

• AccuBlend ensures detailed images when non-native resolution sources are connected to the projector

• AutoSense intuitively syncs the projector with most computer signals and features one-touch image optimization

• Built-in Wall Color Correction: Presets provide for adaptive color tone correction to display properly on non-white surfaces

• Cornerstone Correction: Allows for horizontal, vertical, and diagonal image correctionS for aligned images even when the projector is set up at an angle to the screen

• Crestron Roomview: Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network

• Dual computer inputs ensure quick switching between presentations

• Dual HDMI inputs (with HDCP): Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources such as Blu-ray players, cable boxes, satellite receivers, and computers

• ECO Mode extends lamp life and lowers audible noise

• Geometric correction allows you to project on spheres, cylinders, corner angles and more

• Landscape/portrait capable

• Vertical and horizontal lens shift enables flexible projector placement

• Long life power consumption of 285 W (100 to 130 VAC and 200 to 240 VAC)

NEC NP-PA803UL-41ZL Specs

Image Display

Display System	1-Chip 0.76″ Micro Lens Array (MLA) LCD
Native Chip Resolution	1920 x 1200 (WUXGA)
Supported Resolutions	Maximum: 4K UHD – 4096 x 2160
Maximum Brightness	8000 Lumens
Aspect Ratio	16:10
Dynamic Contrast Ratio	2,500,000:1
Scan	Horizontal: 15 to 100 kHz Horizontal: 15 to 153 kHz Vertical: 48 to 120 kHz Vertical: 24 to 120 kHz

Lens

Focus	Auto
Lens	f/1.7 – 2 (f = 21.8 – 49.8 mm)
Lens Shift	Horizontal: ± 0.3% Vertical: -.1 + 0.5%
Throw Distance	54 – 1285″ / 1.372 – 32.639 m
Throw Ratio	1.3 to 3.02:1
Projection Size	50 – 500″ / 127.00 – 1270.00 cm

Features

Keystone Correction	Horizontal: ± 40° Vertical: ± 40°
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP)
Ceiling Mountable	Yes
Inputs/Outputs	1 x VGA (DE-15/DB-15) Video Input 2 x HDMI (HDMI Type-A) Video Input 1 x DisplayPort Video Input 1 x HDBaseT (RJ45) Video Input 1 x HDBaseT (RJ45) Video Output 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-A) Data 1 x DE-9/DB-9 Video Input

General

Lamp Power	798 W 774 W 604 W 592 W 470 W 464 W
Expected Lamp Life	Medium Brightness: 20,000 Hours
Fan Noise	Medium Brightness: 39 dB Low Brightness: 33 dB
Security	Password Protection
Supported Languages	Danish Dutch English French Indonesian Italian Malaysian Polish Romanian Spanish Swedish Traditional Chinese
Dimensions (W x H x D)	22.8 x 8.2 x 19.5″ / 579.1 x 208.3 x 495.3 mm
Weight	40.2 lb / 18.2 kg

Packaging Info

Package Weight	67 lb
Box Dimensions (LxWxH)	35.5 x 30.25 x 22.75″
