LANDSCAPE 2D BARCODE SCANNER, BLACK

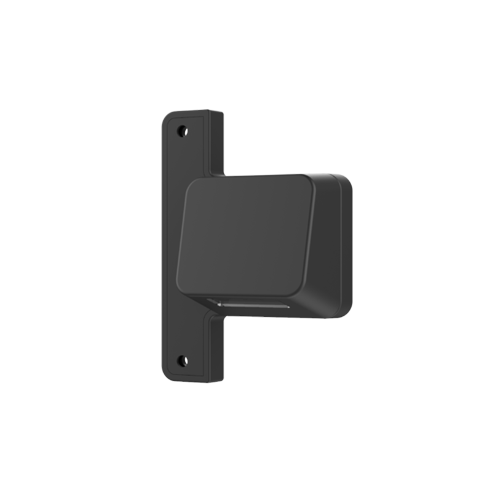

The MicroTouch 2D-LMH-A1 is a black landscape 2D barcode scanner configured for presentation use. It combines a Honeywell N4680 barcode engine with 640×480 imaging resolution and three supported terminal modes. Its compact housing measures 79.6 x 56.6 x 35.4 mm, with a net weight of 0.049 kg and a gross weight of 0.104 kg. The scanner also supports audio and comes with two screws.

Ideal Use Cases

This model is suited to deployments built around the specifically listed compatible MicroTouch terminals. It is also relevant where Presentation Mode is the required standard configuration or where the host workflow calls for USB HID Keyboard Mode, USB Serial Model, or HID POS Mode. Its specified ideal scan distance of 36 mm to 747 mm accommodates a range of scanning positions, although actual performance may vary with barcode quality and environmental conditions.

Why Choose This Model

The 2D-LMH-A1 brings its key scanning, optical, and integration specifications together in a compact black housing. The Honeywell N4680 barcode engine provides the foundation, while the 640×480 resolution and specified 40° horizontal by 30° vertical viewing angle define its imaging configuration. A 3000K LED and 630nm LED provide the stated illumination and aiming arrangement. Audio support is also included in the product specifications.

Installation and Integration

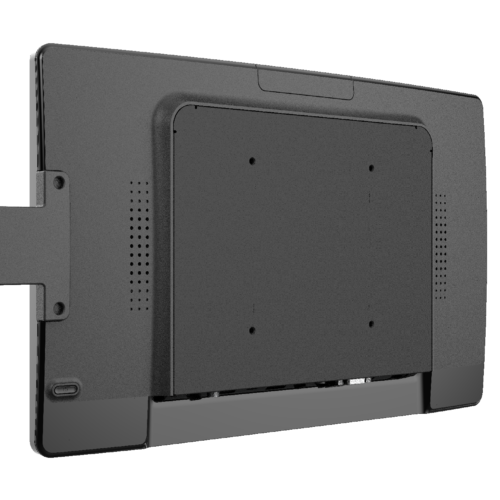

Compatibility is specified for the MicroTouch DT-156P-A1, DT-215P-B2, IC-156P-AA2, IC-156P-AW1-W10, IC-156P-AW2-W10, IC-156P-AW3-W10, IC-156P-AW4-W10, IC-215P-AA2, IC-215P-AW2-W10, and IC-215P-AW3-W10 models. Confirming the exact terminal model is therefore an important part of product selection. Two screws are included for installation. On the terminal side, the scanner supports USB HID Keyboard Mode, USB Serial Model, and HID POS Mode, allowing the selected operating mode to be matched to the intended host configuration.

Performance Highlights

The scanner is specified with an ideal scan distance spanning 36 mm to 747 mm. Barcode quality and environmental conditions can affect performance across that range. Its operating temperature is listed as 30°C to 60°C, while its storage temperature is 40°C to 70°C. The stated humidity range is 0% to 95% relative humidity, non-condensing, at 60°C. These values provide concrete environmental parameters for assessing whether the scanner matches a planned installation.

What Makes It Different

The supplied supported-symbol data identifies an extensive set of 1D formats: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, and GS1 Data Bar. Combined with Presentation Mode and the three supported USB terminal modes, this documented symbol coverage makes the model straightforward to evaluate against a defined barcode workflow.

Final Assessment

The MicroTouch 2D-LMH-A1 is a focused scanner option for the listed compatible MicroTouch terminals. Its Honeywell N4680 engine, 640×480 resolution, 36 mm to 747 mm ideal scan distance, compact dimensions, and clearly defined terminal modes provide the essential details needed for deployment planning. For installations requiring the specified compatibility, Presentation Mode configuration, and documented symbol support, it offers a concise and well-defined hardware profile.
