MACH CAM MODULE

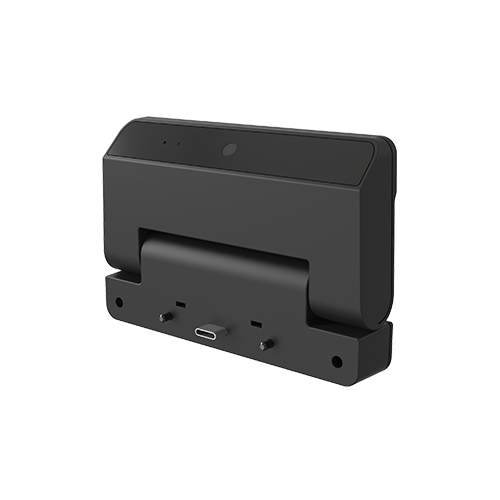

The MicroTouch MA-CAM-A1 MACH Cam Module is a compact, fixed-focus camera specified for the Mach Desktop Series and Mach All-in-One Series. It uses a 1/4-inch 8M CMOS image sensor with an active array of 3264 x 2448. Listed capture options are 3264 x 2448 at 15 fps and FHD 1920 x 1080 at 30 fps. The module outputs YUV and MJPEG, operates from USB 5.0V ±250mV input, and uses a black housing. Its body measures 111.3 x 68.1 x 18 mm and weighs 0.06 kg.

Ideal Use Cases

This module is suited to camera integration with compatible Mach Desktop and Mach All-in-One Series systems. The two listed resolution and frame-rate combinations accommodate requirements that prioritize either the full 3264 x 2448 resolution or FHD output at 30 fps. Fixed focus and a stated focus range from 10 cm to infinity make the module appropriate when subjects remain within that defined range. Its listed diagonal, horizontal, and vertical angles are 75°, 63°, and 49°, respectively. Compatibility with products outside the identified Mach series is not specified.

Why Choose This Model

The MA-CAM-A1 provides a clearly documented combination of sensor, resolution, focus, output, and physical specifications. Its 8M CMOS sensor supports the full 3264 x 2448 active array, while the FHD setting provides 1920 x 1080 output at the higher listed rate of 30 fps. Fixed Focus (FF) offers a defined optical configuration without an adjustable focus specification. The module also lists RoHS, REACH, CE, FCC, and ISED compliance. A black housing, 0.06 kg weight, and compact dimensions support integration where the documented size and appearance match the installation requirements.

Installation and Integration

Compatibility is explicitly stated for the Mach Desktop Series and Mach All-in-One Series. Before installation, allow space for the 111.3 x 68.1 x 18 mm module body and confirm that the host system meets the USB 5.0V ±250mV input requirement. Two Mylar pads and two screws are included for integration. The supported image-format outputs are YUV and MJPEG, so the receiving system should be configured around those listed formats. The specified temperature range is 0°C to 55°C. Cable type, driver requirements, software requirements, and a detailed mounting procedure are not provided in the source data and are therefore not claimed for this listing.

Performance Highlights

At its highest listed resolution, the camera produces 3264 x 2448 output, identified as 8M, at 15 fps. Its second listed configuration is FHD 1920 x 1080 at 30 fps. The 1/4-inch 8M CMOS sensor has a 3264 horizontal by 2448 vertical active array. The optical specification includes an F number of 2.2 ±5%, Fixed Focus (FF), and a focus range extending from 10 cm to infinity. Angular specifications comprise 75° diagonal, 63° horizontal, and 49° vertical. Image output is available in YUV and MJPEG formats. The supplied pixel-size specification is 1.12 um x 1. 1.2 um. Together, these documented values give integrators concrete parameters for evaluating image size, frame rate, focus distance, output format, and physical fit.

What Makes It Different

The defining characteristic of the MA-CAM-A1 is its specific alignment with the MicroTouch Mach Desktop and Mach All-in-One Series. It combines an 8M sensor, fixed-focus optics, two documented resolution and frame-rate combinations, USB input power, and included installation pieces in a 0.06 kg module. The specification also provides separate diagonal, horizontal, and vertical angular values rather than a single angle. Its YUV and MJPEG output options give buyers two explicitly supported image formats without implying support for formats that are not listed.

Final Assessment

The MicroTouch MA-CAM-A1 is a focused camera-module option for buyers working with the stated Mach Series platforms. It is strongest where the required configuration matches its 3264 x 2448 at 15 fps or FHD at 30 fps output, fixed focus from 10 cm to infinity, YUV or MJPEG format, and USB 5.0V ±250mV input. Its exact dimensions, weight, temperature range, compliance list, and included Mylar pads and screws make it possible to assess compatibility and installation needs from the supplied specifications.
