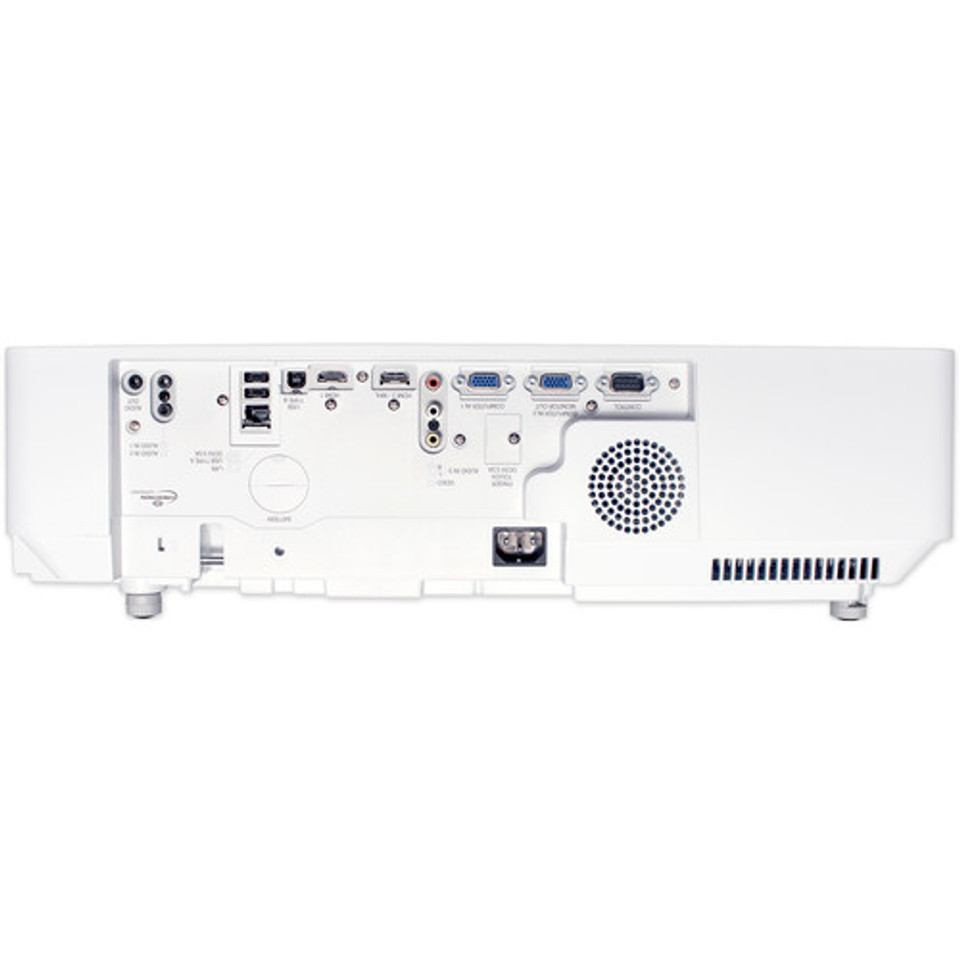

Maxell MP-TW4011 Overview
Enjoy out-of-the-box interactivity and shadowless images in most installations with the Maxell MP-TW4011 4200-Lumen WXGA Ultra-Short Throw Interactive 3LCD Projector. It features an ultra-short 0.3:1 throw ratio (measured from the center of the mirror), which allows it to be mounted only directly above or below your screen, wall, or whiteboard to project an image as large as 130" (up to 110" using interactivity features), reducing the risk of possible shadows. Its 4200 lumens of brightness, combined with its 500,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The WXGA 1280 x 800 native resolution helps ensure that text and images are clear at most viewing distances. The MP-TW4011 features RCA composite, two VGA, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, allowing you to connect your compatible smart device directly to the projector to mirror its screen. One VGA input can instead act as an output, allowing you to output the video to another projector or display. Its stereo RCA and 1/8" audio inputs, 1/8" audio output, and built-in 16-Watt speaker allow audio to accompany your video for a more immersive experience. An IR remote is included for convenient control, plus a VGA cable for virtually instant connectivity. Two interactive pens are also included.
Key Features
- Brightness of 4200 Lumens
- WXGA (1280 x 800) Native Resolution
- Ultra-Short 0.3:1 Throw Ratio
- RCA, 2x HDMI, 2x VGA Inputs
- Shared VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated Interactivity
- Built-In 16-Watt Speaker
- USB, Ethernet, and RS-232 Controllable
- Two Interactive Pens Included
Interactive Software
The projector includes a drawing application that allows you to draw onto your projections.
Letter and Figure Conversion
Automatically convert freehand shapes into geometric objects and handwriting into text on projected images via the included interactive pens.
More Than a Pen
The interactive pens let you operate a compass, ruler, protractor, stopwatch, and other useful tools on the projected image.
Writing and Drawing Capabilities
You can write and draw on images projected from nearly any source, including a document camera, without using a computer.
Save and Open Drawn Screens
You can save the image drawn on the projector screen, allowing you to manage and view previous projects.
Multi Functions Timer
This timer can support different applications where the monitoring of time is needed, such as a presentation, class duration, examination timer, and more.
Multiple-Screen Synchronization
Multiple projectors can be synchronized with the connection of an 1/8" stereo audio cable between them, enabling annotation across a larger screen.
Painter Tool
The interactive pens also feature Eraser, Undo, and Redo functions, and enable you to change the onscreen ink color and thickness via the Painter toolbar.
Multi-Pen Capable
Students can interact with the onscreen content with up to six interactive pens.
Windows Multitouch
Windows 8.1/10 multitouch allows users with touch-enabled Windows 8.1/10 systems to operate the computer directly from the interactive screen with up to six pens or touches, including Windows 8.1/10 gesture.
StarBoard Interactive Presentation Software (SBS)
Maxell's included SBS provides a customizable interface and toolbar to help streamline your workflow and improve production.
Accentualizer
This technology helps make images appear more real by enhancing sharpness, gloss, and shade. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are closer to the actual colors of the objects they represent.
Aspect Zoom
Aspect Zoom produces the maximum image size on the screen while retaining the aspect ratio of the image.
HDCR2 (High Dynamic Contrast Range)
Using HDCR2, blurred images caused by room lighting or outside light sources are corrected, and auto tone and color enhancements are made, helping to make images appear clearer, even in bright rooms.
MHL Connectivity
Mobile High-Definition (MHL) lets you mirror your phone/tablet screen with the projector via a compatible HDMI cable, and works with all apps.
Image Optimizer
The Image Optimizer is designed to automatically adjust HDCR and Accentualizer to augment visibility as lamp brightness dims over time.
Perfect Fit 2
Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pincushion distortions by enabling you to adjust individual corners and sides independent of one another. This helps correct geometric and complicated distortions, allowing the projected image to fit correctly to the screen.
Optional Finger Touch Module
An optional finger-touch module enables the projector to detect finger-touch activity on the screen area, letting you annotate and interact with the presented material without using the interactive pen.
Smart Device Control
Inputting the optional USB wireless adapter and using the dedicated Maxell app allows you to control the projector from your tablet or smartphone.
Maxell MP-TW4011 Specs
Image Display
| Display System |
3-Chip LCD |
| Native Chip Resolution |
1280 x 800 (WXGA) |
| Supported Resolutions |
Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness |
4200 Lumens |
| Aspect Ratio |
Native: 16:10 Supported: 16:9 Supported: 4:3 Supported: 14:9 |
| Dynamic Contrast Ratio |
500,000:1 |
| Color Depth |
8-Bit (16.78 Million Colors) |
| Scan |
Horizontal: 15 to 106 kHz Vertical: 50 to 120 Hz |
Lens
| Focus |
Manual Powered |
| Lens |
f = 4.21 mm |
| Optical Zoom |
None |
| Throw Distance |
16 - 35" / 40.64 - 88.9 cm |
| Throw Ratio |
0.3:1 |
| Projection Size |
60 - 130" / 152.40 - 330.20 cm |
Features
| Keystone Correction |
Vertical: ± 5° Horizontal: ± 5° |
| Digital Zoom |
1.35x |
| Ceiling Mountable |
Yes |
| Built-In Speaker |
Yes |
| Speaker Power |
16W |
Input/Output Connectors
| Inputs/Outputs |
1 x HDMI (HDMI Type-A) Audio, Service Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Input/Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control 2 x USB 2.0 (USB Type-A) Data 1 x USB 2.0 (USB Type-B) Control, Data Input |
| Wireless LAN / Wi-Fi |
No, Optional Adapter Available |
General
| Light Source |
Laser Phosphor |
| Expected Lamp Life |
Full Brightness: 20,000 Hours Medium Brightness: 30,000 Hours Low Brightness: 50,000 Hours |
| Security |
Cable Lock Slot Security Bar |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.8 to 3.6 A |
| Power Consumption |
Medium Brightness: 350 W |
| Operating Altitude |
10,000' / 3048 m |
| Dimensions (W x H x D) |
20.2 x 6.1 x 16.7" / 512.0 x 155.0 x 424.0 mm With Protruding Parts 19.9 x 5.5 x 16.7" / 506.0 x 139.0 x 424.0 mm Without Protruding Parts |
| Weight |
17.20 lb / 7.8 kg Approximate |
