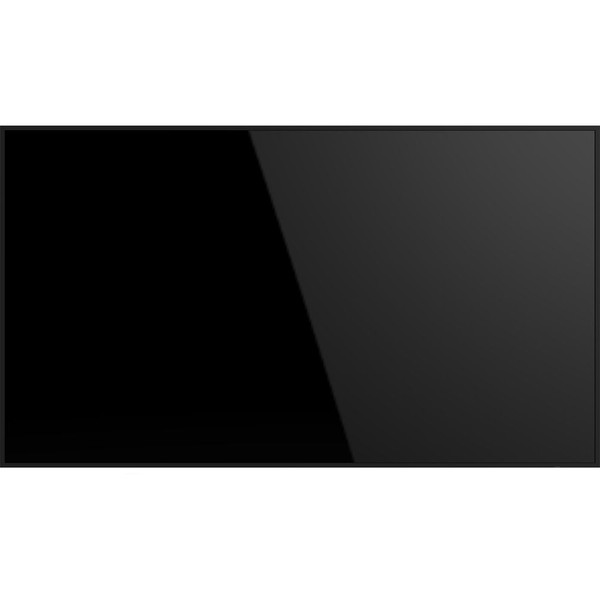

LG UM5JB Overview
The UM5J-B 98" Class 4K UHD Commercial LED Display from LG offers a large screen to share your company's messaging. Whether landscape or portrait, this digital signage has a 178° viewing angle, which means advertisements can be seen from virtually any angle. The slim design allows it to be installed closer to the wall, helping to create an immersive experience and sophisticated look.
Key Features
- 98" Class with 4K UHD Resolution
- 178° Viewing Angle
- 500 cd/m² of Brightness
- HDMI CEC Command Support
4K Ultra HD Resolution
UHD resolution is 4 times higher than FHD, which makes the color and details of the contents more vivid and realistic. In addition, the IPS panel allows for wider viewing angles and provides clearer content with no distortion.
High Brightness
With a brightness rating of 500 cd/m², this display delivers brilliant content and attracts attention, making these displays an ideal choice for a wide variety of businesses, including retail and corporate.
HDMI CEC Command
Support for HDMI CEC allows you to use the LG Remote Controller to control the basic functions of connected HDMI devices.
Additional Features
- 2 x 10W built-in speakers
- 16GB of internal memory
- Built-in Wi-Fi & Bluetooth
- Manual screen rotation
Specifications:
Panel
|
Screen Size
|
98"
|
|
Panel Technology
|
IPS
|
|
Native Resolution
|
3,840 × 2,160 (UHD)
|
|
Refresh Rate
|
60 Hz
|
|
Brightness (Typ.)
|
500 nit
|
|
Contrast Ratio
|
1,200 : 1
|
|
Dynamic CR
|
200,000 : 1
|
|
Color gamut
|
DCI 85%
|
|
Viewing Angle (H x V)
|
178 Deg.(H) × 178 Deg.(V)
|
|
Color Depth
|
1.07 Billon Colors (8bit + FRC)
|
|
Response Time
|
8 ms
|
|
Surface Treatment
|
25 %
|
|
Life Time (Typ.)
|
30,000 Hrs
|
|
Operation Hours (Hours / Days)
|
16 / 7
|
|
Portrait / Landscape
|
Yes / Yes
|
Mechanical Specification
|
Bezel Color
|
Black
|
|
Bezel Width
|
17 mm (T/R/L/B)
|
|
Weight (Head)
|
78 kg
|
|
Packed Weight
|
105 kg
|
|
Monitor Dimensions (W × H × D)
|
2,198 × 1,253 × 79.5 mm
|
|
Carton Dimensions (W × H × D)
|
2,440 × 1,468 × 275 mm (Box outer size)
|
|
VESA™ Standard Mount Interface
|
800 × 400 mm or 800 × 800 mm
|
Feature
|
Key Feature
|
Internal Memory (16 GB) (Based on EMMC), Wi-Fi (Built-in, FW update only), Bluetooth (Built-in), Power Indicator, Local Key Operation (7 Key, Power / UP / DOWN / LEFT / RIGHT / INPUT / MENU), webOS Non Smart / Non webOS Platform, Screen Rotation (Only 98”(Manually Change)), HDMI-CEC
|
Connectivity
|
Input
|
HDMI (3), RJ45(LAN) (1, FW update only), IR IN (No, Built-in IR), USB2.0 Type A (2)
|
|
Output
|
Audio Out (SPDIF, Phone Jack)
|
Environment Conditions
|
Operation Temperature
|
0°C to 40°C
|
|
Operation Humidity
|
10 % to 80 %
|
Power
|
Power Supply
|
AC 100-240 V~, 50/60 Hz
|
|
Power Type
|
Built-In Power
|
Power Consumption
|
Typ./Max.
|
560 W / 590 W
|
|
Power off
|
0.5 W
|
|
Smart Energy Saving (70%)
|
No
|
|
DPM
|
No
|
|
BTU (British Thermal Unit)
|
1,706 BTU/Hr (Typ.), 1,911 BTU/Hr (Max.)
|
Sound
Certification
|
Safety
|
UL, CB
|
|
EMC
|
FCC Class “A” / CE
|
|
ErP
|
Yes (NewErP)
|
Accessory
|
Basic
|
LG Remote Controller, Power Cord, Manual
|
