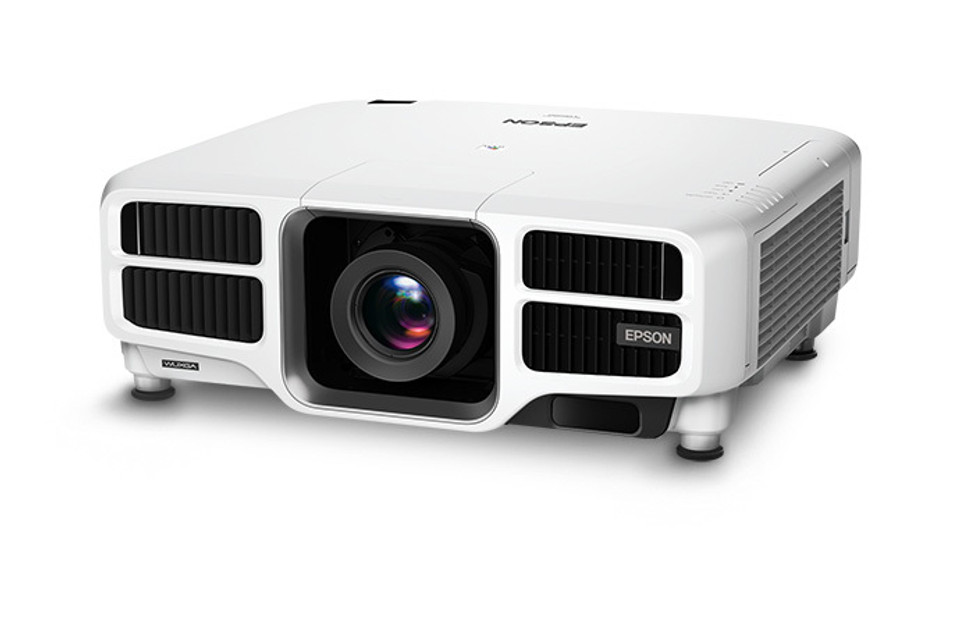

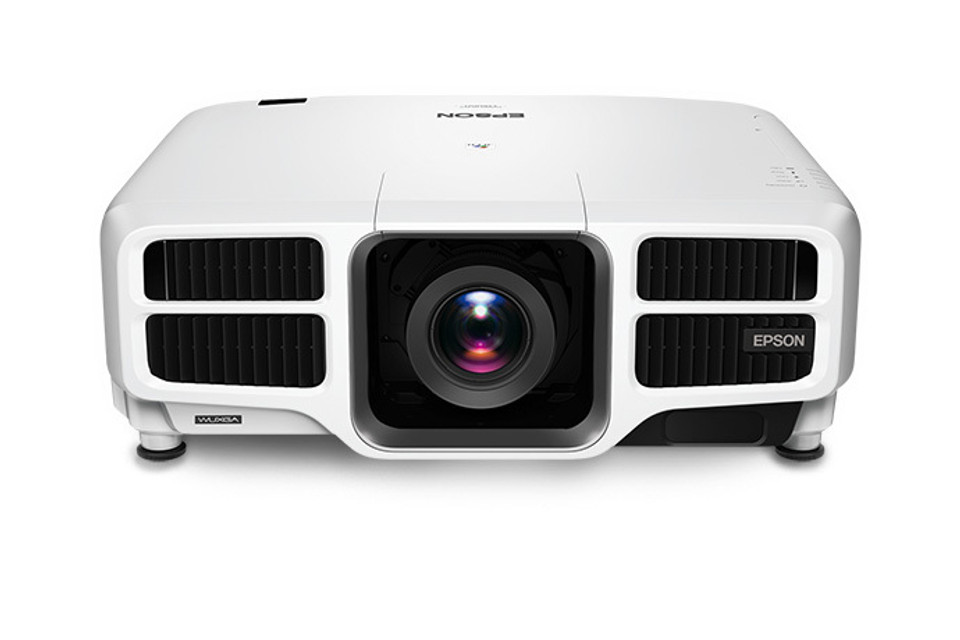

Experience the vibrancy of crystal-clear projection with the Epson Pro L1490U. Equipped with powerful 3-chip 3LCD and native WUXGA with 4K Enhancement Technology, this state-of-the-art, large-venue laser projector displays crisp, luminous images at 9000 lumens of color and white brightness. Designed with ease in mind, the Pro L1490U's laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. Plus, this elegant projector features a full range of inputs and Edge Blending, making it an ideal solution for conference rooms, auditoriums and live events.
Specifications
General
Device Type: 3LCD projector - 1080p
Networking: Ethernet
Projector
Brightness (White): 9000 lumens
Brightness (Color): 9000 lumens
Contrast Ratio: 2500000:1 (dynamic)
Projection Distance: 4 ft - 25 ft
Throw Ratio: 1.57 - 2.56:1
Uniformity: 90 %
Resolution: WUXGA - WUXGA (1920 x 1200)
Native Aspect Ratio: 16:10
Display Format: 2,304,000 pixels (1920 x 1200) x 3
Color Support: 1 billion colors
Max Sync Rate (V x H): 85 Hz x 92 kHz
Lamp Type: Laser/phosphor
Lamp Life Cycle: Up to 20000 hour(s)
Features: Edge blending, EPSON 3LCD technology, 16:9 aspect ratio support, 4:3 aspect ratio support, rear projection, 4K Enhancement
Lens
Focus Type: Powered
Lens Aperture: F/1.8-2.35
Zoom Type: Powered
Zoom Factor: 1.61x
Keystone Correction Direction: Horizontal, vertical
Vertical Keystone Correction: -45 / +45
Horizontal Keystone Correction: -30 / +30
Lens Shift Type: Powered
Video Input
TV System: NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60
Video Interfaces: VGA, HDMI, component video, DVI, 3G-SDI, HDBaseT
Video Modes: 480p, 720p, 1080i, 1080p, 480i, 576i, 576p
LAN and Wireless Image Transferring Protocols: Wired LAN
Expansion / Connectivity

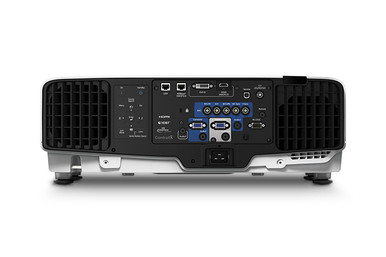

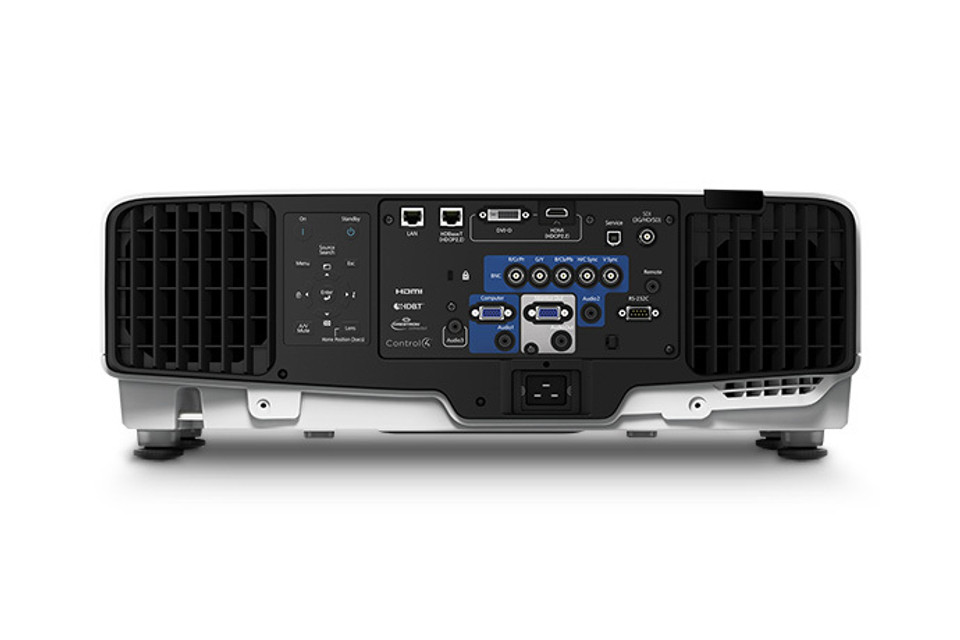

Interfaces: 1 x 3G-SDI input ¦ 1 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x DVI-D ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x HDBaseT - RJ-45 ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pi
Miscellaneous
Included Accessories: Lens cover, wireless remote control, HDMI cable clamp
Security Features: Security lock slot (cable lock sold separately), lens lock, security cable hole
Security Slot Type: Kensington security slot
Compliant Standards: RoHS
Power
Power Source: AC
Nominal Voltage: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 645 Watt
Power Consumption Stand by: 2 Watt
Power Consumption Sleep: 0.5 Watt
Dimensions & Weight
Width: 23.1 in
Depth: 19.4 in
Height: 8.3 in
Weight: 48.5 lbs
Manufacturer Warranty
Service & Support: Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Sound Emission: 37 dB
Sound Emission (Economic Mode): 30 dB
