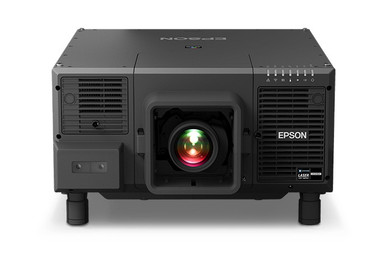

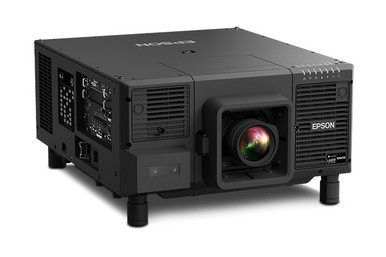

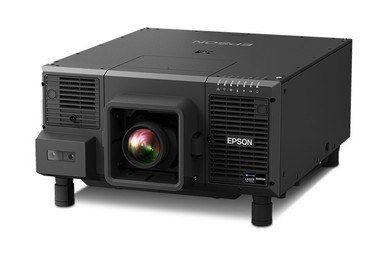

Epson V11H833820 Pro L20000UNL WUXGA 3LCD Laser Projector Without Lens

Premium large-venue WUXGA laser projector with 20,000 lumens.

The Pro L20000UNL combines a laser light source and 3-chip, 3LCD technology for powerful, lifelike images, delivering outstanding brightness in a remarkably compact form factor. A premium large-venue projector, it features Full HD WUXGA resolution and 20,000 lumens of color/white brightness¹ for ultra bright, vivid color. Its laser light engine and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours. With two interface slots designed to accommodate a wide range of inputs, the Pro L20000UNL provides the ultimate in connectivity. And, it supports optional lenses (sold separately), including a zero-offset ultra short-throw lens.

Ultra bright, vivid color
20,000 lumens color/white brightness¹; advanced 3-chip, 3CLD technology
Exceptional widescreen display
Full HD WUXGA (1920 x 1200) resolution; accepts 4Kcontent and provides 2.3 million pixels on screen
Solid-state laser light source
with electrostatic air filter for up to 20,000 hours of virtually maintenance-free operation²
Wide range of optional lenses (sold separately)
including a zero-offset ultra short-throw lens
Powerful
outstanding brightness from a remarkably compact large-venue projector
Advanced connectivity
two interface slots accommodate a wide range of inputs

• Designed for demanding environments — features a sealed light source and optical engine for outstanding durability for live events and fixed installations
• Dynamic projection capabilities — with advanced tools like tiling assist, Edge Blending and auto-color adjustment for fast installation; free software for multi-projector setup
• Bold, vibrant images — supports High Dynamic Range (HDR) via HDR10 (PQ) and Hybrid Log Gamma (HLG); BT.709 color space
• Mechanical shutter — protects against damage from external laser lights
• Frame interpolation — ideal for fast-moving images
• Wide lens shift — optimized lens and optical engine design

Eco Features

• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay™ Transport Partner

Specifications Projector:

Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA (1920 x 1200)Resolution on Screen: WUXGA / 2.3 million pixelsPixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum display resolution 1920 x 1200.
Display resolution 1920 x 1200 pixelsColor Brightness – Color Light Output: Color Light Output: 20,000 lumensWhite Brightness – White Light Output: White Light Output: 20,000 lumensAspect Ratio: 16:10, 16:9, 4:3Brightness Uniformity: 90%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal); 30,000 hours (Extended)²Illumination Technology: Laser Diode

General:

Operating Temperature: 32Weight: 109.3 lb (without standard lens, not included)Security: Security cable hole, Kensington lock provision

Projection Lens:

Type: Powered shift/focus/zoom (ELPLM15 Lens)F-number: 1.8 – 2.35 (ELPLM15 Lens)Focal Length: 36.0 – 57.4 mm (ELPLM15 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM15 Lens)Throw Ratio Range: 1.57 – 2.56 (ELPLM15 Lens)Lens Shift: Vertical: ±60 percent; Horizontal: ±18 percent (ELPLM15 Lens)

Projector Details:

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160Interfaces:

• 3G-SDI x 1 (SDI out x 1 – Active through)
• HDBaseT x 1
• 5-BNC
• VGA x 1

Interface (Slot 1)

• ELPIF01 (included from factory)
• DVI-D x 1
• HDMI® x 1 (HDCP2.2)
• DC Out (500 mA)

Interface (Slot 2)

• Blank from factory
• Interface Card (optional)
• ELPIF03
• Display Port x 2 (DP 20p)

Other

• USB connector Type B x 1: for Firmware update, Copy OSD Settings
• USB connector Type A x 1: for Firmware update, Copy OSD Settings, DC Out 900 mA
• Monitor out: Mini D-sub 15-pin x 1
• Serial: RS-232c x 1
• Remote: Stereo mini
• Wire LAN x 1 etherCON

Fan Noise: 45 dB (Normal Mode); max. 38 dB (Quiet Mode)

Projector Dimensions:

Including feet: 24.4″ x 14.1″ x 31.1″ (620 x 358.5 x 790 mm)

Remote Control:

Features: Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, User ID, Auto, Aspect, Color Mode, Menu, Slot 1, Slot 2 and moreOperating Distance: 49 ftOperating Angle: Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
Upper/Lower: Front: ± 50 degrees; Rear: +30 degrees

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC; Requires 200-240 V for full spec. operationPower Consumption: 1860 W (Normal Mode)
1123 W (Extended Mode)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)
