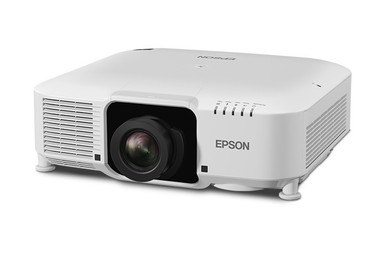

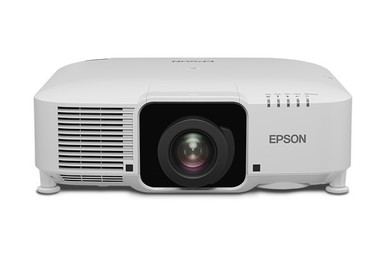

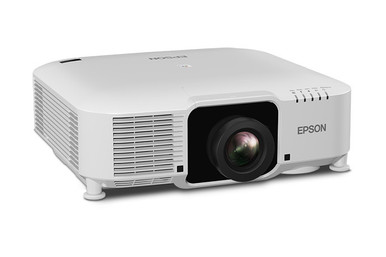

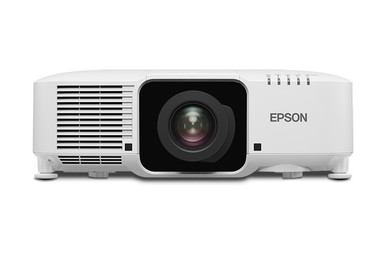

Epson Pro L1070UNL WUXGA 3LCD Laser Projector

Premium, compact large-venue laser projector with 4K Enhancement

The powerful Pro L1070UNL, part of Epson’s most compact interchangeable-lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology (1920 x 1200 x 2). Delivering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Providing 7,000 lumens of color brightness and 7,000 lumens of white brightness², the L1070UNL’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours. With a high contrast ratio and BT.709 color space, it produces sharp, true-to-life images. And, it offers 11 optional interchangeable lenses.

Ultra bright
7,000 lumens color/white brightness from a compact large-venue laser projector
Exceptional widescreen display
native WUXGA with 4K Enhancement Technology (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen
Vibrant, true-to-life images
with Epson 3-chip 3LCD technology
Worry-free operation

solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours

11 optional interchangeable lenses
with powered lens shift and lens memory, including an ultra short-throw lens with zero offset
Lifelike images
high contrast ratio and BT.709 color space for exceptional clarity and detail

• Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
• Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT™ and HDMI® (HDCP 2.2)
• Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
• Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
• Web- or network-based remote management — control and monitor projector status

Eco Features

• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay Transport Partner

Specifications Projector:

---

Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement¹ (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement¹/4.6 million pixels¹Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum Display Resolution: 4096 x 2160 (resizing display)
Display Resolution: 1920 x 1200 pixelsColor Brightness – Color Light Output: 7,000 lumensWhite Brightness – White Light Output: 7,000 lumensAspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)³Illumination Technology: Laser Phosphor
Weight: 34.4 lb without lensSecurity: Security cable hole, Kensington lock provision

Projection Lens:

---

Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.33 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)

Projector Details:

---

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:

• DVI-D x 1
• HDMI (HDCP 2.2) x 1
• HDBaseT x 1
• 5-BNC, VGA x 1
• Audio in: Mini Stereo x 3
• Variable audio out: Mini Stereo x 1
• USB connector Type B x 1: For service only
• USB connector Type A x 1: For wireless LAN, service, content playback
• Monitor out: Mini D-sub 15-pin x 1
• Serial: RS-232c x 1
• Remote Stereo Mini x 1
• Wired LAN: RJ45

Fan Noise: 36 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)

Projector Dimensions:

---

Including feet – with standard lens: 21.5″ x 7.4″ x 19.1″ (545 x 189 x 484 mm)

Remote Control:

---

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:

• Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
• Upper/lower: Front: + 30 to – 20 degrees; Rear: +50 to + 10 degrees

Power:

---

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 439 W (Normal Mode), 313 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
