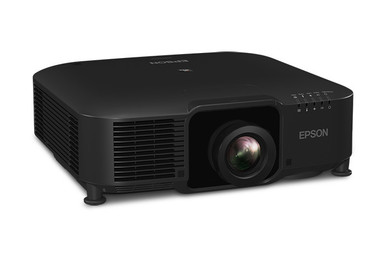

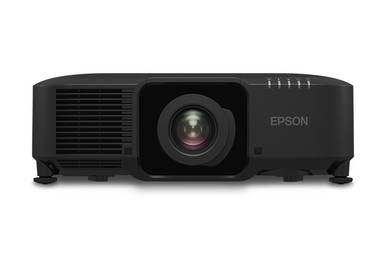

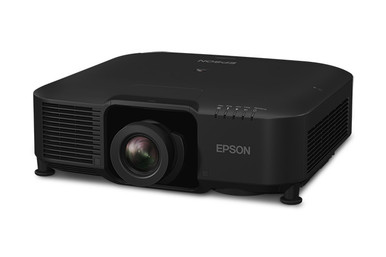

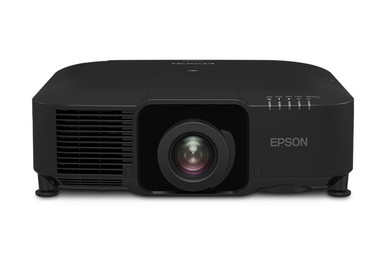

Premium, compact large-venue laser projector with 4K Enhancement
The powerful Pro L1075U, part of Epson’s most compact interchangeable-lens laser projector series, offers 3-chip 3LCD technology and native WUXGA resolution with 4K Enhancement Technology (1920 x 1200 x 2), all in a sleek black casing. Delivering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Providing 7,000 lumens of color brightness and 7,000 lumens of white brightness, the L1075U’s laser light source and air filter offer virtually maintenance-free operation up to 20,000 hours. With a high contrast ratio and BT.709 color space, it produces sharp, true-to-life images. And, it offers 11 optional interchangeable lenses (standard lens included; ELPLM08).
Ultra bright 7,000 lumens color/white brightness from a compact large-venue laser projector Exceptional widescreen display native WUXGA with 4K Enhancement Technology (1920 x 1200 x 2); accepts 4K content and provides up to 4.6 million pixels onscreen Vibrant, true-to-life images with Epson 3-chip 3LCD technology Worry-free operation
solid-state laser light source and air filter provide virtually maintenance-free operation for up to 20,000 hours
11 optional interchangeable lenses with powered lens shift and lens memory, including an ultra short-throw lens with zero offset (standard lens included; ELPLM08) Lifelike images high contrast ratio and BT.709 color space for exceptional clarity and detail
- Dynamic projection capabilities — advanced built-in Edge Blending, image warping and shape overlay features for a variety of applications; direct playback from USB storage media
- Simplified installation features — full 360-degree mounting, wide lens shift, versatile connectivity; inputs including HDBaseT and HDMI® (HDCP 2.2)
- Customized performance — brightness modes to maximize light source life and provide a consistent brightness level
- Multi-projector setup software — free software controls networked projectors and gives access to warping and edge blending
- Web- or network-based remote management — control and monitor projector status
Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay Transport Partner
Specifications Projector:
Projection System: High-aperture Epson® 3LCD, 3-chip technologyProjection Method: Front/rear/ceiling mountDriving Method: Poly-silicon TFT Active MatrixNative Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)Resolution on Screen: WUXGA with 4K Enhancement1/4.6 million pixels1Pixel Number in Device: 2,304,000 pixels (1920 x 1200) x 3 chipsSignal Input: Maximum Display Resolution: 4096 x 2160 (resizing display)
Display Resolution: 1920 x 1200 pixelsColor Brightness - Color Light Output: 7,000 lumensWhite Brightness - White Light Output: 7,000 lumensAspect Ratio: Supports 4:3, 16:9, 16:10Brightness Uniformity: 85%Pixel Arrangement: Cross stripeContrast Ratio: 2,500,000:1 (Dynamic Contrast: On)Color Reproduction: Up to 1.07 billion colorsLight Source Life: 20,000 hours (Normal)Illumination Technology: Laser Phosphor
General:
Weight: 34.4 lb without lensSecurity: Security cable hole, Kensington lock provision
Projection Lens:
Type: Powered shift/focus/zoom (ELPLM08 Lens)F-number: 1.7 – 2.3 (ELPLM08 Lens)Focal Length: 24.0 mm – 38.2 mm (ELPLM08 Lens)Zoom Ratio: Optical zoom 1 – 1.6x (ELPLM08 Lens)Throw Ratio Range: 1.44 – 2.33 (ELPLM08 Lens)Lens Shift: Vertical: ±67 percent; Horizontal: ±30 percent (ELPLM08 Lens)
Projector Details:
Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160Interfaces:
- DVI-D x 1
- HDMI (HDCP 2.2) x 1
- HDBaseT x 1
- 5-BNC, VGA x 1
- Audio in: Mini Stereo x 3
- Variable audio out: Mini Stereo x 1
- USB connector Type B x 1: For service only
- USB connector Type A x 1: For wireless LAN, service, content playback
- Monitor out: Mini D-sub 15-pin x 1
- Serial: RS-232c x 1
- Remote Stereo Mini x 1
- Wired LAN: RJ45
Fan Noise: 36 dB (Normal Mode); 32 dB (Medium Mode) 30 dB (Quiet Mode)
Projector Dimensions:
Including feet - with standard lens: 21.5" x 7.4" x 19.1" (545 x 189 x 484 mm)
Remote Control:
Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, menu, enter, esc and pointer functionsOperating Distance: 98 ftOperating Angle:
- Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
- Upper/lower: Front: + 30 to - 20 degrees; Rear: +50 to + 10 degrees
Power:
Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption: 439 W (Normal Mode), 313 W (Extended Mode), 2W (Network Standby), 0.5 W (Energy Saving)
