Description
Epson E20 Overview
Enjoy bright, vibrant images in most classroom settings with the Epson PowerLite E20 3400-Lumen XGA 3LCD Projector. Its 3400 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The projector's 1024 x 768 native resolution helps ensure that images and text are clear at most viewing distances.
The PowerLite E20 features HDMI and two VGA inputs to support various source devices. The projector also accepts video signals via USB Type-B from Windows and Mac computers. A VGA cable and an IR remote control are included as an added convenience.
Key Features
- Brightness of 3400 Lumens
- XGA (1024 x 768) Native Resolution
- 1.44 to 1.95:1 Throw Ratio
- HDMI, 2x VGA Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- USB Type-B Computer Input
- Integrated 5-Watt Speaker
- Includes VGA Cable and IR Remote Control
Designed to Provide Bright, Vivid Color
The projector's 3400 lumens of both color and white brightness combine with 3LCD technology to deliver bright, accurate color.
Extend Lamp Life in ECO Mode
The included lamp can last up to 6,000 hours in Normal Mode and up to 12,000 hours in ECO Mode.
Installation Flexibility
1.35x digital zoom and ±30° manual horizontal and automatic vertical keystone correction help simplify installation.
Versatile Connectivity
Connect your digital HD devices with the HDMI input.
Integrated Speaker
A built-in 5W speaker mitigates the need for an external sound system.
Additional Features
- RoHS compliance
- Recyclable design
- USB plug-and-play with Windows and Mac computers
- Remote control for A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, and Volume functions
Epson E20 Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1024 x 768 (XGA) |
| Supported Resolutions | Maximum: SXGA+ - 1400 x 1050 |
| Maximum Brightness | White: 3400 Lumens Color: 3400 Lumens |
| Aspect Ratio | Native: 4:3 |
| Dynamic Contrast Ratio | 15,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.44 (f = 16.7 mm) |
| Optical Zoom | None |
| Throw Distance | 2.493 - 33.924' / 0.76 - 10.34 m |
| Throw Ratio | 1.44 to 1.95:1 |
| Projection Size | 30 - 350" / 76.20 - 889.00 cm |
Features
| Keystone Correction | Auto-Vertical: ± 30° Manual-Horizontal: ± 30° |
| Supported HDR Input Formats | None |
| Digital Zoom | 1.35x |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 5W |

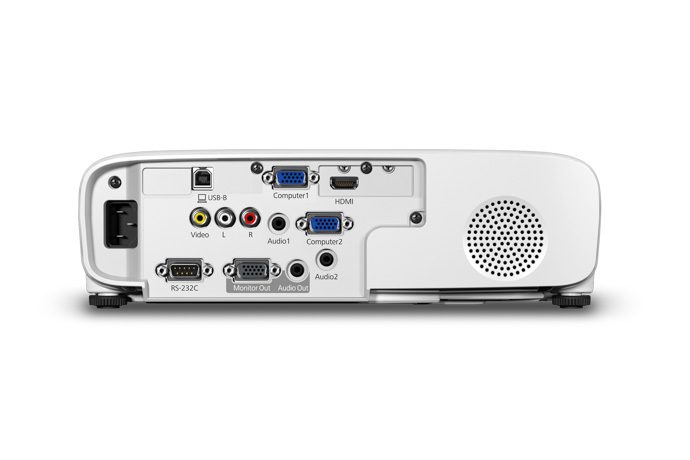

Input/Output Connectors
| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x USB 2.0 (USB Type-B) Data Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control |
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 210 W |
| Expected Lamp Life | Full Brightness: 6000 Hours Low Brightness: 12,000 Hours |
| Fan Noise | Full Brightness: 37 dB Low Brightness: 28 dB |
| Security | Cable Lock Slot Padlock Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 345 W Low Brightness: 235 W |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions (W x H x D) | 11.8 x 3.6 x 9.8" / 30.0 x 9.1 x 24.9 cm Including Feet |
| Weight | 5.95 lb / 2.7 kg |
Packaging Info
| Package Weight | 8.27 lb |
| Box Dimensions (LxWxH) | 14.8 x 13.8 x 6.2" |
