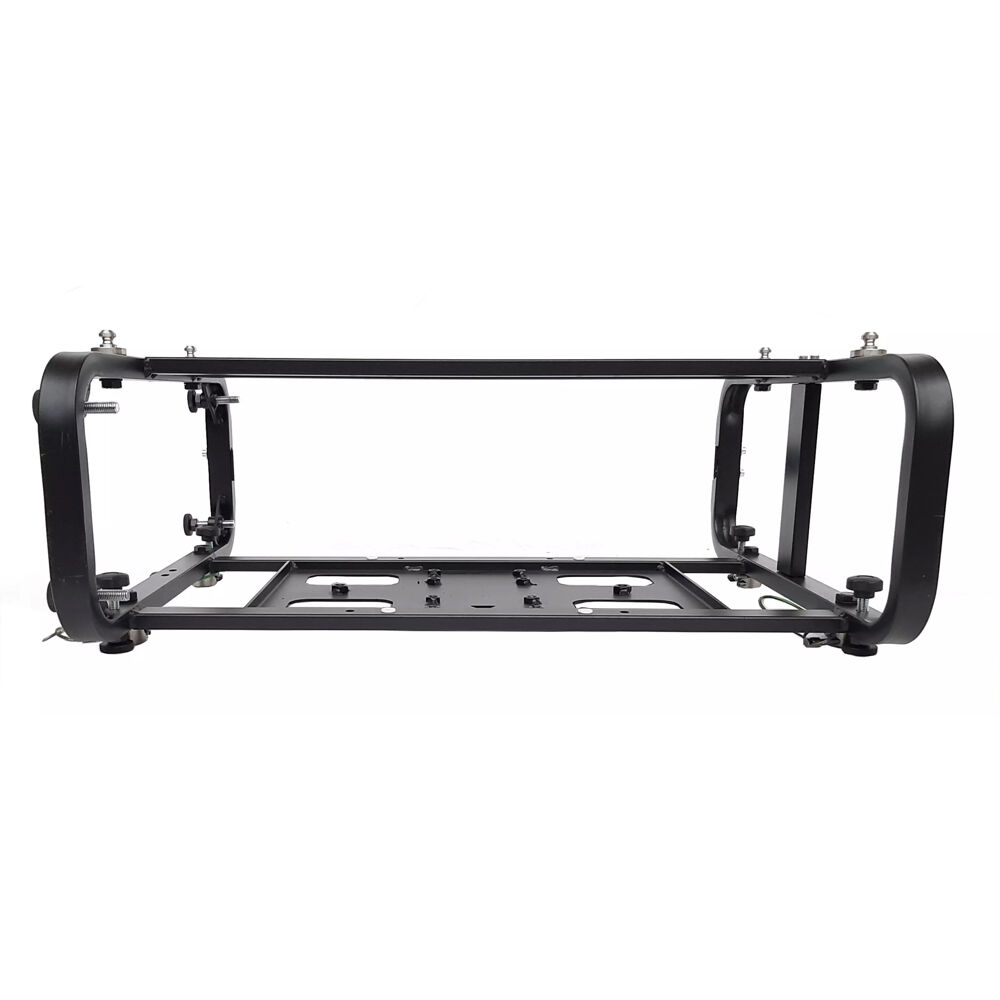

EPSON ELPMB84 Projector Stacking Frame – Beta model, 695mm wide

Ideal Use Cases

The Epson ELPMB84 is designed for projector installations that require vertical or horizontal stacking. Multiple frames can be configured as up to two cages in a suspended installation or up to three cages in a floor installation. When stacked projectors are properly aligned, this arrangement allows for higher displayed image brightness. The frame is also suited to installations where the projector needs added protection from impact and a surrounding structure that is easier to grasp when the equipment must be moved.

Its mounting provisions address several installation formats. The frame accommodates standard VESA 100 x 100 mm and 100 x 200 mm patterns, while threaded truss-clamp holes and compatible adapter options support integration into more specialized mounting systems.

Why Choose This Model

The ELPMB84 combines a powder-coated steel structure with a modular accessory system. Its 695 mm-wide frame provides a defined platform for building stacked projector configurations without limiting the installer to one orientation. Eight adjustable feet are included for vertical or horizontal stacking, along with eight M6 screws.

The frame protects the enclosed projector from impact while making the equipment easier to grasp or reposition. Its modular design also lets installers select the appropriate degree of mounting flexibility and fine adjustment for a particular configuration instead of relying on a single fixed arrangement.

Installation and Integration

The frame measures 27.4 x 21.3 x 11 inches, or 695 x 542 x 281 mm, and weighs 20.5 lb, or 9.3 kg. It supports both suspended and floor-based installations, with a maximum of two stacked cages when suspended and three when installed on the floor. Installers can orient the cages vertically or horizontally as required by the projector arrangement.

Two threaded holes are provided for M10 thread truss clamps. For truss mounting, the ELPMB83 adapter bars support standard mounting, while ELPMB78 adapter bars support portrait projection mounting. Fine tilt adjustment can be added with the ELPMB81 Tilt Adapter or the ELPMB77 Tilt Adapter Mounting Plate. For ultra short throw projectors or other projectors without a zoom lens, the ELPMB85 Rail Adapter provides fine forward and backward adjustment.

These accessory options form an intuitive modular system, allowing the installation to be configured around its required orientation, mounting method, and adjustment precision.

Performance Highlights

The ELPMB84 enables multiple projectors to be stacked so their aligned images can produce higher displayed image brightness. Achieving this result requires stacked projectors and image alignment. The frame provides the physical structure needed to arrange those projectors vertically or horizontally while its adjustable feet assist with the selected stacking orientation.

For installations requiring more precise mechanical positioning, the compatible tilt and rail accessories address two distinct adjustment needs. The tilt options provide fine angular control, while the ELPMB85 Rail Adapter supports precise forward and backward positioning for ultra short throw models and other projectors that do not have a zoom lens.

What Makes It Different

The ELPMB84 is more than a basic protective cage. Its combination of floor, suspended, truss, portrait, tilt, and linear-adjustment options creates a flexible foundation for different projector layouts. Standard VESA 100 x 100 mm and 100 x 200 mm compatibility provides established mounting interfaces, while the two M10 threaded holes accommodate truss clamps.

The included M6 screws and adjustable feet support immediate frame assembly and stacking setup. Its powder-coated steel construction, black finish, and impact-protective form balance structural function with practical handling. The Beta Model designation and 695 mm width clearly distinguish this frame within Epson’s projector accessory range.

Final Assessment

The Epson ELPMB84 is a purpose-built stacking frame for installations that need multiple projectors arranged vertically or horizontally. It supports up to two suspended cages or three floor-installed cages, provides standard VESA compatibility, and accommodates M10 truss clamps. Optional Epson adapters extend the system with standard or portrait truss mounting, fine tilt control, and forward or backward positioning. Its powder-coated steel construction and included mounting hardware make it a well-defined foundation for configurable stacked-projector installations.
