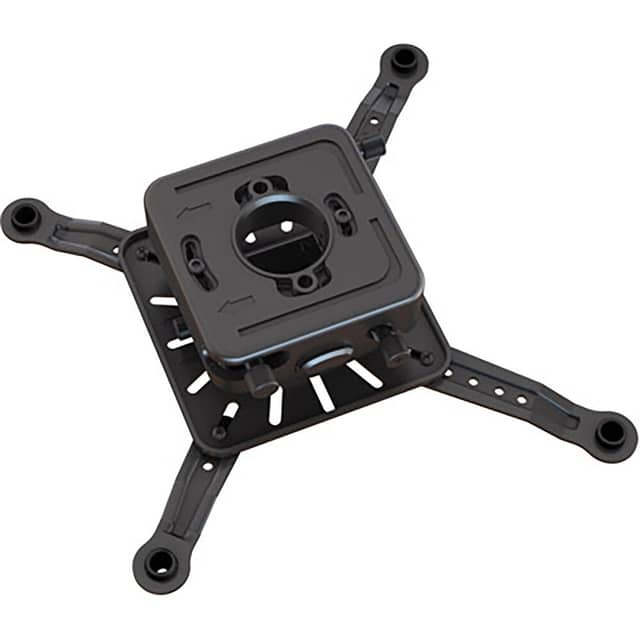

Mustang Pro Projector Mount 70lbs Micro Adjustments Security Lock Black

Ideal Use Cases

The Mustang MPJ-3 is designed for professional projector installations that require universal mounting coverage, substantial load capacity, and precise positioning. It supports projectors weighing up to 70 lb and accommodates mounting-hole patterns up to 351.5 mm in diameter. Additional legs expand its coverage for larger mounting patterns, making the mount suitable when projector attachment points extend beyond the standard configuration. Its quick-release capability is particularly useful for installations where the projector may need to be removed for bulb replacement while preserving established picture adjustments.

Why Choose This Model

The MPJ-3 combines a universal design with independent roll, pitch, and yaw adjustment. Roll can be adjusted by ±8 degrees, pitch by ±15 degrees, and yaw through a full 360 degrees. These adjustment ranges give installers control over projector alignment after the unit is attached. Large, easy-to-grip knobs simplify setup, while adjustments can also be completed with a standard screwdriver. The listed lead-screw adjustment mechanism provides the precise movement needed when making small alignment corrections.

This black model also includes the security-lock feature identified in the product data. Combined with its 70 lb maximum supported weight, the mount is configured for projector installations that require both firm support and controlled positioning.

Installation and Integration

The mount installs to structures using a 1.5-inch NTP thread. During installation, the universal mounting layout can be configured for hole patterns measuring up to 351.5 mm in diameter. Additional legs extend the mounting range for projectors with larger attachment patterns. Once the projector is secured, the large adjustment knobs provide direct access to the alignment controls.

Roll, pitch, and yaw can be adjusted separately to establish the required picture position. The ±8-degree roll range helps correct side-to-side leveling, while the ±15-degree pitch range provides vertical aiming control. Full 360-degree yaw adjustment permits rotational alignment. Because the adjustments are accessible with a standard screwdriver, installers can make controlled corrections using a common hand tool. The quick-release design also allows the projector to be removed for bulb replacement without losing the existing picture adjustments.

Performance Highlights

• Supports projectors weighing up to 70 lb.
• Universal design fits mounting-hole patterns up to 351.5 mm in diameter.
• Additional legs expand coverage for large mounting patterns.
• Provides ±8-degree roll adjustment.
• Provides ±15-degree pitch adjustment.
• Provides 360-degree yaw adjustment.
• Quick release supports projector removal without losing picture alignment.
• Large adjustment knobs support straightforward installation.
• Standard-screwdriver adjustment allows precise setup.
• Installs using a 1.5-inch NTP thread.

What Makes It Different

The MPJ-3 concentrates several installer-focused functions in one universal mount. Its combination of a 70 lb load rating, expandable mounting-pattern coverage, and three-axis adjustment supports a broad range of projector configurations. The quick-release system addresses ongoing service needs by allowing bulb access without requiring the picture position to be recreated afterward. Large knobs make the primary controls easy to handle, while the lead-screw mechanism supports fine adjustment when the projected image needs smaller corrections.

The full 360-degree yaw range is another practical distinction, complementing the dedicated roll and pitch ranges. Rather than limiting setup to basic leveling, the mount provides control across all three listed axes. Black and white are identified as available color choices, with this listing representing the black version.

Final Assessment

The Mustang MPJ-3 is a professional universal projector mount built around high-capacity support, adaptable attachment, and precise alignment. Its 70 lb maximum supported weight, 351.5 mm mounting-pattern coverage, expandable leg configuration, quick release, and independent roll, pitch, and yaw controls make it a strong fit for demanding projector installations. For setups requiring a black mount with micro-adjustment controls and a security lock, the MPJ-3 brings the key installation and maintenance features together in one model.
