Epson EB-PU2216B 16,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement

Premium large venue laser projector with 4K enhancement¹.

Experience the power and flexibility of the EB-PU2216B 16,000-lumen² large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2216B produces ultra bright, 16,000-lumen images² from a standard 120 V power source and uses a 20,000-hour virtually maintenance-free laser light source³. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality⁴, and the optional attachable PixAlign^TM camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

• 16,000 lumens of equal white and color brightness²
• WUXGA with 4K Enhancement¹
• 20,000-hour virtually maintenance-free laser light source³
• Standard 120 V operation; 9 optional powered lenses (sold separately)

Incredible Color
Epson 3-chip 3LCD technology produces 13,000 lumens of equal white and color brightness²
WUXGA with 4K Enhancement¹
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
Robust, high-reliability design
virtually maintenance-free 20,000-hour laser light source⁴; filterless cabinet; optimized liquid cooling system; IP5X-rated hermetically sealed optical and light source module for high dust resistance
Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
Installation flexibility
provides full brightness from 220 V power and up to 19,000 lumens³ from a standard 120 V power source
Outstanding image quality
high native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support⁵ and scene adaptive gamma correction for true-to-life images

• Fast installation — built-in NFC functionality⁴ and easy-to-use Android^™ and iOS^® mobile app, Epson Projector Configuration Tool (EPCT)⁶, to streamline multi-projector installations

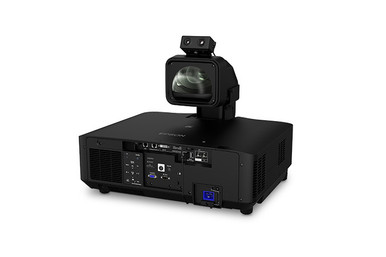

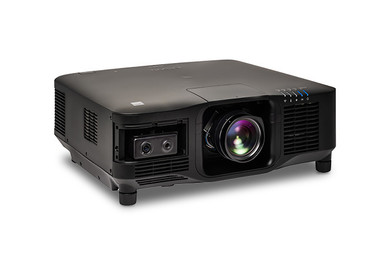

• Optional attachable PixAlign^TM camera — provides access to powerful features, including projector stacking assist function⁷, blending assist⁷ for edge blends, color calibration8 and screen matching⁸ from the projector menu or Epson Projector Professional Tool (EPPT) app⁹

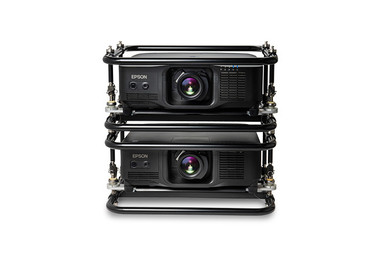

• Simple Blending and Simple Stacking functions⁸ — for fast blending or stacking of two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable PixAlign camera⁸
• Efficient setup and management — control multiple projectors in a single, large space with EPPT app⁹; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)¹⁰ from any device with a Web browser
• Built-in media player — remotely update playlists and content with the Epson Projector Content Manager application¹¹
• Custom brightness and constant brightness modes — helps maximize light source life and provide a consistent brightness level

Eco Features

• RoHS compliant
• End-of-life options available¹²
• Epson America, Inc. is a SmartWay^® Transport Partner¹³

Better Products for a Better Future^™

For more information on Epson's environmental programs, go to eco.epson.com

What's In The Box:

• EB-PU1008W projector
• Power cable
• Remote control with 2 batteries
• Cable cover
• Lens connector cap
• User guide
• Warranty sheet

Specifications

Projection System High-aperture Epson 3-chip 3LCD
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Signal Input Maximum Display Resolution: 4096 x 2160
(resizing display); Display Resolution: 1920 x 1200 pixels
Native Resolution WUXGA with 4K Enhancement2

(1920 x 1200 x 2)
Resolution on Screen WUXGA with 4K Enhancement2
/
4.6 million pixels
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness1 Color Light Output: 16,000 lumens
White Brightness1 White Light Output: 16,000 lumens
Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Diode

Projection Lens (Standard)
Visit Epson.com for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical Zoom: 1.0 – 1.6
Throw Ratio Range 1.57 – 2.56
Lens Shift Vertical: ±60%; Horizontal: ±18%

Other Features
Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage 100 V – 240 V AC ± 10%, 50 Hz – 60 Hz
Power Consumption
1,118 W (Normal/Custom)
791 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise 38 dB (Normal Mode); maximum 34 dB (ECO)
IP Rating IP5X10
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock

Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT®
ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI, VGA 15-pin)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes

Dimensions (W x D x H)
Including Feet 23.1" x 19.4" x 8.6"
Weight 53.5 lb (24.2 kg)

Remote Control
Features Power, Source Search Selection, Lens Shift/Zoom/
Focus, Test Pattern Selection, A/V Mute, Freeze, User ID, Auto
Aspect, Color Mode, Number, Page Up and Down, E-Zoom,
Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance 98 ft

Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11

Support
Epson ConnectionSM
Pre-Sales Support (U.S. and Canada): 800-463-7766
Website: www.epson.com
