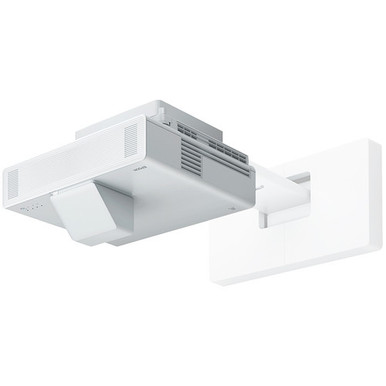

Epson BrightLink 1480Fi 5000-Lumen Pixel-Shift Full HD Ultra-Short Throw 3LCD Interactive Laser Projector

(No reviews yet) Write a Review
Free Shipping
  • Epson BrightLink 1480Fi 5000-Lumen Pixel-Shift Full HD Ultra-Short Throw 3LCD Interactive Laser Projector
  • Epson BrightLink 1480Fi 5000-Lumen Pixel-Shift Full HD Ultra-Short Throw 3LCD Interactive Laser Projector
Frequently bought together:


Epson 1480FI Overview

Enjoy out-of-the-box interactivity with the Epson BrightLink 1480Fi 5000-Lumen Pixel-Shift Full HD Ultra-Short Throw 3LCD Interactive Laser Projector. It includes two interactive pens and, with the addition of an optional touch module, supports up to six touch points. The projector features support for wireless sharing to and from the projector for up to 50 compatible devices thanks to onboard Wi-Fi connectivity. Its 5000 lumens of color and brightness and 2,500,000:1 dynamic contrast ratio help images remain clear and detailed in well-lit rooms.

The BrightLink 1480Fi sports an ultra-short 0.27 to 0.37:1 throw ratio to virtually eliminate on-screen shadows and minimize the risk of shining in a presenter's eyes. It has composite video, two VGA, and three HDMI inputs to support a variety of source types. One VGA input can instead act as an output, allowing you to daisy-chain multiple projectors together to show the same source.

  • 5000 lumens of color/white brightness
  • Enhance learning environments with up to a 100" interactive display
  • Laser light source for up to 20,000 hours of virtually maintenance-free light source life
  • Pen-based interactivity turns nearly any wall or existing whiteboard interactive
  • Allows up to two users to write and draw at once
  • Automatic image alignment helps speed up installation time
  • Digital whiteboard functionality lets you draw, save, print, and email without a computer and share content to other network-connected compatible BrightLink projectors
  • Use the free Epson iProjection software to connect, display, and share content simultaneously to/from up to 50 connected devices with built-in Wi-Fi connectivity
  • RoHS compliant
  • Recyclable design
  • USB plug-and-play for macOS 10.4 or later and Windows 7 or later
  • 850 nm IR interactive technology
  • 65 to 100" diagonal interactive area
  • Supports Microsoft Windows 8/8.1, 10, 7 SP1, macOS 10.11 / macOS 10.12x, Ubuntu, 16.04 LTS, 19.04, and 18.04 LTS
  • Includes a trial subscription of the SMART Learning Suite, which includes SMART Notebook, SMART amp, SMART lab, SMART Learning Suite Online, and more
  • Optional touch module available for touch-based interactivity with up to six touch points

Key Features

  • Color & White Brightness of 5000 Lumens
  • Pixel-Shift Full HD On-Screen Resolution
  • Ultra-Short 0.27 to 0.37:1 Throw Ratio
  • Composite Video, 2x VGA, 3x HDMI Inputs
  • VGA 2 Alternates as VGA Out
  • Analog Audio Input and Output
  • Compatible with SMART Learning Suite
  • Built-In 8W Stereo Speakers
  • Ethernet & RS-232 Controllable
  • 2 Interactive Pens Included

Epson 1480FI Specs

Image Display

Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1366 x 768 (HD)
On-Screen Resolution Up to Full HD (1920 x 1080) via Pixel-Shift Technology
Maximum Brightness White: 5000 Lumens
Color: 5000 Lumens
Aspect Ratio Native: 16:9
Supported: 16:10
Supported: 4:3
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)


Focus Manual
Lens f/1.5 (f = 3.9 mm)
Optical Zoom None
Throw Ratio 0.27 to 0.37:1
Projection Size 65 - 100" / 165.10 - 254.00 cm


Keystone Correction Horizontal: ± 3°
Vertical: ± 3°
Digital Zoom 1.35x
Ceiling Mountable Yes
Built-In Speaker Yes (Stereo)
Speaker Power 16W

Input/Output Connectors

Inputs/Outputs 3 x HDMI (HDMI Type-A) Audio, Video Input
1 x HDMI (HDMI Type-A) Audio, Video Output
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Input/Output
1 x Composite (RCA) Video Input
3 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Microphone Input
1 x 1/8" / 3.5 mm Mini Audio Output
2 x USB 2.0 (USB Type-A) Audio, Video Input
2 x USB 2.0 (USB Type-B) Audio, Control, Video Input
1 x Ethernet (RJ45) LAN Input/Output
1 x RS-232 (DE-9/DB-9) Control
1 x Proprietary Data Output
1 x USB 2.0 (USB Type-A) Power Output
1 x 1/8" / 3.5 mm Mini Data Input
1 x 1/8" / 3.5 mm Mini Data Output
Wireless LAN / Wi-Fi Yes, Built-in


Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 36 dB
Low Brightness: 27 dB
Security Cable Lock Slot
Password Protection
Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 381 W
Low Brightness: 270 W
Standby Mode (Lamp Off): 2 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W x H x D) 18.1 x 14.8 x 18.2" / 46.0 x 37.6 x 46.2 cm
6.3 x 1.0 x 1.0" / 16.0 x 2.5 x 2.5 cm Interactive Pen, Approximate
Weight 21.4 lb / 9.71 kg

Packaging Info

Package Weight 30.25 lb
Box Dimensions (LxWxH) 23.3 x 20.8 x 13.5"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
