Display System 3-Chip LCD
Native Chip Resolution 1280 x 800 (WXGA)
Maximum Brightness 3500 Lumens
Aspect Ratio 16:10
Focus Manual
Lens f/0 – 1.6 (f = 0 – 3.7 mm)
Throw Ratio 0.28 to 0.37:1
Projection Size 60 – 100″ / 152.40 – 254.00 cm
Keystone Correction Vertical: ± 3° Horizontal: ± 3°
Ceiling Mountable Yes
Rear Screen Projection Yes
Closed Captioning Yes

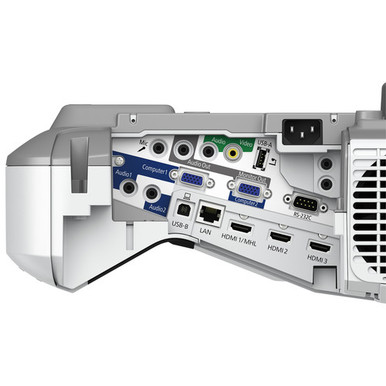

Inputs/Outputs 3 x HDMI with MHL Support (HDMI Type-A) Video Input 1 x RS-232 (DE-9/DB-9) Video Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-B) Data Input/Output 1 x USB 2.0 (USB Type-A) Data Input/Output
Lamp Power 250 W
Expected Lamp Life Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours
Fan Noise Medium Brightness: 35 dB Low Brightness: 29 dB
Security Padlock Password Protection
Power Consumption Medium Brightness: 373 W Low Brightness: 324 W Medium Brightness: 2.2 W Low Brightness: 0.23 W
Dimensions (W x H x D) 14.5 x 15.8 x 7.4″ / 36.8 x 40.1 x 18.8 cm Including Feet 14.5 x 15.8 x 5.9″ / 36.8 x 40.1 x 15.0 cm Excluding Feet
Weight 12.6 lb / 5.7 kg
Package Weight 21.45 lb
Box Dimensions (LxWxH) 21.1 x 19.2 x 9.9″

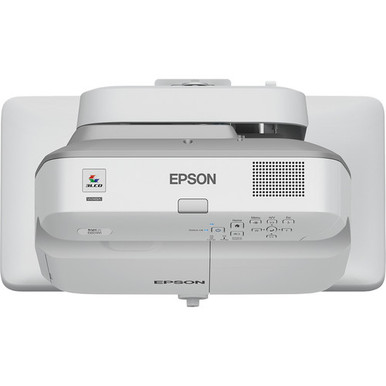

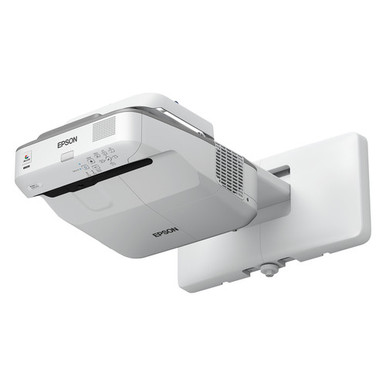

Epson 685WI Overview The BrightLink 685Wi WXGA 3LCD Ultra Short-Throw Interactive Display from Epson is the wireless display solution for today’s BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, Windows and Mac computers, as well as iOS and Android devices.
Epson 685WI Overview When used in conjunction with Epson Multi-PC projection plus Moderator device management software, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It’s the perfect tool for displaying a variety of content or for comparing students’ work side by side. Widescreen Performance
Epson 685WI Overview Built-in closed captioning helps educational institutions meet Section 508 requirements for students with hearing impairments. And, it eliminates the need to pay for an additional decoder and its installation.
Long-Life Lamps Lamp design saves energy and lasts up to 10,000 hours. It maximizes viewing time while minimizing the total cost of ownership. Eco Features RoHS compliant Recyclable product
Long-Life Lamps Epson America, Inc. is a SmartWay Transport Partner
Wireless Support Display Chromebook, iOS, Android, Mac, and Windows screens Versatile Connectivity
Wireless Support Three HDMI supports multiple high-definition A/V devices, with MHL support Epson 685WI Specs Image Display Display System 3-Chip LCD
Wireless Support Native Chip Resolution 1280 x 800 (WXGA) Maximum Brightness 3500 Lumens
Wireless Support Aspect Ratio 16:10 Lens Focus Manual Lens
Wireless Support f/0 1.6 (f = 0 – 3.7 mm)
Wireless Support Throw Ratio 0.28 to 0.37:1
Projection Size 60 100″ / 152.40 – 254.00 cm Features Keystone Correction
Projection Size Vertical ± 3°
Projection Size Horizontal ± 3° Ceiling Mountable Yes Rear Screen Projection Yes Closed Captioning Yes Inputs/Outputs
3 x HDMI with MHL Support (HDMI Type-A) Video Input
1 x RS-232 (DE-9/DB-9) Video Input 1 x 1/8″ / 3.5 mm Mini Audio Output
1 x USB 2.0 (USB Type-B) Data Input/Output, 2.0 (USB Type-A) Data Input/Output General Lamp Power 250 W Expected Lamp Life
Projection Size Medium Brightness 5000 Hours
Projection Size Low Brightness 10,000 Hours
Fan Noise Medium Brightness 35 dB
Fan Noise Low Brightness 29 dB Security Padlock Password Protection
Power Consumption Medium Brightness 373 W, 2.2 W
Power Consumption Low Brightness 324 W, 0.23 W
Power Consumption Dimensions (W x H x D) 14.5 x 15.8 x 7.4″ / 36.8 x 40.1 x 18.8 cm Including Feet 14.5 x 15.8 x 5.9″ / 36.8 x 40.1 x 15.0 cm Excluding Feet Weight 12.6 lb / 5.7 kg Packaging Info Package Weight 21.45 lb
Power Consumption Box Dimensions (LxWxH) 21.1 x 19.2 x 9.9″
SKU BL-685WI
