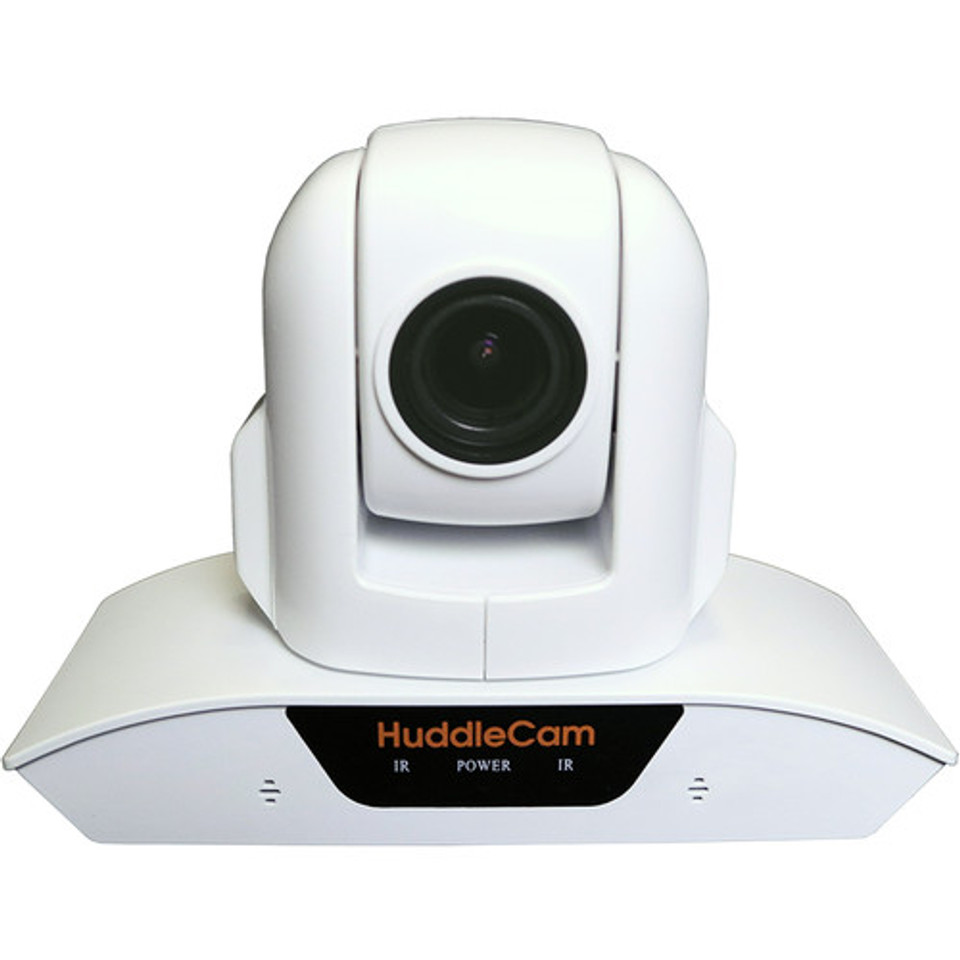

HuddleCamHD HC10XA-WH 10XA 1080p PTZ Camera with Audio, White

HuddleCamHD HC10XA Overview

The white HuddleCamHD 10XA 1080p PTZ Camera is suitable for medium sized conference rooms. You can easily connect your camera to a Windows, Mac, or ChromeBox without the need for additional software. It offers complete USB-based video conferencing systems designed to work with any online meeting software such as Skype for Business, GoToMeeting, WebEX, and Skype. Furthermore, the camera features a microphone array built into the camera for clear audio pick up. The camera includes an IR remote control which can be used for camera PTZ and configuration.

Compatibility
OS

• Windows 7/8/8.1/10
• Mac OS X

Applications

• Google Hangout
• GoToMeeting
• Lifesize
• Microsoft Lync
• Polycom RealPresence
• Radavision
• Spontania
• Skype
• TurboMeeting.US
• Vidyo
• VSee
• Zoom.US
• Acano
• Adobe Connect
• Blue Jeans
• Cisco Jabber
• Cisco WebEX
• EasyMeeting.net
• Facetime
• Fuzebox

General

• 1080p video with lossless 10X optical zoom
• Dual microphone array built into the camera for clear audio pick up
• 57° field of view so you can capture your entire room and still have the ability to zoom in
• Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections
• Access camera presets with the included IR remote control
• Easily control your camera’s pan, tilt, and zoom along with other fine tuning setting from your remote control
• Easily invert the camera image for installation on the ceiling
• Easily connect your camera to a Windows, Mac, or ChromeBox without the need for additional software
• USB2Air wireless extension system—an USB 2.0 Windows only device supporting up to 30Mb of bandwidth per second
• RS-232 control which utilizes the Sony VISCA camera protocol to control the camera from a AV control system such as a Crestron or AMX touchscreen
• You can convert the RS-232 DB9 cable to USB and control the camera with the VISCA Control Software, which opens up a host of new features
• Complete USB-based video conferencing systems designed to work with any online meeting software such as Skype for Business, GoToMeeting, WebEX, and Skype
• Includes an IR remote

HuddleCamHD HC10XA Specs

Image Sensor	1/2.8″-Type CMOS
Sensor Resolution	Effective: 2.1 Megapixel
Optical Zoom Ratio	10x
External Recording Modes	USB 1920 x 1080 at 30.00 fps
Supported Control Protocols	VISCA IR Pelco-D

Imaging

Image Sensor	1/2.8″-Type CMOS
Sensor Resolution	Effective: 2.1 Megapixel

Exposure Control

Precise Scan Rate Control	No
Minimum Illumination	0.1 Lux

Lens

Focal Length	4.7 to 47mm
Optical Zoom Ratio	10x
Field of View	57 to 7°
Maximum Aperture	f/1.6

Video Capture

External Recording Modes	USB 1920 x 1080 at 30.00 fps
Broadcast Output	NTSC

Control

Presets	64
Pan/Tilt	Pan: 680° (-340 to 340°) Tilt: 120° (-30 to 90°)
Tally Light	No
Supported Control Protocols	VISCA IR Pelco-D

Interface

Video I/O	1x USB-B 2.0 Output
Built-In Microphone	No

Power

Power Consumption

Power Supply: 10.5 to 14 VDC at 2 A (15 W)

Environmental

Operating Conditions

32 to 113°F / 0 to 45°C

General

Material of Construction	Aluminum, Plastic
Dimensions	7.1 x 5.2 x 3.1″ / 18 x 13.2 x 7.8 cm
Weight	1.41 lb / 640 g

Packaging Info

Package Weight	3.25 lb
Box Dimensions (LxWxH)	8.9 x 8.8 x 7.1″
