Resolution and Frame Rate UHD 4K at up to 30 fps
Image Sensor 1/2.8″-Type CMOS
Sensor Resolution 8.42 MP
System Connection USB-A 3.0 / 3.1/3.2 Gen 1
Number of Lenses 1
Aperture f/2.2
Field of View Diagonal: 120 Horizontal: 109.7 Vertical: 87
Zoom 4x (Digital)
Focus Type Fixed
Bluetooth No
Power Source Bus Powered
Low-Light Correction Yes
OS Compatibility macOS / Windows, macOS Windows
Supported Formats/Protocols H.264, H.265, MJPEG, YUY2
Microphone 2
Privacy Shutter No
Security No

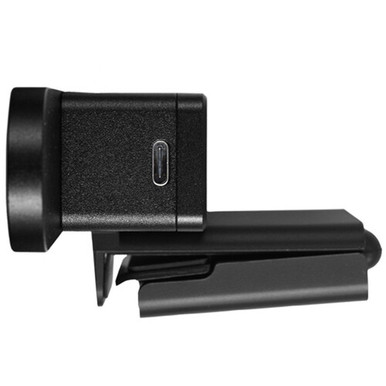

Attachment Method Clip, 1/4″-20 Tripod
Built-In Light No
Certifications CE, FCC
Operating Conditions 32 to 104 F / 0 to 40 C at 10 to 90% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C

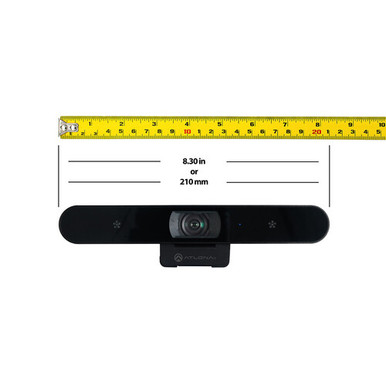

Dimensions (W x H x D) 8.3 x 2.9 x 1.9″ / 210.0 x 74.0 x 48.0 mm
Weight 10.6 oz / 300 g
Package Weight 1.215 lb
Box Dimensions (LxWxH) 12.5 x 5.2 x 3.2″

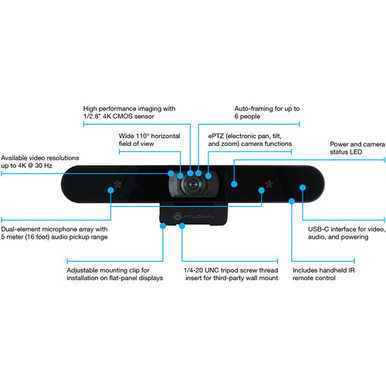

Designed for video conferencing and other applications with AV systems supporting USB interfacing and extension
Universal Windows and Mac compatibility with standard UVC 1.1 plug-and-play operation

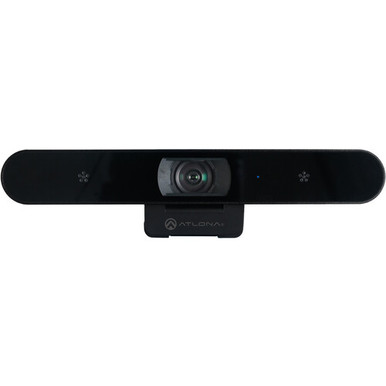

Atlona Captivate 4K Overview Works with popular soft codec and UC clients, such as Microsoft Teams, Zoom, BlueJeans, Webex, GoogleMeet, GoToMeeting, and Amazon Chime
Atlona Captivate 4K Overview USB camera control available from compatible apps such as Zoom Rooms
Atlona Captivate 4K Overview Fast, responsive ePTZ (electronic pan, tilt, and zoom) camera functions
Atlona Captivate 4K Overview Two-microphone array with 16′ audio pickup range
Atlona Captivate 4K Overview High performance imaging, fine detail, and color rendering with 1/2.8 4K CMOS sensor
Fast and accurate auto focus and auto white balance mode
Atlona Captivate 4K Overview Auto exposure mode with backlight compensation for low-lighting conditions

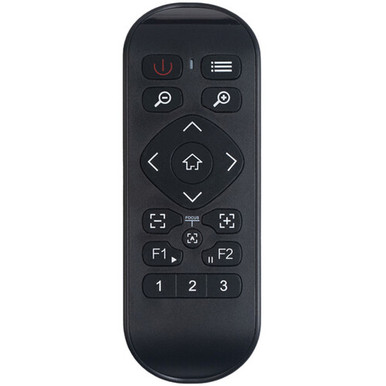

Atlona Captivate 4K Overview Picture controls available for brightness, color, saturation, contrast, and sharpness IR remote control included
Atlona Captivate 4K Overview Three camera presets available and accessible from IR remote
Atlona Captivate 4K Overview Supports wall installation below a display with third-party mounting hardware
Atlona Captivate 4K Overview Image flip and mirroring supported Atlona Captivate 4KSpecs Key Specs
Atlona Captivate 4K Overview Resolution and Frame Rate UHD 4K at up to 30 fps Image Sensor
System Connection USB-A 3.0 / 3.1/3.2 Gen 1 Sensor, 3.0 / 3.1/3.2 Gen 1
System Connection Resolution and Frame Rate UHD 4K at up to 30 fps Number of Lenses 1 Image Sensor
System Connection Diagonal 120
System Connection Horizontal 109.7
System Connection Vertical 87 Zoom 4x (Digital) General
Focus Type Fixed Bluetooth No Power Source Bus Powered Low-Light Correction Yes OS Compatibility macOS / Windows OS Compatibility macOS Windows Supported Formats/Protocols H.264, H.265, MJPEG, YUY2 Microphone Microphone 2 Physical Privacy Shutter No Security No Attachment Method Clip, 1/4″-20 Tripod Built-In Light No Certifications CE, FCC
Focus Type Fixed Bluetooth No Operating Conditions 32 to 104 F / 0 to 40 C at 10 to 90% Humidity Storage Conditions -4 to 140 F / -20 to 60 C
Focus Type Fixed Bluetooth No Dimensions (W x H x D) 8.3 x 2.9 x 1.9″ / 210.0 x 74.0 x 48.0 mm Weight 10.6 oz / 300 g Packaging Info Package Weight 1.215 lb
Focus Type Fixed Bluetooth No Box Dimensions (LxWxH) 12.5 x 5.2 x 3.2″
SKU AT-CAP-FC110
