Description

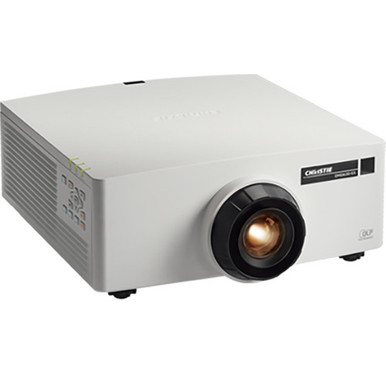

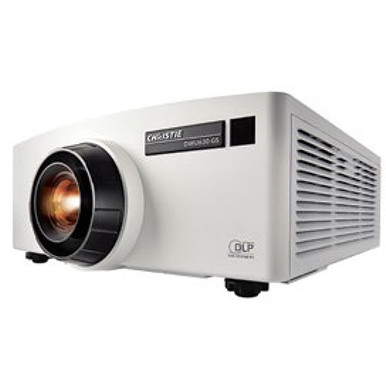

Christie DWU635-GS Overview
The DWU635-GS WUXGA 6750 ISO Lumens Laser Projector from Christie uses a single 0.67" DLP DMD S600HB chip to produce images when combined with a compatible lens (available separately). It supports a resolution of 1920 x 1200 and an aspect ratio of 16:10. This projector has a brightness of 6750 ISO, 6000 center, and 6000 ANSI lumens. There are two HDMI, a DVI-D, and a VGA video input, as well as an HDBaseT input. An IR remote control with jack is included.
Compatible Lenses
Lens 0.75-0.95 Zoom G/GS
Lens 0.95-1.22 Zoom G/GS
Lens Zm Std G/599-GS 1.22-1.53 (lowest cost for G/555/599/630/635-GS)
Lens Zoom HP G/GS 1.22-1.52 (all G and GS)
Lens 1.52-2.89 Zoom G/GS
Lens 2.9-5.50:1 Zoom G/GS
Lens UST 0.36 (120"), Ultra short throw lens, 630/635/700/850/1075-GS
Lens 0.95-1.22 Zoom G/GS
Lens Zm Std G/599-GS 1.22-1.53 (lowest cost for G/555/599/630/635-GS)
Lens Zoom HP G/GS 1.22-1.52 (all G and GS)
Lens 1.52-2.89 Zoom G/GS
Lens 2.9-5.50:1 Zoom G/GS
Lens UST 0.36 (120"), Ultra short throw lens, 630/635/700/850/1075-GS
Other Features
162 MHz pixel clock
Built-in backlit keypad
Boresight adjustable lens mount
Motorized horizontal and vertical lens offset (lens sold separately)
Motorized zoom and focus adjustment (lens sold separately)
97.5W dissipation
Built-in warping, blending, and color matching
360° orientation
Portrait mode
24/7 operation
RealBlack technology produces 4,000,000:1 full on/off contrast ratio
36 dBA noise rating
Christie DWU635-GS Specs
Image Display
| Display System | 1-Chip 0.67" DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 6750 Lumens |
| Offset | 100% ± 100% vertical 30% ± 30% horizontal |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 250:1 |
| Dynamic Contrast Ratio | 4,000,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Packing Side by Side Top Bottom |
| Color Wheel | 4-Segment (R/G/B/Y) |
| Scan | Horizontal: 15 to 91 kHz Vertical: 24 to 120 Hz |
Features
| Ceiling Mountable | Yes |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x 1/8" / 3.5 mm Mini Remote Input 1 x HDBaseT (RJ45) Audio, Control, Video 1 x VGA (DE-15/DB-15) Video Output 1 x RJ45 Control 1 x RS-232 (DE-9/DB-9) Control Input 1 x VESA 3D Sync (RCA) Control Output 1 x VESA 3D Sync (RCA) Control Input |
Hardware
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 36 dB Low Brightness: 34 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 9.5 A |
| Power Consumption | Medium Brightness: 650 W |
| Operating Altitude | 10,000' / 3048 m |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 85% |
| Dimensions (W x H x D) | 19.9 x 18.0 x 7.6" / 505.5 x 457.2 x 193.0 mm |
| Weight | 34.94 lb / 15.85 kg |
