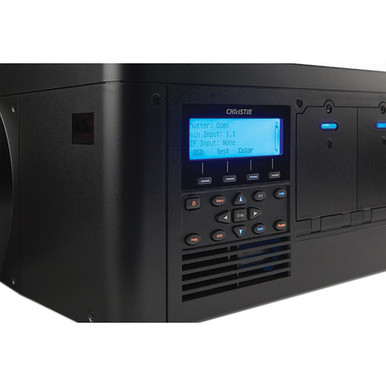

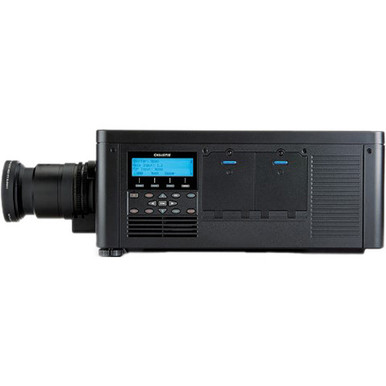

Christie M Series HD14K-M Full HD 3DLP Projector (No Lens)(118-019101-04)

Christie HD14K-M Overview

The M Series HD14K-M Full HD 3DLP Projector from Christie offers embedded warping, blending, and color matching. It features a dual lamp design, and when using both lamps, provides 13,500 center lumens for maximum brightness. HD14K-M supports a maximum resolution of 1920 x 1080, and dynamic contrast ratio of 2500:1.

Intelligent Lens System (ILS)

The ILS automatically recognizes and calibrates a lens when it is installed. Stepper motor-based encoding ensures that motor drift does not occur, as typically found with DC encoded motors, providing accurate and repeatable recall of all lens offset, zoom and focus positions. This lens system ensures that the images adjust to optimize screen coverage and maintain alignment in applications with moving screens or variable aspect ratios.

Multi Window/Screen Processing

External processors are not required for simple, small tiled, and blended arrays. This reduces TCO. Each M Series projector has the ability to send signals to multiple projectors (up to a 3×3 array) without any additional hardware or software. The projectors in the tiled array can then show only the portion of the signal that they need to project.

Embedded Christie Twist

Christie Twist enables seamless edge-blending of multiple curved images faster and easier than traditional, manual methods. Controlled by an intuitive GUI, users can control and edgeblend or stack multiple curved images. Images can also be warped to fit virtually any dimension or shape display. Embedded Christie Twist ensures that all M Series projectors work with optional accessories such as Christie AutoStack and AutoStack Premium, camera-based software used to easily and accurately align content across a projection array in minutes.

Embedded Edge Blending and Color Matching

Advanced blending capabilities and Comprehensive Color Adjustment (CCA) ensure digitally accurate color matching and uniformity across multi-screen blended or tiled images.

LiteLOC

The LiteLOC feature automatically manages your display’s brightness levels over time so that you can match the brightness of a multiple projector system in tiled or blended arrays. This feedback system continuously monitors lamp brightness, so that as the lamp goes through its natural brightness decay, the system increases the lamp power in order to maintain consistent brightness.

Projector Control and Management

Users can access all projector menus and control through a web interface (via Ethernet) without disrupting the live presentation. This allows for real-time adjustments and monitoring of each projector on the network, regardless of geographic location.

Other Features

• Auto setup
• Dust sealed, 3-chip DMD light engine
• Motorized horizontal and vertical lens offset
• Scheimpflug (tilt) adjustment
• Built-in light shutter
• Tool-free lens insertion system
• Digital keystone correction
• Contrast aperture
• Menus in five languages
• 99-channel memory
• Black level blending
• Built-in portrait display capabilities
• 3D upgradable

Christie HD14K-M Specs

Image Display

Display System	3-Chip 0.95″ DLP
Native Chip Resolution	1920 x 1080 (Full HD)
Supported Resolutions	Minimum: VGA – 640 x 480 Maximum: QXGA – 2048 x 1536
Maximum Brightness	13,500 Lumens
Offset	120% ± vertical 42% ± horizontal
Contrast Ratio	650:1
Dynamic Contrast Ratio	2500:1
Scan	Horizontal: 15 to 120 kHz Vertical: 23.97 to 150 Hz
Optical Zoom	None

Features

Keystone Correction	None
Supported HDR Input Formats	None
Multi-Input Support (PIP/PBP)	None
Built-In Speaker	None
Projection Tilt Option	No

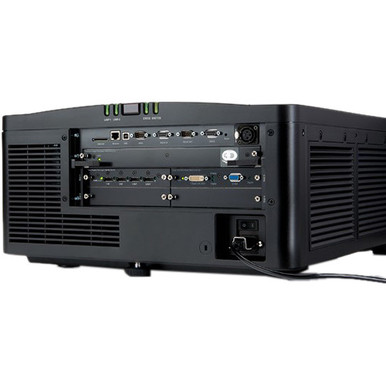

Input/Output Connectors

Inputs/Outputs

2 x DisplayPort Video Input 1 x DVI-D Video Input 1 x 3G-SDI (BNC) Video 1 x RS-232 (DE-9/DB-9) Control Input/Output 1 x RS-422 (DE-9/DB-9) Control Input 1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control

Hardware

Wireless LAN / Wi-Fi

None

General

Lamp Power	450 W
Expected Lamp Life	Full Brightness: 1750 Hours Low Brightness: 2000 Hours
Security	None
AC Input Power	110 to 240 VAC, 50 / 60 Hz
Heat Dissipation	5118 BTU
Power Consumption	Medium Brightness: 1500 W
Dimensions (W x H x D)	22.1 x 19.7 x 10.2″ / 56.1 x 50.0 x 25.9 cm
Weight	55.00 lb / 24.95 kg without lens

Packaging Info

Package Weight	55 lb
Box Dimensions (LxWxH)	29 x 28 x 26″
