Description
Christie DHD951-Q Overview

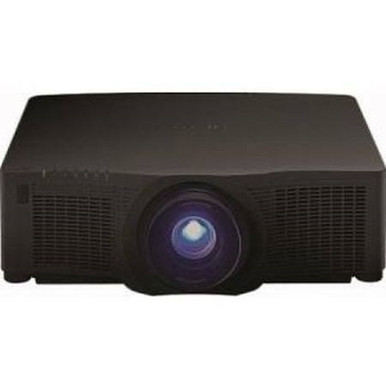

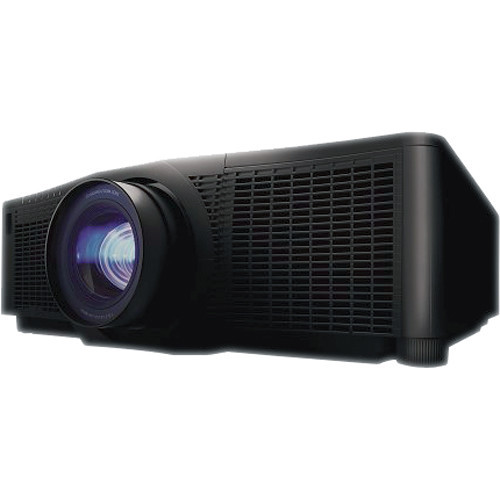

The high performance black DHD951-Q 1DLP Projector from Christie offers edge blending, geometric correction, and a portrait mode. It features 3G-SDI and dual HDMI inputs, a status monitor display, and motorized zoom, focus, and lens shift with memory. The native 1920 x 1080 HD resolution and 2500:1 contrast ratio deliver a superior image.
3G-SDI and dual HDMI inputs
eClarity and HDCR
Built-in color wheel
HDBaseT control and networking support
Portrait mode capable
Edge blending
Geometric correction
Status monitor display
Motorized zoom, focus, and lens shift with memory
Presentation does not require PC
Christie DHD951-Q Specs
Image Display
| Display System | 1-Chip 0.65" DMD DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Maximum Brightness | 8500 Lumens |
| Uniformity | <90% |
| Offset | 135% + vertical 50% - vertical 22% ± horizontal |
| Contrast Ratio | 2500:1 |
| Optical Zoom | None |
Features
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Projection Tilt Option | No |
Input/Output Connectors
| Inputs/Outputs | 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 2 x HDMI Type-A Audio, Video 1 x DVI-D Video 1 x HDBaseT (RJ45) Control 1 x USB Type-A Data 1 x RJ45 LAN 1 x SDI (BNC) Video 1 x RS-232 (DE-9/DB-9) Control 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x BNC Video |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (2 x P-VIP) |
| Lamp Power | 370 W |
| Expected Lamp Life | Medium Brightness: 2000 Hours Low Brightness: 4000 Hours |
| Fan Noise | Medium Brightness: 36 dB Low Brightness: 29 dB |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | 3618 BTU (AC 110 to 120V) 3379 BTU (AC 220 to 240V) |
| Power Consumption | Medium Brightness: 1060 W Medium Brightness: 990 W |
| Dimensions (W x H x D) | 18.2 x 21.1 x 6.9" / 46.2 x 53.6 x 17.5 cm |
| Weight | 37.5 lb / 17.0 kg |
