Display System 1-Chip 0.65″ DMD DLP
Native Chip Resolution 1920 x 1080 (Full HD)
Supported Resolutions WUXGA – 1920 x 1200
Maximum Brightness White: 9000 Lumens Color: 9000 Lumens
Offset 120% ± vertical 30% ± horizontal
Aspect Ratio Native: 16:9
Contrast Ratio 1200:1
Dynamic Contrast Ratio 6000:1
Color Wheel 4-Segment (R/G/B/Y)
Scan Horizontal: 15 to 9 kHz Vertical: 24 to 85 Hz
Keystone Correction None
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) None
Built-In Speaker None
Projection Tilt Option No
Wireless LAN / Wi-Fi None
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours
Fan Noise Medium Brightness: 35 dB
Security None
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 1070 W
Dimensions (W x H x D) 19.9 x 22.2 x 7.6″ / 50.5 x 56.4 x 19.3 cm
Weight 54.9 lb / 24.9 kg
Package Weight 65 lb
Box Dimensions (LxWxH) 29.75 x 23.5 x 14.25″
Christie DHD1075-GS Overview Solid state laser phosphor illumination combined with Christie BoldColor Technology for accurate color reproduction Advanced processing 162 MHz pixel clock
Built-in color matching, constant intensity, and advanced warping and blending
Compact and lightweight for easy transportation and handling
Christie DHD1075-GS Overview Capable of 360° rotation and functions in portrait mode
DVI, two HDMI inputs, and one HDMI loop out
Accepts analog inputs via an HD15 connection for fixed installs and live events
Christie DHD1075-GS Overview Features a 3G-SDI loop through input for rental stage
Christie DHD1075-GS Overview Horizontal and vertical scaling while maintaining aspect ratio on all inputs Quiet operation
Christie DHD1075-GS Overview Automated camera-based stacking, warping, and blending capability allows for quick setup Up to 20,000-hour life (with 50% brightness) 3D Inputs
Christie DHD1075-GS Overview HDMI 1.4, HDBaseT—frame packed, top/bottom, side by side Up to 120 Hz 3D output 3D Sync in (BNC) connector for genlocking projectors 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer Networking RS-232 in Control via HDBaseT
Christie DHD1075-GS Overview Ethernet (10/100) RJ45 connections are fully compatible with the rugged and lockable EtherCon Built-in backlit keypad
Christie DHD1075-GS Overview Wired remote control (3.5mm stereo)
Christie DHD1075-GS Overview Loop out available for daisy chaining
Christie DHD1075-GS Overview Lens Mount Boresight adjustable
Christie DHD1075-GS Overview Motorized horizontal and vertical lens offset
Christie DHD1075-GS Overview Motorized zoom and focus adjustment Regulatory UL/CSA/IEC 60950-1
Christie DHD1075-GS Overview FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO RoHS, REACH, and WEEE Christie DHD1075-GS Specs Image Display Display System 1-Chip 0.65″ DMD DLP
Christie DHD1075-GS Overview Native Chip Resolution 1920 x 1080 (Full HD) Supported Resolutions
Christie DHD1075-GS Overview WUXGA 1920 x 1200 Maximum Brightness
Christie DHD1075-GS Overview White 9000 Lumens
Christie DHD1075-GS Overview Color 9000 Lumens Offset 120% ± vertical 30% ± horizontal
Aspect Ratio Native 16:9
Aspect Ratio Contrast Ratio 1200:1
Aspect Ratio Color Wheel 4-Segment (R/G/B/Y) Scan
Aspect Ratio Horizontal 15 to 9 kHz
Aspect Ratio Vertical 24 to 85 Hz Features Keystone Correction None
Supported HDR Input Formats None Multi-Input Support (PIP/PBP) None Built-In Speaker None

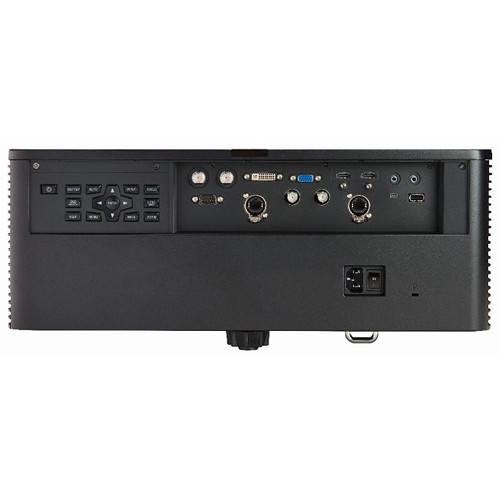

Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Output, x 3G-SDI (BNC) Video Input, x DVI-D Video Input, x VGA (DE-15/DB-15) Video Input
1 x HDMI Type-A Audio, Video Output
2 x HDMI Type-A Audio, Video 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output
1 x USB Type-A Data
1 x Mini-USB Data 1 x RJ45 LAN 1 x VESA 3D Sync (BNC) Video Input 1 x VESA 3D Sync (BNC) Video Output 1 x HDBaseT (RJ45) Control 1 x RS-232 (DE-9/DB-9) Data Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Fan Noise Medium Brightness 35 dB Security None
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 1070 W
Power Consumption Dimensions (W x H x D) 19.9 x 22.2 x 7.6″ / 50.5 x 56.4 x 19.3 cm Weight 54.9 lb / 24.9 kg Packaging Info Package Weight 65 lb
Power Consumption Box Dimensions (LxWxH) 29.75 x 23.5 x 14.25″
SKU DHD1075-GS
