TSD, Mixer, 2 Mic/Line, 1 SUM RCA

Ideal Use Cases

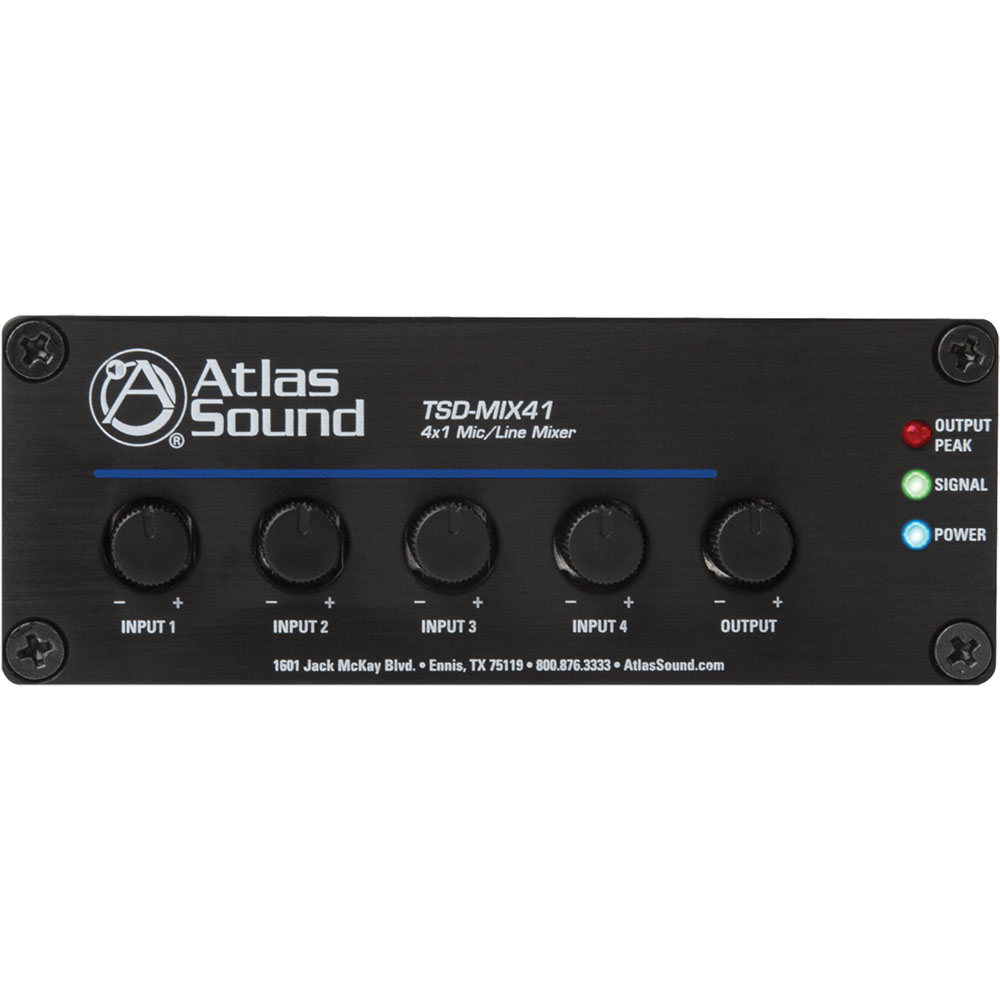

The AtlasIED TSD-MIX41 is a versatile solution for audio systems requiring the submixing or summing of multiple mic or line-level sources. Its 4-input, 1-output configuration is perfect for small installations where a full-sized mixer is unnecessary. Whether in a compact studio, small venue, or as part of a broader AV system, this mixer efficiently handles various input sources within a limited space.

Why Choose This Model

The TSD-MIX41 stands out due to its ability to handle both balanced and unbalanced signals, with input impedances of 1.2KΩ balanced and 600Ω unbalanced. The output impedance options (300Ω balanced, 150Ω unbalanced) ensure compatibility with a wide range of audio equipment. The defeatable 24VDC phantom power and 125Hz low-cut filter provide further flexibility, allowing users to tailor the mixer to specific needs without additional hardware.

• 4-input, 1-output configuration
• Defeatable 24VDC phantom power
• 125Hz, 12dB low-cut filter
• Compact size: 4″ W x 1.5″ H x 2.5″ D

Installation and Integration

With dimensions of just 4 x 1.5 x 2.5 inches and weighing only 6 ounces, the TSD-MIX41 fits seamlessly into space-limited environments. It operates on 24VDC at 60mA, making it easy to integrate into existing setups. The specified microphone gain of 46dB and line input level of 1V (0dBV) simplify the matching process with other audio components, ensuring a smooth installation experience.

Performance Highlights

The TSD-MIX41 delivers a frequency response of 20Hz to 20kHz, maintaining audio fidelity across the spectrum. With a total harmonic distortion of just .06% at 1kHz and signal-to-noise ratios of 85dBV (line-to-line) and 78dBV (mic-to-line), it ensures clean audio output. The selectable low-cut filter and phantom power enhance its adaptability to different audio setups.

What Makes It Different

Designed for simplicity and efficiency, the TSD-MIX41 focuses on combining essential features in a compact format. Unlike larger mixers, it doesn’t burden users with unnecessary channels, making it ideal for targeted applications. Its combination of core mixing functions, such as selectable filtering and phantom power, in a small chassis sets it apart in the market.

Final Assessment

The AtlasIED TSD-MIX41 is an excellent choice for audio professionals seeking a compact, reliable mixer for submixing tasks. Its balanced and unbalanced input options, comprehensive frequency response, and selectable features make it a wise investment for installations needing precise audio control without the complexity of larger systems. Backed by a 36-month warranty, it promises durability and performance.
