PoE+ Indoor Wall Mount IP Speaker with LCD Display and Talkback

{
"required_output": {
"description": "

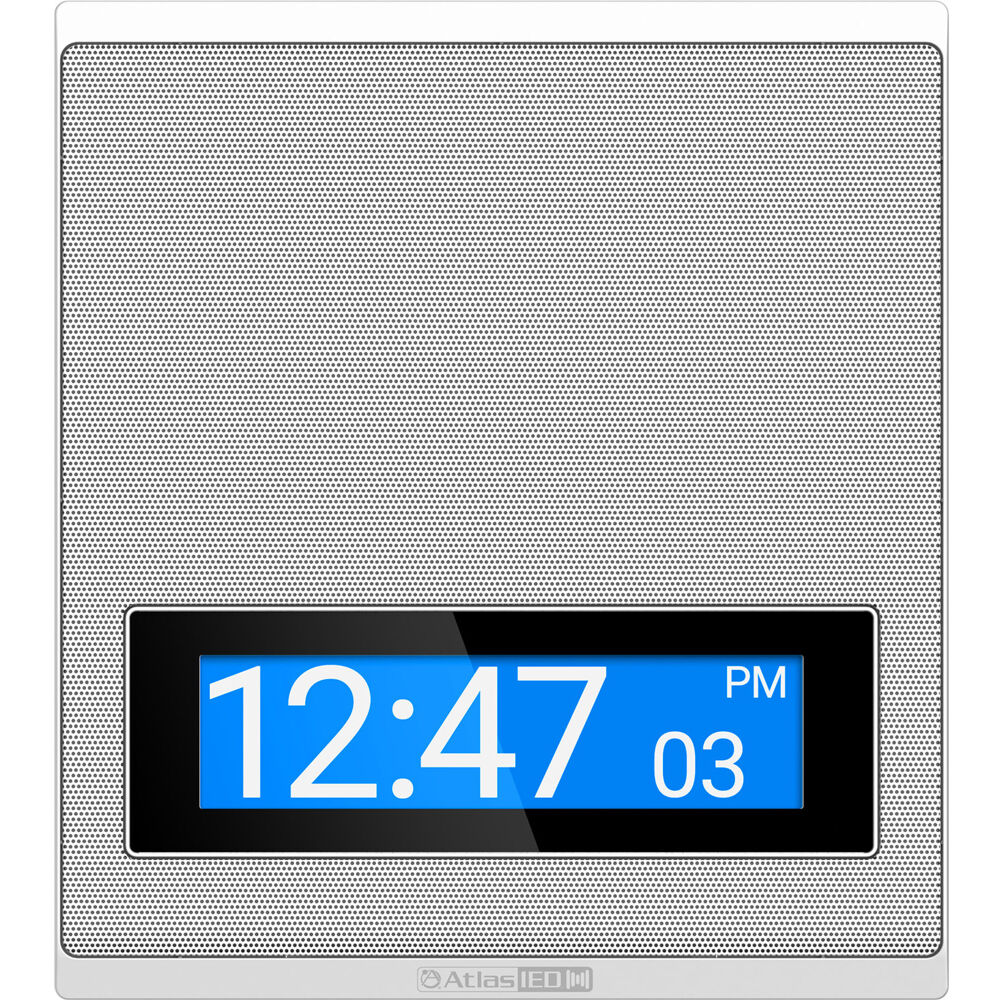

The AtlasIED IP-SDM is an advanced indoor wall-mount IP speaker that combines superior audio performance with visual display and communication capabilities. Equipped with an 8-inch low-frequency driver and a 1-inch high-frequency driver, this PoE+ enabled speaker features an LCD display and a talkback microphone, making it an ideal choice for environments that require more than just sound.

Ideal Use Cases

The IP-SDM is perfect for settings such as schools, corporate offices, and public spaces where clear audio, visual information, and efficient communication are crucial. Its capability to deliver spoken messages along with visual cues from a single point makes it invaluable in environments where immediate, clear communication is essential. The flexibility in mounting options further supports varied installation needs.

Why Choose This Model

This model stands out due to its excellent integration features. It supports both 802.3af and 802.3at power standards, allowing for a maximum power output of 12 watts and 25 watts, respectively. The RJ-45 connection and HTTP GUI make network integration straightforward, while the combination of audio, display, and communication tools meets diverse application needs. A substantial 60-month warranty ensures long-term reliability.

Installation and Integration

Measuring 14.37 inches in height, 12.87 inches in width, and 3.42 inches in depth, the IP-SDM is designed for ease of installation. It supports three mounting configurations: flush in-wall, straight surface on-wall, and slanted on-wall, facilitating versatile placement. The RJ-45 connection enables seamless network integration, and the HTTP GUI simplifies static configuration.

Performance Highlights

The IP-SDM offers a frequency response from 86 Hz to 15.5 kHz, with an average sensitivity of 98 dB SPL. Its 105-degree dispersion ensures broad coverage, making it effective in large spaces. The device integrates a 15-watt amplifier, optimizing sound quality and power efficiency. The dual PoE power ratings provide flexibility in power source selection, crucial for system design.

What Makes It Different

What sets the IP-SDM apart is its multifunctional design. Unlike typical speakers, it integrates a coaxial loudspeaker with an LCD display and a talkback microphone, creating a comprehensive communication endpoint. This combination, along with a durable powder-coated steel grille and versatile mounting options, makes it a unique solution for integrators looking for an all-in-one device.

Final Assessment

The IP-SDM is an excellent choice for projects demanding a sophisticated IP loudspeaker with added functionalities. Its broad frequency range, high sensitivity, and versatile installation options make it a compelling option for integrators. The decision to choose the IP-SDM should consider the project's specific audio, visual, and communication needs, ensuring that all requirements are met with a single, reliable device backed by AtlasIED's 60-month warranty.

",
"short_description": "The AtlasIED IP-SDM is an indoor wall-mount PoE+ speaker with an 8-inch LF and 1-inch HF coaxial driver, LCD display, and talkback microphone. It offers a frequency response of 86 Hz–15.5 kHz, 98 dB SPL sensitivity, and supports RJ-45 connectivity, making it ideal for environments requiring integrated audio and visual communication."
}
}
