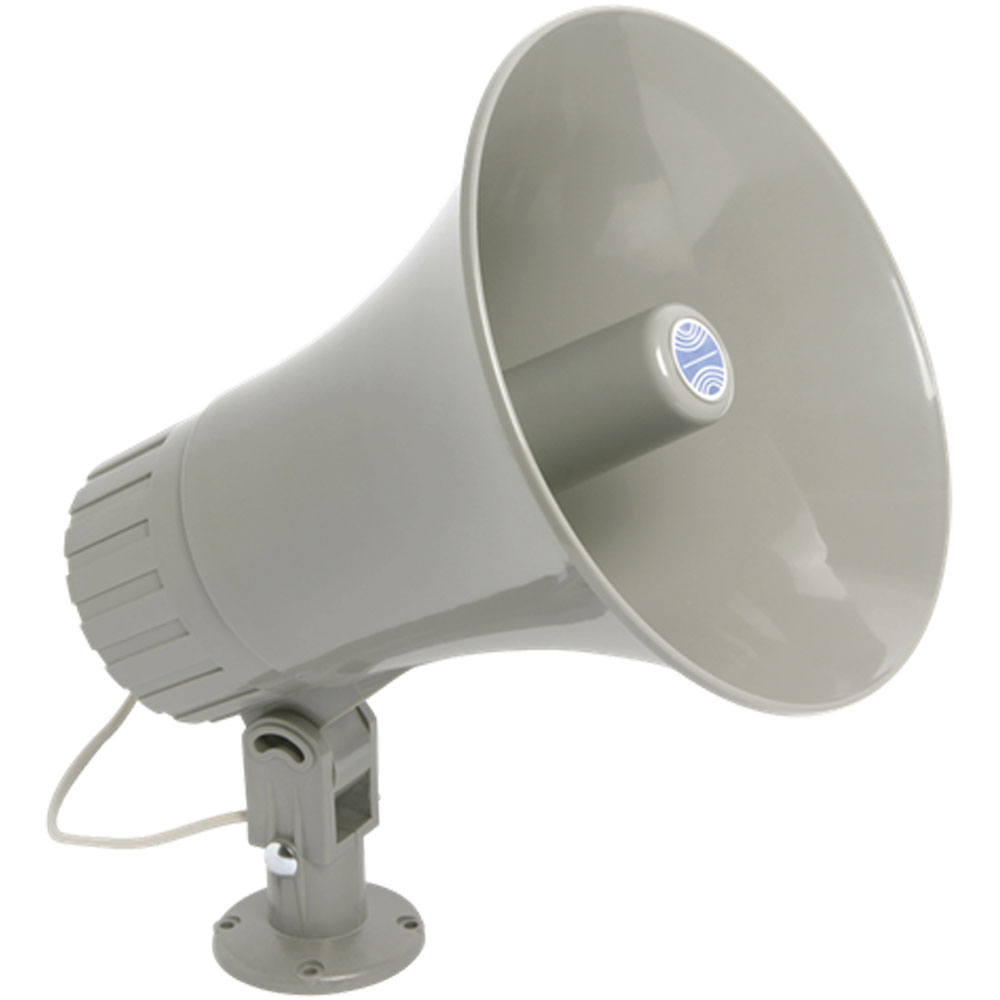

Re-entrant Horn Loudspeaker with 25V/70.7V-30W Transformer

Ideal Use Cases

The AtlasIED GA-30T is crafted for both indoor and outdoor paging applications. Its re-entrant horn design enables focused sound projection, making it perfect for environments requiring clear, direct announcements over a specific area. The 60° dispersion ensures sound coverage is both targeted and effective, ideal for spaces like warehouses, parking lots, and large public areas.

Why Choose This Model

Choosing the GA-30T means opting for a specialized loudspeaker that integrates seamlessly with 25V and 70.7V systems without the need for additional transformers. Its 103dB sensitivity ensures robust audio output, while the range of power taps—4, 8, 15, and 30 watts—provides flexibility to match the system's power needs. These features make it a reliable choice for consistent paging performance.

Installation and Integration

Designed for ease of integration, the GA-30T supports both 25V and 70.7V system voltages. Installers can select from 4, 8, 15, and 30-watt taps when using 70.7V systems, allowing for tailored audio output based on specific installation requirements. While the product does not include mounting hardware or environmental ratings, its compact design should facilitate straightforward installation in diverse settings.

Performance Highlights

Performance is at the core of the GA-30T, with key highlights including:

• Sensitivity: 103dB ensures clear, loud announcements.
• Frequency Response: 500Hz–3kHz, optimized for voice clarity.
• Dispersion: 60° for focused sound projection.
• Power Options: Multiple wattage taps (4, 8, 15, 30) under 70.7V operation.

These specifications underscore its suitability for environments where voice projection is critical.

What Makes It Different

The GA-30T stands out with its re-entrant compression horn construction paired with a dual-voltage transformer. Unlike general-purpose loudspeakers, it is purpose-built for paging, with features tailored to enhance voice communication. The customizable power settings within a single model provide versatility for installations with varied acoustic demands.

Final Assessment

The AtlasIED GA-30T is a top contender for paging applications, providing a reliable solution with its re-entrant horn design and dual-voltage compatibility. Its robust sensitivity, defined frequency range, and selectable power taps make it a practical choice for diverse environments. Supported by a 60-month warranty, it offers peace of mind and long-term value for paging system installations.
