Dual PoE+ IP Addressable IP-to-Analog Gateways with Integrated Amplifier

The AtlasIED IP-ZCM2RMK combines dual IP-addressable IP-to-analog gateways, integrated amplification, and a rack-mount kit in a 1RU package. It registers directly as a communication endpoint within InformaCast and SA-Announce Advanced Notification applications, allowing network-originated audio broadcasts to reach analog loudspeaker systems through WAN/LAN infrastructure. Its supported functions include advanced alerts, bell schedules, pre-recorded announcements, and scheduled announcements for both physical-security messaging and routine communications.

Ideal Use Cases

This model is suited to networked communication systems that need to connect IP-based announcement applications with analog speaker circuits. It is particularly relevant when InformaCast or SA-Announce Advanced Notification is already part of the communications environment and an addressable endpoint is required at the analog-audio side of the system. Supported announcement functions make it applicable to operations that use scheduled messaging, recurring bell schedules, recorded content, and immediate alerts. Output support for 8-ohm, 25V, and 70.7V systems accommodates multiple analog loudspeaker configurations.

Why Choose This Model

The IP-ZCM2RMK brings endpoint registration, IP-to-analog conversion, and amplification together in a dual-gateway rack configuration. Its amplifier is rated for a maximum of 15 watts into an 8-ohm load, while the available output formats include 8 ohms, 25V, and 70.7V. Power can be supplied by an IEEE 802.3af or IEEE 802.3at compliant PoE or PoE+ network switch, or by a local 24VDC power supply. This choice of power sources allows the gateway installation to follow the available network and electrical infrastructure without changing its core communication role.

Installation and Integration

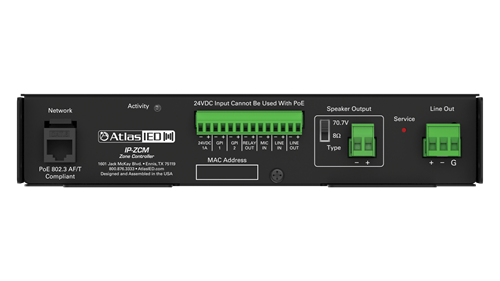

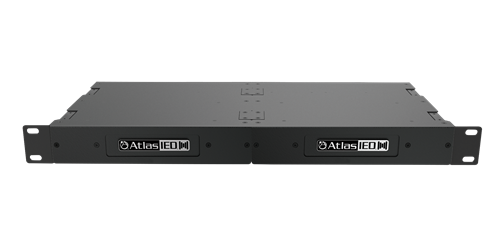

The supplied rack-mount configuration occupies 1RU and measures 19 inches wide, 1.75 inches high, and 8.85 inches deep. Metric dimensions are 482.6mm wide, 45mm high, and 224.8mm deep. The network input is an RJ-45 female connector located on the PCB, and network control requires a multicast-enabled network. Installers can power the unit from compliant PoE or PoE+ network switches or use a local 24VDC PSU where local power is preferred.

Static configuration is supported through an HTTP GUI or Cisco SRST. During system design, the selected analog output should be matched to the connected 8-ohm, 25V, or 70.7V loudspeaker circuit. For an 8-ohm load, the documented maximum power rating is 15 watts. The combination of direct application registration and multicast network operation positions the gateway as the transition point between supported notification software and the analog audio system.

Performance Highlights

The integrated amplifier delivers up to 15 watts into an 8-ohm load. Its three documented output formats provide compatibility with low-impedance 8-ohm systems and distributed 25V or 70.7V systems. Within supported InformaCast and SA-Announce Advanced Notification deployments, the gateway handles audio broadcasts used for urgent alerts and everyday communications. Pre-recorded material, scheduled announcements, and bell schedules can all be delivered through the WAN/LAN network architecture described for the product.

What Makes It Different

The defining feature of the IP-ZCM2RMK is its combination of two IP-addressable gateway functions, integrated amplification, and a 1RU rack-mount format. Direct registration as a communication endpoint within the supported applications reduces the conceptual gap between the notification platform and the analog output circuit. The product also provides two documented approaches to power: standards-compliant IEEE 802.3af or IEEE 802.3at network power and a local 24VDC PSU. Static configuration through an HTTP GUI or Cisco SRST adds further integration flexibility.

The unit is listed to 62368-1, CSA C22.2 No. 62368-1, and the IEC 62368-1 CB Scheme, with FCC listing also specified. These documented listings complement its network, power, output, and rack-integration specifications.

Final Assessment

The AtlasIED IP-ZCM2RMK is a focused solution for bringing InformaCast or SA-Announce Advanced Notification broadcasts into analog loudspeaker systems. Its best fit is a multicast-enabled network requiring dual IP-addressable gateways, integrated 15-watt amplification, selectable analog-system compatibility, and compact 1RU installation. Before deployment, confirm the required 8-ohm, 25V, or 70.7V output, the available PoE/PoE+ or 24VDC power source, and compatibility with the intended notification application. The product carries a 60-month warranty from the date of purchase.
