8IN 2FT x 2FT Drop Tile Ceiling PoE plus IP Loudspeaker Endpoint

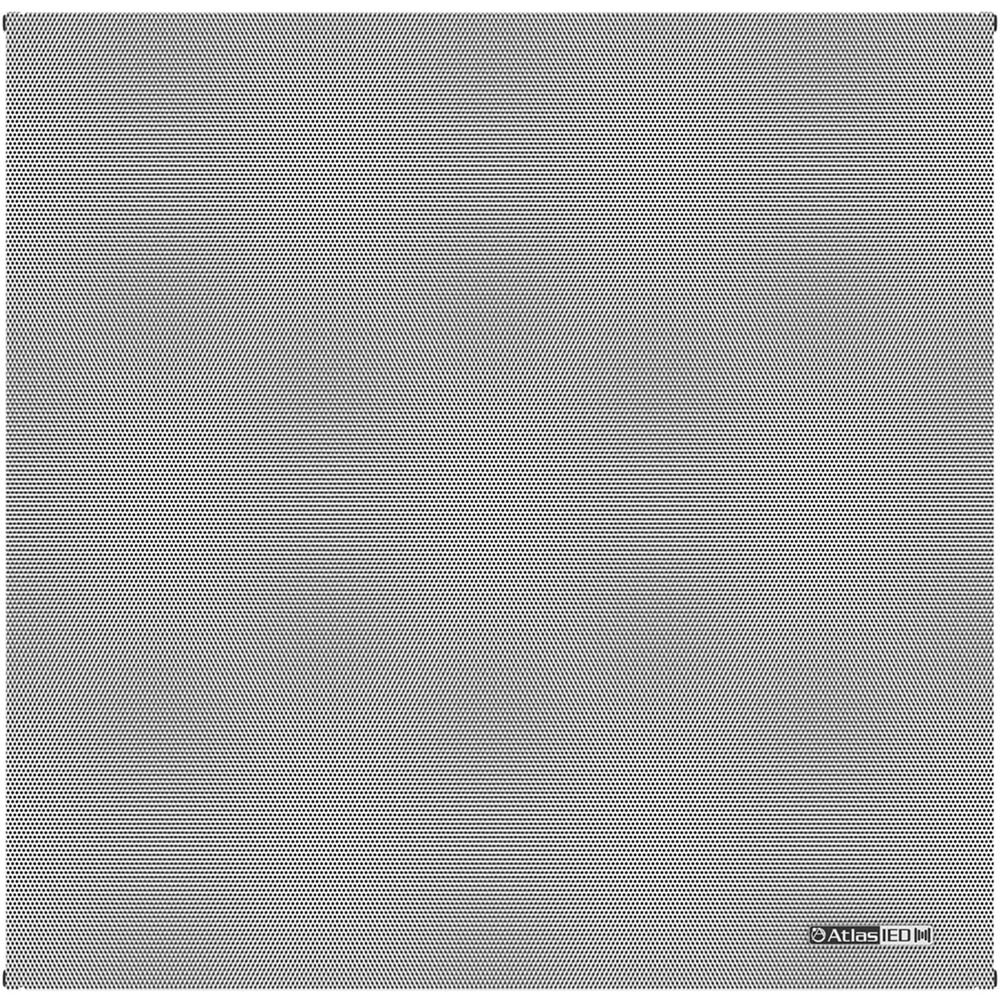

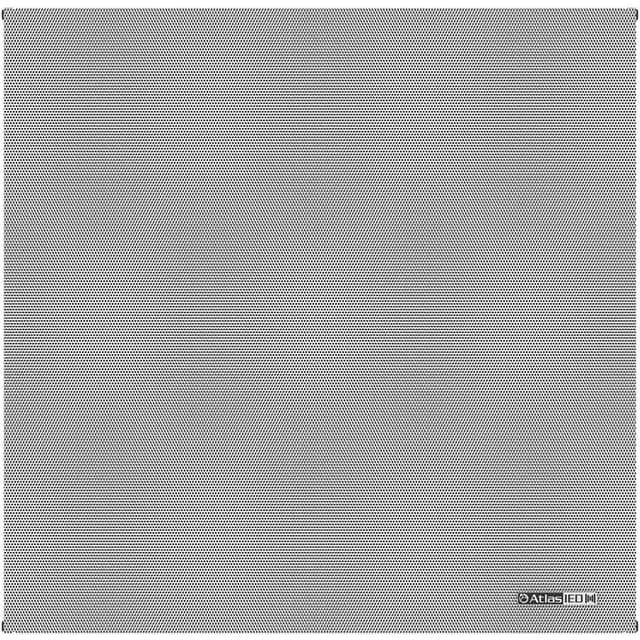

The AtlasIED IP-22SYSM is an indoor PoE+ IP loudspeaker endpoint designed for 2 x 2 suspended or drop-tile ceilings. Combining a coaxial 8-inch low-frequency driver, a 1-inch high-frequency driver, an integrated amplifier, and talkback capability, it supports network-based sound masking applications intended to improve acoustic privacy in commercial and corporate environments.

Ideal Use Cases

This model is intended for indoor commercial and corporate spaces that use 2 x 2 suspended ceiling systems and require an IP-based sound masking endpoint. Its ceiling-tile format integrates the loudspeaker into the overhead plane, while the included talkback microphone adds a return-audio capability. The 105-degree dispersion specification, measured at the 2kHz octave band at the -6dB points, is relevant when planning speaker placement and coverage across a room or defined ceiling area.

Why Choose This Model

The IP-22SYSM combines network connectivity, amplification, and a coaxial loudspeaker assembly in one ceiling-mounted endpoint. It accepts an RJ-45 connection and supports maximum power ratings of 12 watts with IEEE 802.3af or 25 watts with IEEE 802.3at. The supplied specifications also identify an integrated amplifier with 15 watts of total power and an 8-ohm primary speaker output. This combination makes the model a focused option for projects built around PoE or PoE+ infrastructure and AtlasIED IP-based sound masking.

Installation and Integration

With a height of 23.68 inches, width of 24.10 inches, and depth of 5.06 inches, the enclosure is sized for a 2 x 2 suspended-ceiling application. Metric dimensions are 601 x 612 x 129 millimeters. The listed shipping weight is 20.91 pounds, or 9.48 kilograms, which should be considered during receiving and installation planning. Network connection is provided through RJ-45, while an HTTP graphical user interface supports static configuration. The published compliance listing includes 62368-1, CSA C22.2 No. 62368-1, 2043, IEC 62368-1 CB Scheme, and FCC.

Performance Highlights

• Coaxial loudspeaker configuration with an 8-inch LF driver and 1-inch HF driver.
• Frequency response from 86Hz to 15.5kHz.
• Average sensitivity of 98dB SPL.
• 105-degree dispersion at the 2kHz octave band, measured at the -6dB points.
• Maximum power rating of 12 watts under 802.3af and 25 watts under 802.3at.
• Integrated amplifier specified at 15 watts total power.
• Talkback microphone capability for return audio.

These published values provide concrete criteria for comparing the IP-22SYSM with other ceiling endpoints and for assessing its compatibility with the intended network and acoustic design.

What Makes It Different

The distinguishing feature of the IP-22SYSM is its combination of a full 2 x 2 suspended-ceiling form factor and IP endpoint functionality. Rather than presenting only a conventional passive ceiling speaker specification, it incorporates PoE/PoE+ power ratings, RJ-45 connectivity, static configuration through an HTTP GUI, integrated amplification, and talkback. Its coaxial driver arrangement supplies separate listed LF and HF driver sizes within the same endpoint, while the published dispersion, sensitivity, and frequency-response values support informed system planning.

Final Assessment

The AtlasIED IP-22SYSM is a purpose-built indoor ceiling loudspeaker endpoint for IP-based sound masking in commercial and corporate environments. It is most relevant where a 2 x 2 suspended-ceiling format, PoE+ capability, talkback, static network configuration, and documented acoustic performance are required. A 60-month warranty from the date of purchase further defines the manufacturer-provided coverage period.
