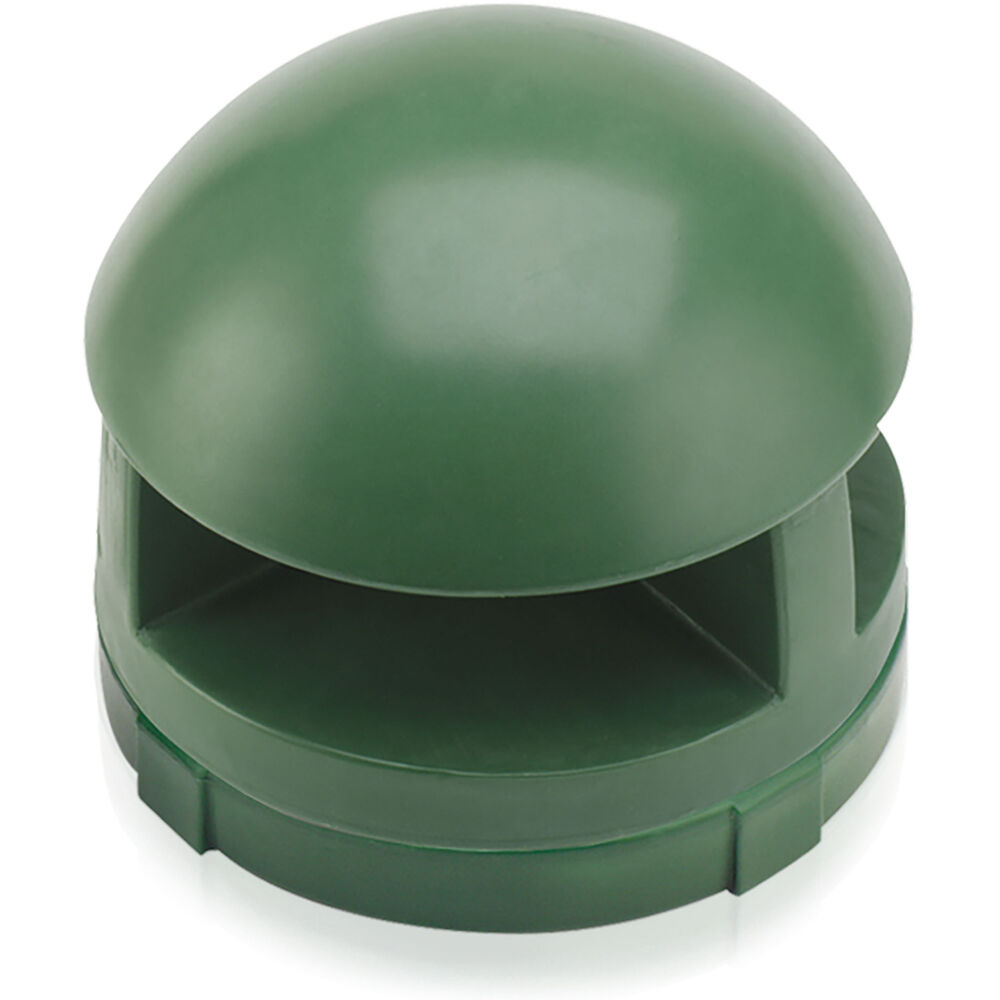

All Weather Outdoor Landscape Speaker with 32-Watt 70V Transformer

The AtlasIED GSH-G is an all-weather outdoor landscape loudspeaker equipped with a 70V transformer and designed for use with either a GSBS-G or GSBT-G base. Its deck-mount configuration combines selectable 8, 16, and 32-watt transformer taps with an 8-ohm bypass. Published performance specifications include a 43 Hz–20 kHz frequency response, 83.5 dB sensitivity, and a 360-degree horizontal by 50-degree vertical dispersion pattern.

Ideal Use Cases

This speaker is intended for outdoor landscape applications that call for an all-weather loudspeaker and a 70V transformer. Its 360-degree horizontal dispersion makes it relevant when sound must radiate around the speaker rather than project in only one horizontal direction. The 50-degree vertical specification defines the corresponding vertical coverage. The deck-mount design and compatibility with GSBS-G or GSBT-G bases provide a clearly identified foundation for planning the installation.

The GSH-G can also be considered for systems requiring a choice among several transformer settings. Available 8, 16, and 32-watt taps let the installer select from the stated 70V options, while the 8-ohm bypass accommodates an installation designed around that impedance.

Why Choose This Model

The GSH-G provides a concise set of configuration choices without obscuring the primary specifications. Its integrated 70V transformer offers three published power taps: 8 watts, 16 watts, and 32 watts. An 8-ohm bypass adds another connection option for systems that do not use one of those transformer taps.

Its acoustic specifications are equally direct. The stated response extends from 43 Hz to 20 kHz, while sensitivity is rated at 83.5 dB at 1 watt and 1 meter using a half-space reference. These figures give system designers concrete values for comparing the speaker with the requirements of a proposed landscape installation.

Installation and Integration

The speaker type is specified as deck-mount. Installation planning should include either the GSBS-G or GSBT-G base, as the GSH-G is designed for use with those two base options. The selected base can therefore be matched to the planned landscape application before the speaker is integrated into the system.

For a 70V installation, the available tap choices are 8, 16, and 32 watts. If the project calls for an 8-ohm configuration, the specified bypass provides that alternative. The source data does not state dimensions, weight, wiring details, operating temperature, or included accessories, so those items should be confirmed separately when finalizing the installation plan.

Performance Highlights

The published 43 Hz–20 kHz frequency response covers the model's stated operating range. Its sensitivity rating is 83.5 dB at 1W/1m, measured with a half-space reference. Together, these specifications provide the available baseline for evaluating response and output requirements.

Dispersion is rated at 360 degrees horizontally and 50 degrees vertically. This pattern defines complete horizontal radiation around the speaker with a more focused vertical spread. The maximum listed transformer tap is 32 watts, accompanied by 16-watt and 8-watt selections. These choices allow the specified tap to be selected during system setup.

What Makes It Different

The GSH-G brings several specifically documented capabilities into one outdoor landscape speaker: an all-weather design, deck-mount format, integrated 70V transformer, three selectable wattage taps, and an 8-ohm bypass. It also has an explicitly stated omnidirectional horizontal dispersion specification rather than an unspecified coverage pattern.

Compatibility is defined around the GSBS-G and GSBT-G bases, making the relevant base families clear. The product is also covered by a warranty period of 60 months from the date of purchase, adding a documented ownership consideration to its installation and performance specifications.

Final Assessment

The AtlasIED GSH-G is a focused choice for outdoor landscape systems requiring an all-weather, deck-mount speaker with a 70V transformer. Its 8, 16, and 32-watt taps, 8-ohm bypass, 43 Hz–20 kHz response, and 360-degree horizontal dispersion provide the essential details needed for system evaluation. Pair it with a GSBS-G or GSBT-G base according to the planned application.
