Ideal Use Cases

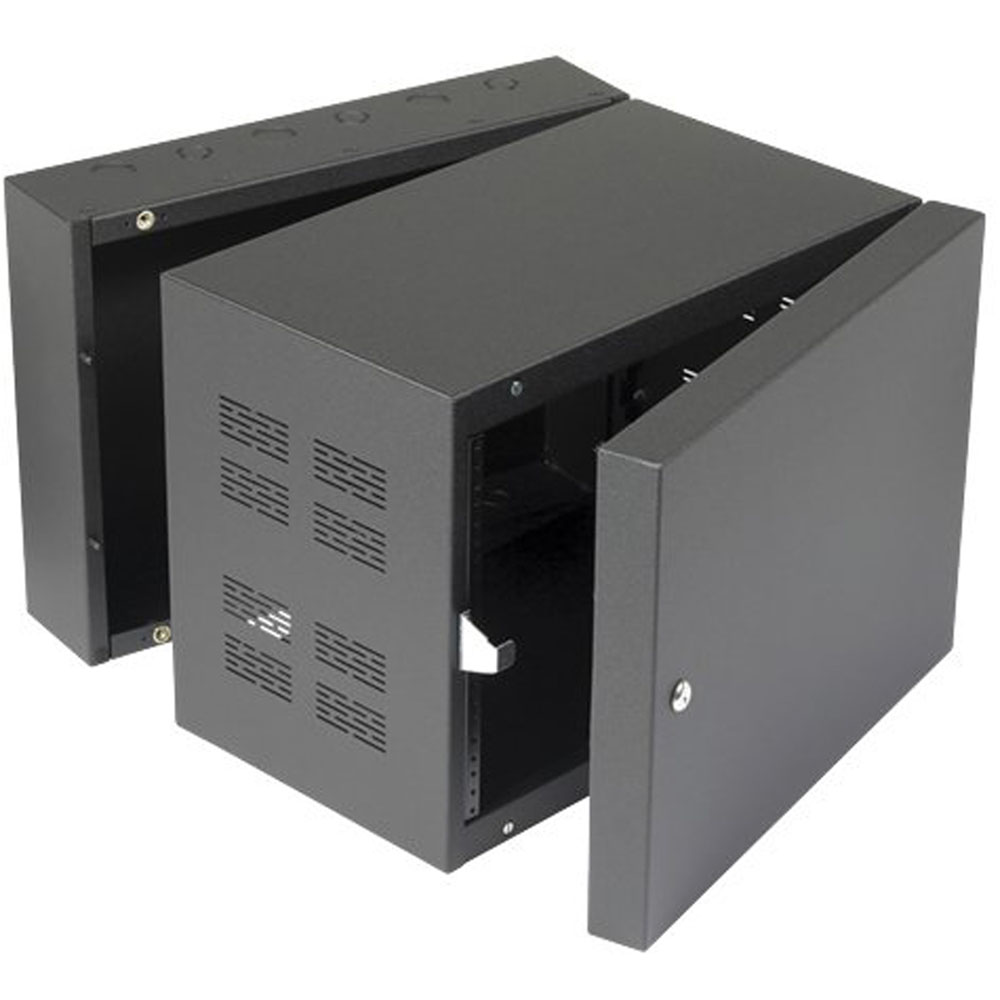

The AtlasIED 307-12 is a stand-alone wall-mount equipment cabinet for installations requiring 7RU of rack space and a 12-inch usable depth. Its 19-inch-wide opening and adjustable rails accommodate compatible rack-mounted equipment while keeping the installation organized on a wall. This model is especially relevant when the selected components fit within its defined rack capacity and center-section depth.
The cabinet is also suited to projects where its external dimensions can be planned before installation. It measures 15 1/4 inches high, 20 5/8 inches wide, and 18 1/2 inches deep. These measurements provide the information needed to evaluate the cabinet against available wall space, nearby equipment, and other physical constraints.
Why Choose This Model
The 307-12 combines a specific 7RU capacity with adjustable rails and a clearly stated 12-inch center-section depth. This focused configuration helps simplify product selection when the rack-unit requirement and equipment depth are already known. Rather than relying only on the cabinet's overall depth, installers can compare components directly with the listed usable depth.
AtlasIED also provides a warranty period of 60 months from the date of purchase. The combination of defined rack capacity, published dimensions, adjustable rails, and stated warranty coverage gives buyers concrete criteria for comparing this cabinet with other wall-mount rack options.
Installation and Integration
Before installation, confirm that the intended equipment does not exceed the available 7RU rack space or the 12-inch usable center-section depth. The cabinet's overall depth is 18 1/2 inches, which is different from its listed usable depth. Accounting for both measurements is important when planning wall placement and checking how the cabinet will fit within the surrounding area.
The adjustable rails allow the rack position to be configured for compatible equipment. The opening is identified as 19 inches wide, while the complete cabinet measures 20 5/8 inches across. Its 15 1/4-inch height and 18 1/2-inch overall depth should be considered alongside the installation location before mounting begins.
The published shipping weight is 55.67 pounds, or 25.25 kilograms. This value should be used as shipping-weight information when planning receipt and handling; the supplied specifications do not identify a separate installed or net weight.
Performance Highlights
The primary performance characteristics of this cabinet are its physical capacity and adjustability. Seven rack units provide a defined amount of vertical equipment space, while the adjustable rails support integration with compatible rack-mounted components. The 12-inch center section establishes the usable depth available for equipment selection.
- 7RU rack capacity
- 19-inch-wide rack opening
- Adjustable equipment rails
- 12-inch usable center-section depth
- 15 1/4-inch overall height
- 20 5/8-inch overall width
- 18 1/2-inch overall depth
Metric measurements are also supplied: 38.74 centimeters high, 52.39 centimeters wide, and 46.99 centimeters deep. These published values make it possible to plan the installation using either measurement system without estimating the cabinet's size.
What Makes It Different
The distinction between the cabinet's 18 1/2-inch overall depth and its 12-inch usable center-section depth is an important selection detail. It provides a more precise basis for checking equipment compatibility than the exterior measurement alone. Buyers can evaluate both the space occupied by the cabinet and the depth available within its center section.
This model also brings together a stand-alone wall-rack design, adjustable rails, a 19-inch-wide opening, and 7RU capacity in one specified configuration. Its model-specific dimensions distinguish it from cabinets with different rack heights or center-section depths, making the 307-12 easy to identify for a planned rack layout.
Final Assessment
The AtlasIED 307-12 is a practical match for a wall-mounted rack installation that calls for seven rack units and no more than 12 inches of usable equipment depth. Its adjustable rails provide configuration flexibility, while the published exterior dimensions support accurate placement planning.
For the best fit, compare every intended component with the 7RU capacity, 19-inch opening, and 12-inch center-section depth before purchase. With a published shipping weight of 55.67 pounds and a 60-month warranty from the date of purchase, this model presents a clearly documented option for compatible wall-rack requirements.
