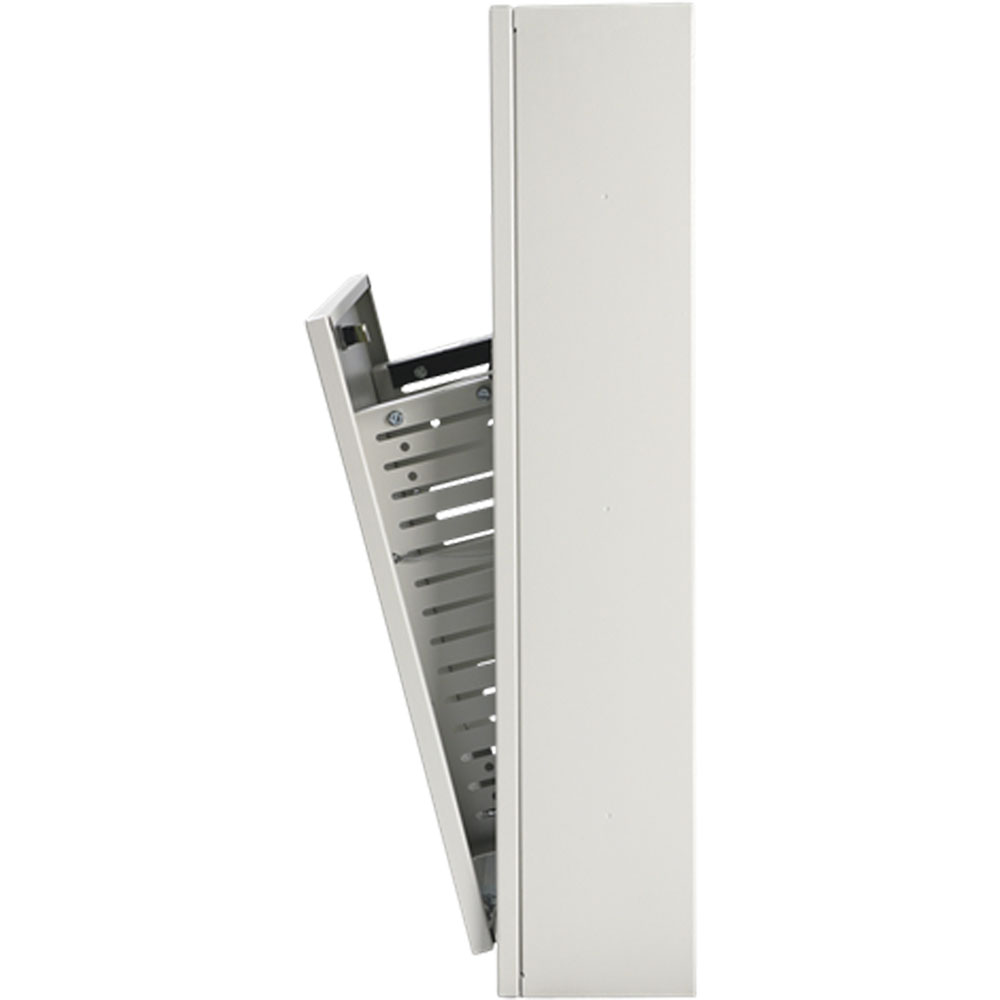

The AtlasIED AWR3W is a tilt-out wall cabinet designed for mounting 19-inch remote amplifiers and control equipment. It provides 3RU of vertical rack space while addressing installations where available room and equipment security are important considerations. Published dimensions are 34 inches high, 27 inches wide, and 6.55 inches deep, with 17 1/4 inches of usable equipment depth.
Ideal Use Cases
This cabinet is intended for systems that need a compact, wall-based location for rack equipment. Its 3RU capacity is suited to small groups of compatible 19-inch components rather than a full-size equipment rack. AtlasIED specifically identifies remote amplifiers and control equipment as appropriate applications.
The wall-cabinet format can be considered when floor space is limited or when equipment should be placed within a defined installation area. Before selecting the AWR3W, confirm that the intended components fit within the available 3RU rack space and the stated 17 1/4-inch usable depth.
Why Choose This Model
The AWR3W combines support for standard 19-inch equipment with a tilt-out wall-cabinet configuration. This makes it a focused choice for installations that do not require the capacity of a larger freestanding enclosure. The cabinet offers three rack units of vertical space, providing a clear capacity specification for planning an amplifier or control-equipment installation.
Its dimensional information also supports precise site preparation. The enclosure is listed at 34 inches in height, 27 inches in width, and 6.55 inches in depth. A shipping weight of 57 pounds is specified, which should be considered when arranging delivery, handling, and installation.
Installation and Integration
Installation planning should begin with the wall location, cabinet dimensions, and the size of every component to be housed. Verify that the site can accommodate the cabinet’s 34-inch height and 27-inch width while maintaining the required installation access. The listed 6.55-inch cabinet depth and 17 1/4-inch usable equipment depth should be reviewed independently when checking the physical requirements of the selected equipment.
Integration is intended around compatible 19-inch rack equipment. The three available rack units should be allocated before installation so that the complete equipment set fits the cabinet. Details concerning mounting hardware, cable routing, ventilation, locking provisions, electrical connections, and included accessories are not provided, so those requirements should be confirmed separately for the planned system.
Performance Highlights
The principal performance characteristic of this model is its defined equipment capacity: 3RU of vertical rack space for 19-inch components. Its usable depth is specified as 17 1/4 inches, or 43.815 cm. These measurements allow installers to compare the cabinet directly with the rack-unit height and chassis depth of remote amplifiers or control devices.
For projects documented in metric measurements, the listed cabinet dimensions are 86.36 cm high and 68.58 cm wide, with a stated depth of 166 mm. The listed shipping weight is 25.85 kg. These values provide concrete planning information for equipment selection, transport, and placement.
What Makes It Different
The AWR3W is defined by its combination of wall installation, tilt-out cabinet design, 19-inch equipment compatibility, and compact 3RU capacity. Rather than serving as a general storage cabinet, it is purpose-described for remote amplifiers and control equipment. This specialized format helps narrow the selection process for projects requiring only a small amount of rack space.
AtlasIED also specifies a warranty period of 60 months from the date of purchase. This published warranty duration adds a clear ownership consideration when comparing compatible equipment cabinets.
Final Assessment
The AtlasIED AWR3W is a purpose-built option for housing a compact selection of 19-inch rack equipment in a wall-based, tilt-out cabinet. Its 3RU capacity, 17 1/4-inch usable depth, published overall dimensions, shipping weight, and 60-month warranty provide the essential details needed for an initial fit assessment. Confirm component dimensions and all site-specific installation requirements before purchase.
