3-Input, 50-Watt Mixer Amplifier with Automatic System Test

Ideal Use Cases

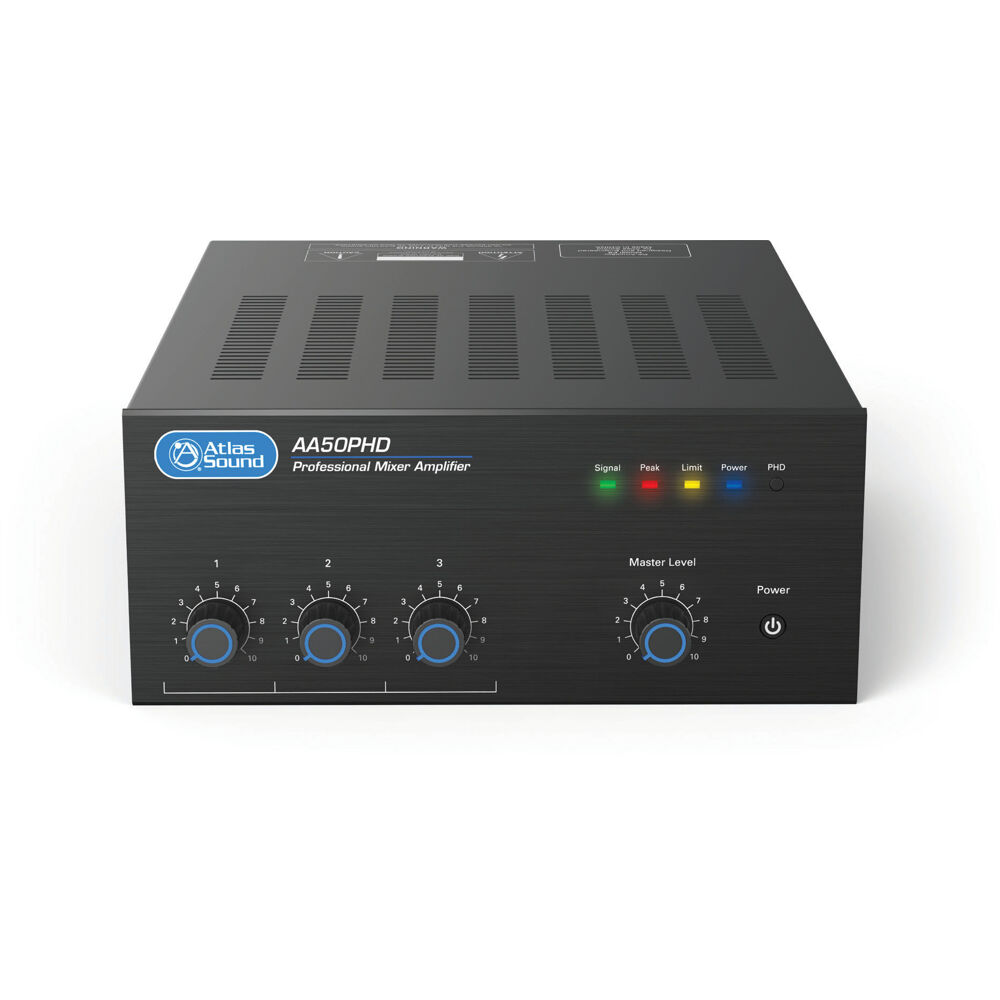

The AtlasIED AA50PHD is a three-input, 50-watt mixer amplifier designed for distributed business paging and background music systems. It is suited to installations where announcements and program audio share a speaker system and where connected speaker lines need to be checked before regular operation. Support for 25V, 70.7V, and 4Ω speaker systems accommodates the output formats specified for this model. Remote Input Selection and Remote Level control also provide a way to manage the selected source and listening level from a remote control point.

Why Choose This Model

A central feature of the AA50PHD is its Push Here Diagnostic technology. Once the speakers are connected, the test can be activated to check the speaker lines for wiring and impedance errors. The circuit automatically verifies that the connected speakers’ combined tap settings do not exceed the amplifier’s rated power, that no speakers are mistakenly tapped at 8Ω, and that the speaker wiring is free from shorts.

The amplifier also supports paging-priority operation. It can be configured to mute Inputs 2, 3, and 4 when a signal is detected from Input 1, allowing other connected sources to be silenced during a page. Input 1 can be selected for microphone-level or line-level operation, and phantom power is available as an option when Input 1 is used in microphone mode.

Installation and Integration

Rear-mounted DIP switches provide access to system configuration functions. The supplied product data identifies the ability to create a Zone 2 output using Input 1, 2, 3, or 4. This configuration capability can be combined with the paging-mute function to establish the required source and priority behavior for the installation.

Connections use a four-position Phoenix connector with 3.5mm pitch. The amplifier measures 8.27 inches wide, 3.66 inches high, and 10.87 inches deep, with corresponding metric dimensions of 210mm by 93mm by 276mm. Voltage compatibility is listed as 110V to 120V. The listed unit weight is 10.5ib, while the shipping weight is 12.4lb. These specifications provide the necessary information for planning equipment placement, connection access, and shipment handling.

Performance Highlights

The AA50PHD delivers 50 watts of output power into 25V, 70.7V, or 4Ω speaker systems. At 4Ω, its stated maximum average output is 50W RMS across 50Hz to 15kHz with 0.5% total harmonic distortion. The specified frequency response is 50Hz to 15kHz.

• 50W RMS output at 4Ω under the stated measurement conditions
• Output support for 25V, 70.7V, and 4Ω speaker systems
• 50Hz to 15kHz frequency response
• Selectable microphone or line operation on Input 1
• Optional phantom power for the Input 1 microphone setting
• Signal-activated muting of Inputs 2, 3, and 4 from Input 1
• Remote Input Selection and Remote Level control

What Makes It Different

The AA50PHD combines audio mixing, paging priority, speaker-system output options, and an automatic diagnostic process in one unit. Its PHD test is specifically focused on connected speaker-line conditions rather than providing only a general operating indication. It checks amplifier loading through speaker tap settings, identifies an incorrect 8Ω tap condition, and checks for shorted speaker wiring. The rear DIP-switch configuration, Zone 2 selection, and remote input and level functions extend that system-focused design beyond basic amplification.

Final Assessment

For a distributed business paging or background music system, the AA50PHD brings together 50-watt amplification, 25V, 70.7V, and 4Ω output compatibility, paging-source muting, and configurable Input 1 operation. Its automatic speaker-line test addresses the supplied installation checks for tap loading, mistaken 8Ω settings, and wiring shorts. With rear-panel configuration, remote source and level control, a documented 50Hz to 15kHz response, and a 36-month warranty from the date of purchase, it provides a clearly defined set of functions for paging and BGM integration.
