12" 2-Way Passive Portable Speaker

Ideal Use Cases

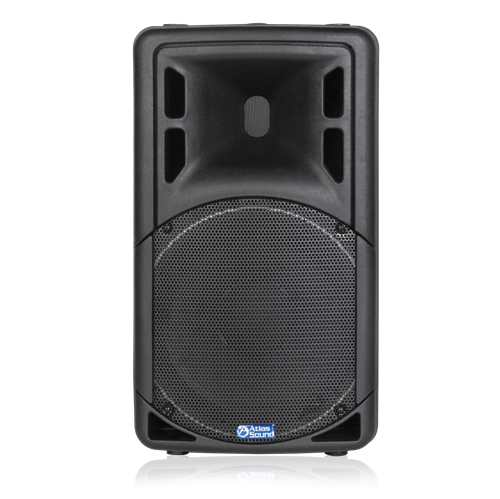

The AtlasIED SMP-12 is a 12-inch, 2-way passive portable loudspeaker intended for paging and music applications. Its passive design supports systems built around an external amplifier, and it can also be used in conjunction with an AtlasIED SMA-12 powered loudspeaker. This makes the SMP-12 suitable when a system requires a portable speaker that can operate as part of an amplified loudspeaker configuration. Its 90° x 40° dispersion provides a defined coverage pattern, while the black textured finish gives the enclosure a neutral appearance for a range of application environments.

Why Choose This Model

The SMP-12 combines a 250-watt RMS power rating with an 8-ohm impedance, giving system designers clear specifications for matching the loudspeaker to compatible amplification. Its published sensitivity is 97dB, and its frequency response extends from 77Hz to 17.5kHz. Together, these specifications establish the model’s performance parameters for voice paging and music playback. The 2-way configuration divides reproduction across its loudspeaker design, while the portable enclosure format allows the unit to be incorporated into systems where equipment placement may change between applications.

Installation and Integration

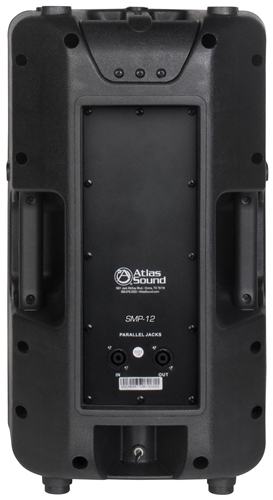

As a passive loudspeaker, the SMP-12 is designed to be used with appropriate external amplification rather than as a self-powered standalone system. It may be paired with an AtlasIED SMA-12 powered loudspeaker or connected within a system using an external amplifier. The specified 8-ohm impedance and 250-watt RMS rating provide the essential electrical references for planning that integration. Connector types, included cables, mounting hardware, and specific mounting methods are not identified in the supplied product information, so those requirements should be confirmed for the intended installation.

The enclosure measures 23.43 inches high, 12.99 inches wide, and 11.69 inches deep, with corresponding metric measurements of 595 x 330 x 297mm. Its listed weight is 29 lbs. (17.7kg). These dimensions can be used when planning placement, transport, storage, or the space allocated to the loudspeaker within a portable audio system.

Performance Highlights

The SMP-12 is rated for 250 watts RMS and has a published sensitivity of 97dB. Its specified 77Hz–17.5kHz frequency response defines the reproduced frequency range, while the 90° horizontal by 40° vertical dispersion specification describes its directional coverage. These figures provide concrete references for comparing the loudspeaker with system requirements and other components.

For paging applications, the 2-way design and stated coverage pattern give installers defined operating parameters for distributing voice content. For music applications, the published frequency range and power rating help establish how the SMP-12 fits into the intended audio system. Actual system operation will also depend on the amplifier and overall configuration used with the passive loudspeaker.

What Makes It Different

The SMP-12 is distinguished by its combination of passive operation, portable construction, and specified compatibility with the AtlasIED SMA-12 powered loudspeaker. Rather than requiring every loudspeaker position to contain its own stated amplification, this model can be incorporated where an SMA-12 or an external amplifier supplies the required power. Its black textured injection-molded polypropylene finish defines both the enclosure material and exterior treatment. The 12-inch format, 2-way configuration, and published 90° x 40° dispersion bring the principal acoustic and physical characteristics together in one portable model.

Final Assessment

The AtlasIED SMP-12 is a focused choice for portable paging and music systems that need a 2-way passive loudspeaker. Its key specifications include 250-watt RMS power handling, 8-ohm impedance, 97dB sensitivity, a 77Hz–17.5kHz frequency response, and 90° x 40° dispersion. Compatibility with the AtlasIED SMA-12 powered loudspeaker and support for use with an external amplifier provide two stated approaches to system integration. A 36-month warranty from the date of purchase completes the supplied product specification.
