Mini Lapel Clip Mic 39in Cord

Ideal Use Cases

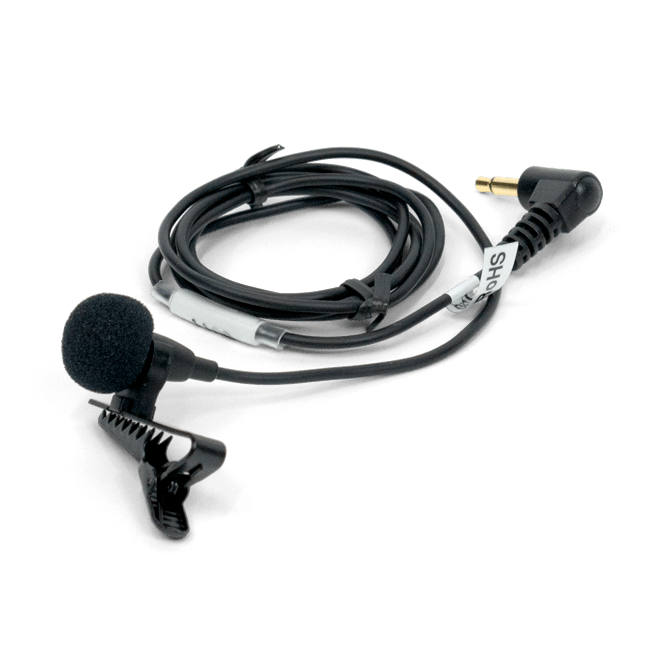

The Williams AV MIC 090 is a mini lapel clip microphone specified for use with the PPA T27 transmitter. Its format fits applications that call for microphone placement at the lapel, a 39-inch cable run, and a 3.5 mm mono connection. The omni-directional pickup pattern receives sound from around the microphone rather than from one specified direction. Its black finish, 0.05 lb weight, and identified clip arrangement support a compact wearable setup. Clearly stated transmitter compatibility, connector style, signal format, and cable length make it possible to compare the MIC 090 directly with the requirements of an existing system.

Why Choose This Model

This model combines an electret-condenser element with a 1.5 kΩ impedance, 20 Hz–18 kHz frequency response, 79 dB dynamic range, and 63 dB signal-to-noise ratio. Its specified sensitivity is 56 ± 3 dB. These figures provide concrete electrical and audio-performance values for system matching, while the omni-directional pattern defines the microphone’s pickup behavior. The MIC 090 is listed as not phantom powered. Its 39-inch cord establishes the available cable reach, and the right-angle plug provides a precisely documented connector configuration rather than leaving plug orientation unspecified.

Installation and Integration

Connect the right-angle 3.5 mm mono plug to the PPA T27 transmitter identified for this microphone. Position the miniature microphone at the lapel using the CLP 090 microphone clip specified for the model, then route the 39-inch cord between the microphone and transmitter. Because the MIC 090 is not phantom powered, it should be integrated according to the stated PPA T27 application rather than treated as a phantom-powered microphone. Compatibility with other transmitters, adapters, or input standards is not specified. For ongoing maintenance, the documented replacement windscreen is the WND 006, and the documented replacement microphone clip is the CLP 090.

Performance Highlights

The electret-condenser element operates with an omni-directional pickup pattern and a frequency response spanning 20 Hz to 18 kHz. A specified dynamic range of 79 dB and signal-to-noise ratio of 63 dB provide measurable performance references for evaluating the microphone. Sensitivity is specified at 56 ± 3 dB, while impedance is rated at 1.5 kΩ. The output configuration is mono through a 3.5 mm right-angle plug. Together, these specifications describe the MIC 090’s acoustic pickup, electrical characteristics, connector format, and operating range without relying on unspecified performance claims.

What Makes It Different

The MIC 090 brings several application-specific details together in one compact lapel model: PPA T27 transmitter use, a 39-inch attached cord, a right-angle 3.5 mm mono plug, and an omni-directional electret-condenser element. Replacement components are identified by exact model numbers, simplifying the selection of a WND 006 windscreen or CLP 090 clip when either part needs replacement. The microphone is finished in black, weighs 0.05 lb, and carries RoHS approval. Williams AV also specifies a 90-day warranty, providing a defined coverage period for the product.

Final Assessment

The Williams AV MIC 090 is a focused choice for a PPA T27 setup requiring a miniature omni-directional lapel microphone with a 39-inch cord and right-angle 3.5 mm mono plug. Its 20 Hz–18 kHz frequency response, 79 dB dynamic range, 63 dB signal-to-noise ratio, and 1.5 kΩ impedance give buyers concrete criteria for system matching. The documented CLP 090 replacement clip and WND 006 replacement windscreen also provide clear references for future upkeep. Before ordering for another application, confirm compatibility because only use with the PPA T27 transmitter is specified.
