WUXGA 24000 LUMENS LASER, NO LENS

The Vivitek DU8057Z is a large-venue projector built around a next-generation projection platform with HEP DMD, dual-laser illumination, and single-chip DLP technology from Texas Instruments. It delivers 24,000 ANSI lumens, native WUXGA 1920 × 1200 resolution, and support for input resolutions up to 4K UHD 3840 × 2160. This DU8057Z-BK configuration is supplied without a lens, allowing the projection optics to be selected for the installation.

Ideal Use Cases

This model is intended for large venues and professional environments that require substantial brightness, detailed widescreen images, and flexible signal handling. Its 24,000-lumen output is suited to applications where a high-output projection platform is essential. Native 16:10 WUXGA resolution supports detailed presentations and visual content, while compatibility with SDTV, EDTV, HDTV, 1080p, and 4K UHD sources accommodates a broad range of established and current video workflows.

Why Choose This Model

The DU8057Z combines high brightness with a 3,000,000:1 full on/off contrast ratio and a dual-laser light source rated for 30,000 hours. Instant on/off operation eliminates the need for preheating or post-cooling, helping simplify routine operation. The projector also offers extensive installation controls, professional connectivity, and nine optional lenses. Together, these capabilities make it a versatile foundation for purpose-built large-venue projection systems.

Installation and Integration

Nine optional lenses cover throw ratios from 0.31:1 to 6.94:1, enabling the optics to be matched to different room dimensions and projection distances. No lens is included with this SKU. Motorized zoom and motorized lens shift support installation adjustment, with a specified shift range of ±60% vertically and ±20% horizontally. Horizontal keystone correction extends to ±60 degrees, while vertical keystone correction extends to ±40 degrees.

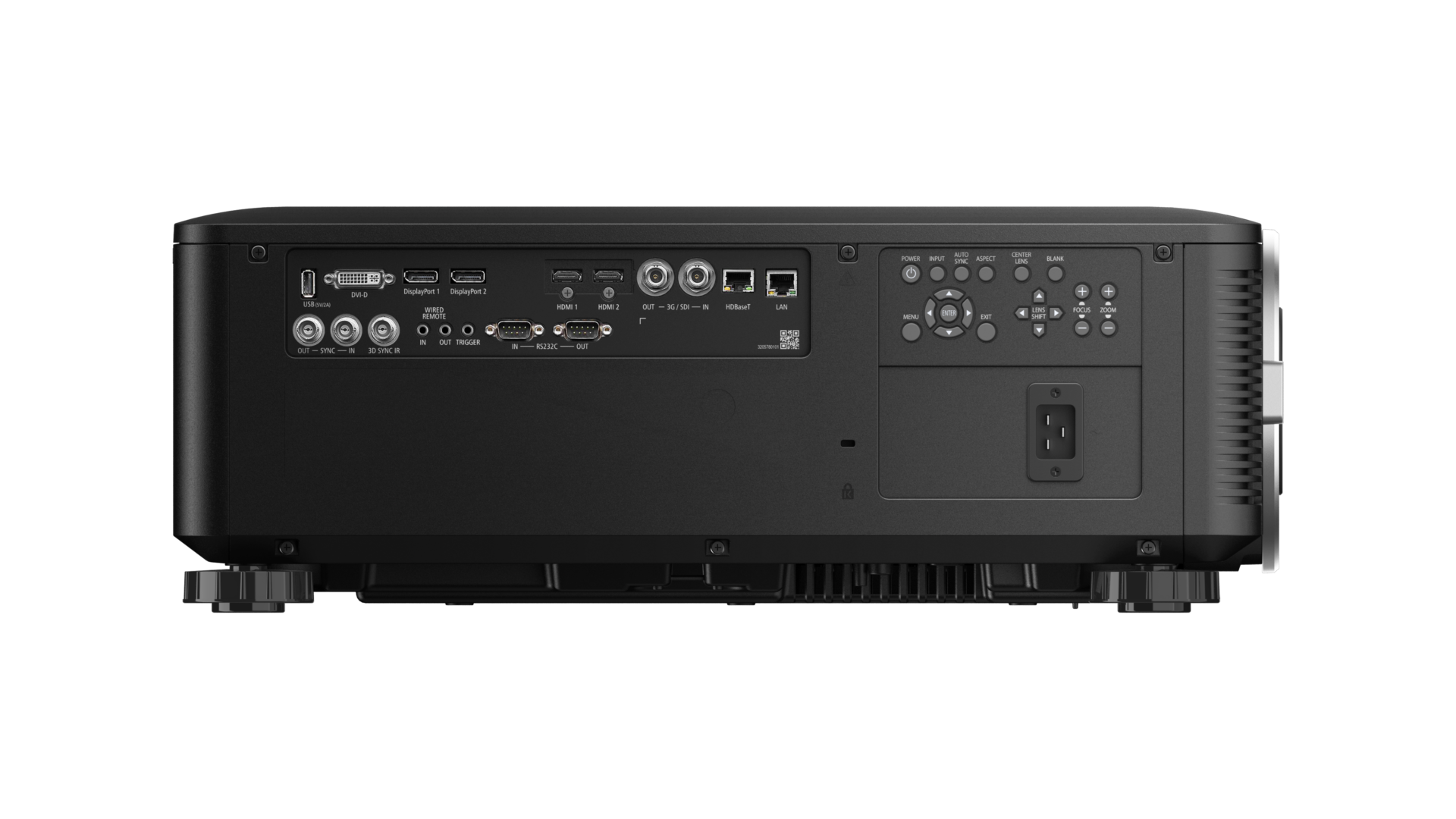

Signal and control connections include two HDMI ports, two DisplayPort inputs, DVI-D, 3G-SDI, a wired remote jack, USB-B for service, and a USB-A power-only port rated at 5 V/2 A. Network and long-distance integration options include one RJ45 LAN connection and one HDBaseT connection. Two RS-232 connections provide input and output, while two 3D Sync connections also provide input and output. These interfaces give integrators several options for source routing, control, service, networking, and synchronized 3D configurations.

Performance Highlights

A 0.8-inch DMD and single-chip DLP architecture form the core of the image system. The projector operates at a listed refresh rate of 60 Hz and supports a maximum resolution of 3840 × 2160. Video compatibility covers 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, and 4K UHD. Supported 3D capabilities include DLP Link for PC and video, Direct 3D through HDMI 1.4a, and mandatory 3D formats such as top-and-bottom, side-by-side, and frame-sequential content.

Noise output is rated at 42 dB in Normal mode and 39 dB in Eco mode. Normal power consumption is specified at 1,400 W when operated from 240 VAC, with standby consumption below 0.5 W. The projector accepts AC 100–240 V at 50/60 Hz.

What Makes It Different

The combination of 24,000 ANSI lumens, HEP DMD, dual-laser technology, and a wide optional-lens range distinguishes the DU8057Z as a configurable large-venue platform. Its motorized optical adjustments, substantial keystone ranges, 3G-SDI, HDBaseT, DisplayPort, HDMI, DVI-D, and bidirectional control connections address the needs of complex professional installations. A keypad lock is also listed among its available capabilities.

Final Assessment

The Vivitek DU8057Z is a high-output, lens-selectable projector for professional environments requiring WUXGA imaging, 4K UHD source support, extensive connectivity, and flexible optical configuration. Its 30,000-hour dual-laser light source, instant operation, motorized adjustment, and nine-lens range provide a strong technical basis for a tailored large-venue system. Buyers should select a compatible optional lens separately because this configuration does not include one.
