230W 6x5x4 Lamp for D832MX, D835, D837

Ideal Use Cases

This 230W 6x5x4 projector lamp is listed for the D832MX, D835, and D837 models. It is suited to buyers maintaining one of these named projectors and seeking a lamp identified by SKU 5811100876-SVK. The model references, wattage, product designation, and SKU provide the concrete information available for matching the listing to an existing projector.

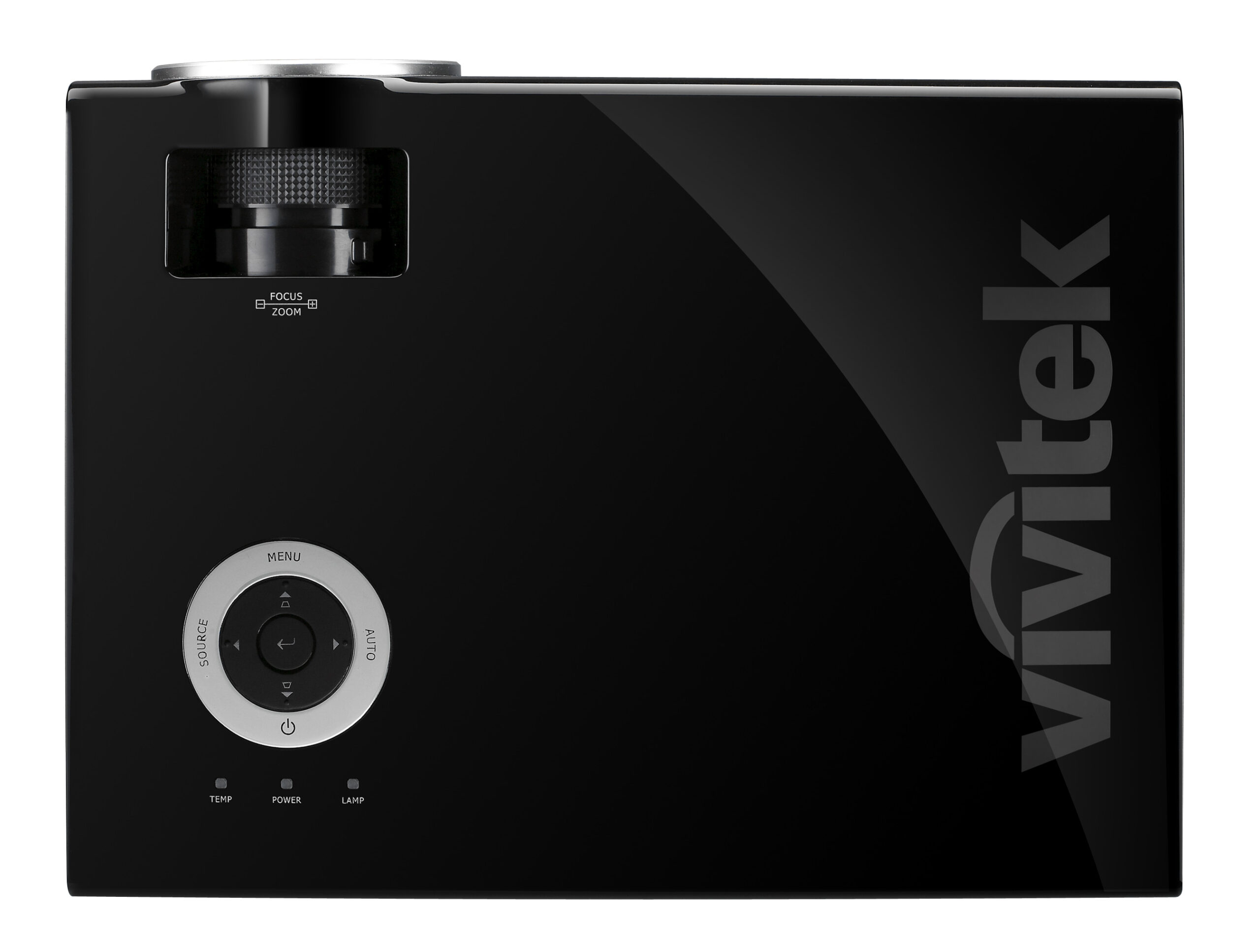

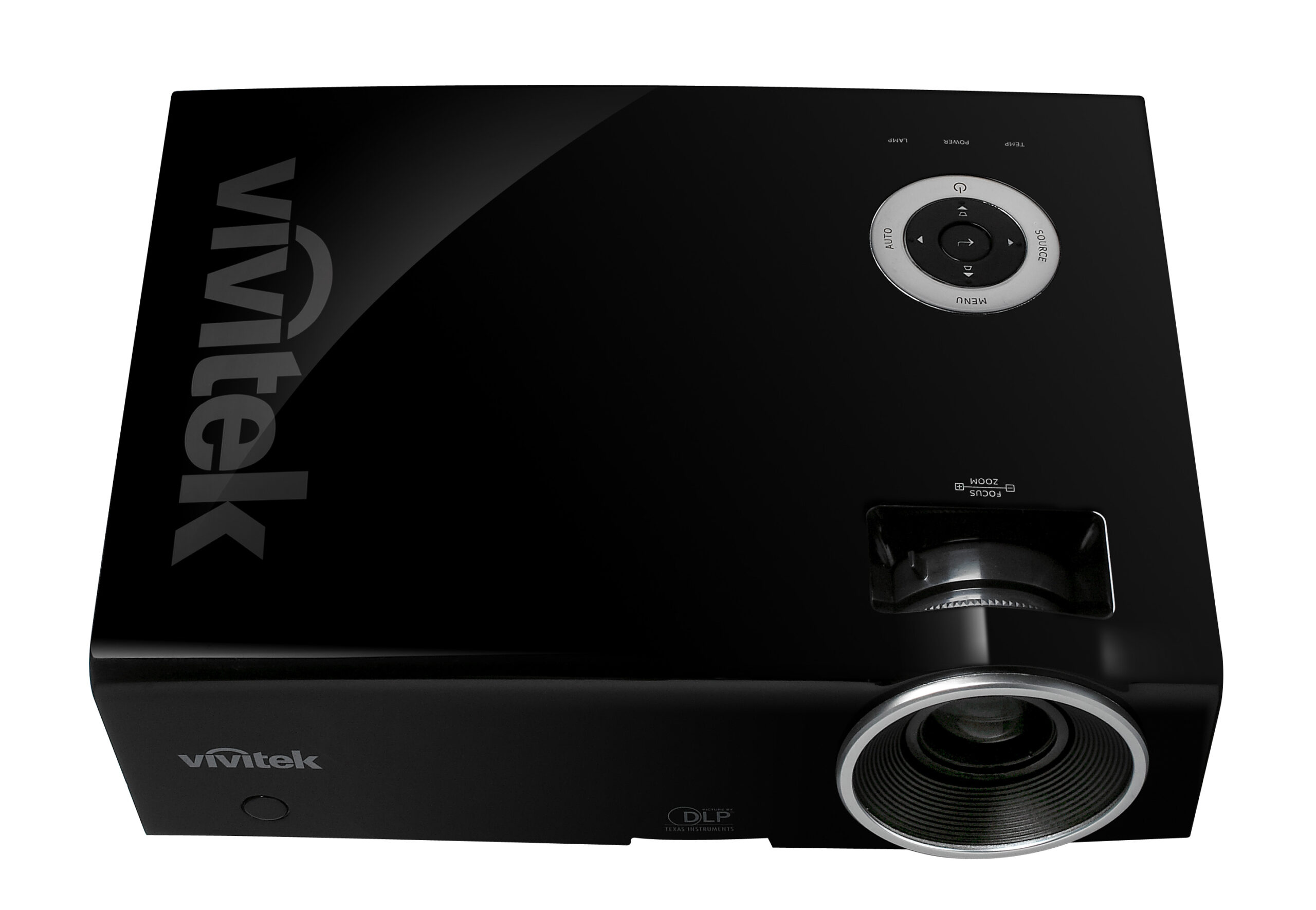

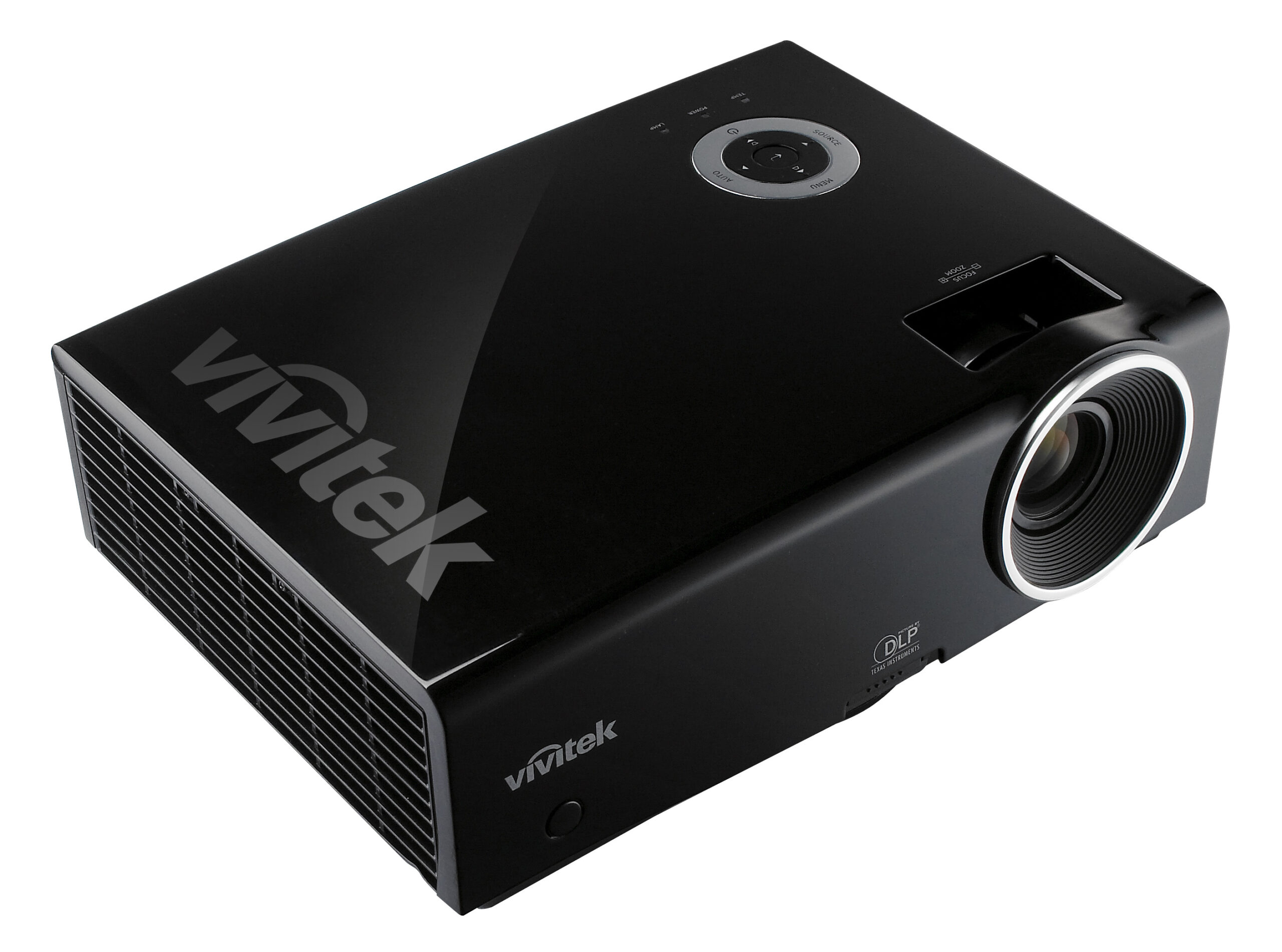

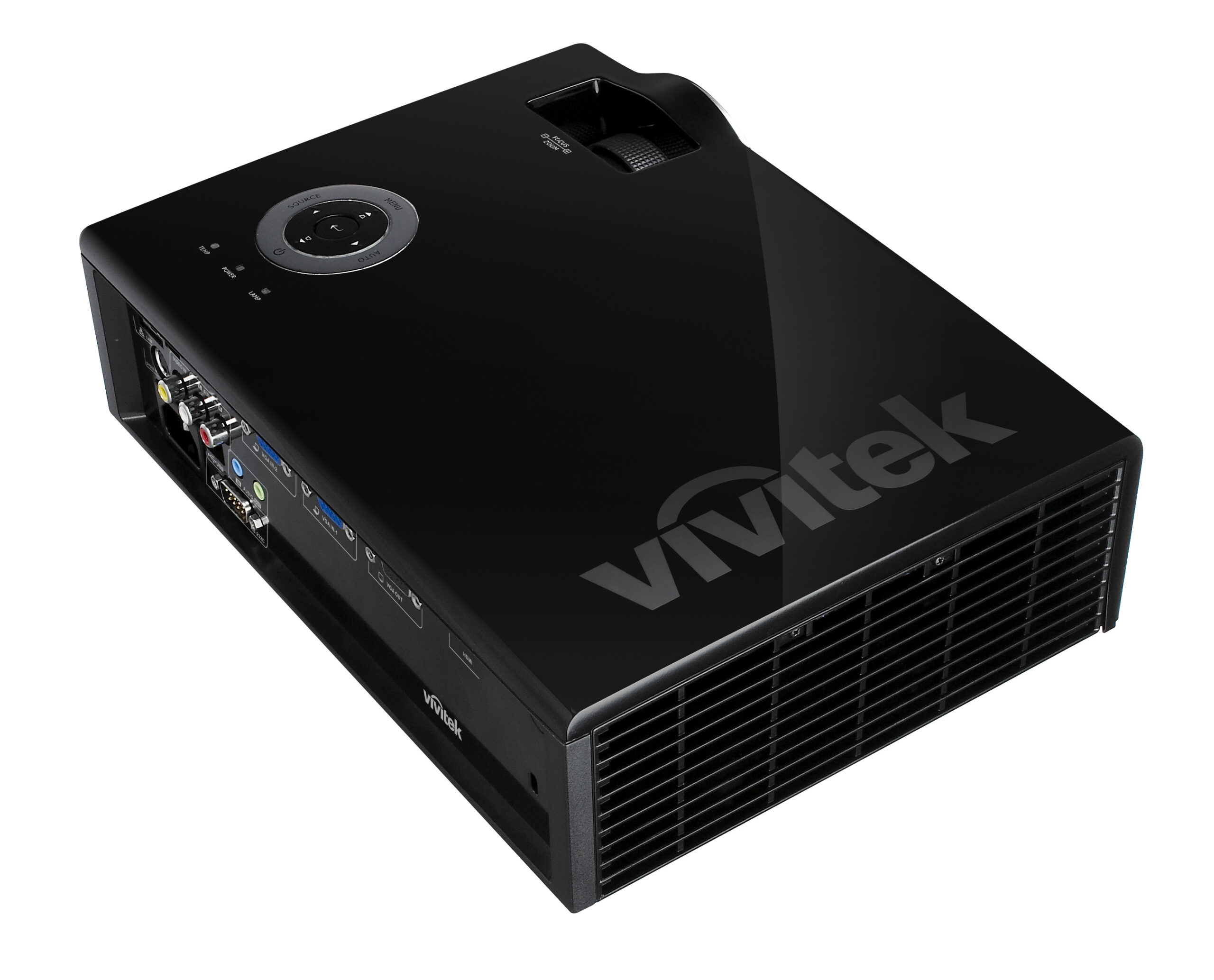

Detailed projector data is supplied specifically for the Vivitek D835, which is positioned for presentation-ready environments. Its documented system combines XGA resolution, 3,500 ANSI lumens of brightness, a 2,500:1 contrast ratio, and single-chip DLP technology. Specifications for the D832MX and D837 beyond their appearance in the lamp title were not provided.

Why Choose This Model

The principal advantage of this listing is its clearly stated compatibility reference: D832MX, D835, and D837. The lamp is identified as a 230W model with the 6x5x4 designation. For the D835, the supplied manufacturer data also identifies a 230W lamp and lists operating life at 3,000 hours in Normal mode or 4,000 hours in Eco mode.

Those lifespan figures apply to the documented D835 operating modes and are not presented as independent ratings for the D832MX or D837. Keeping that distinction visible makes it easier to compare the listing against the available projector documentation without extending the source data beyond what was supplied.

Installation and Integration

Integration information for this lamp is model-based. The product is listed for three projector models, while the SKU offers an additional reference for product identification. The source does not define whether 6x5x4 represents dimensions or another lamp designation, so it is retained here exactly as part of the product name without assigning units or a physical interpretation.

The D835 projector operates from an AC 110–240V supply. Its documented consumption is 290W in Normal mode, 240W in Eco mode, and less than 1W in Standby mode. These are specifications for the complete D835 projector rather than separate electrical-input requirements for the lamp. Lamp housing details, mounting components, installation accessories, and package contents were not supplied.

Performance Highlights

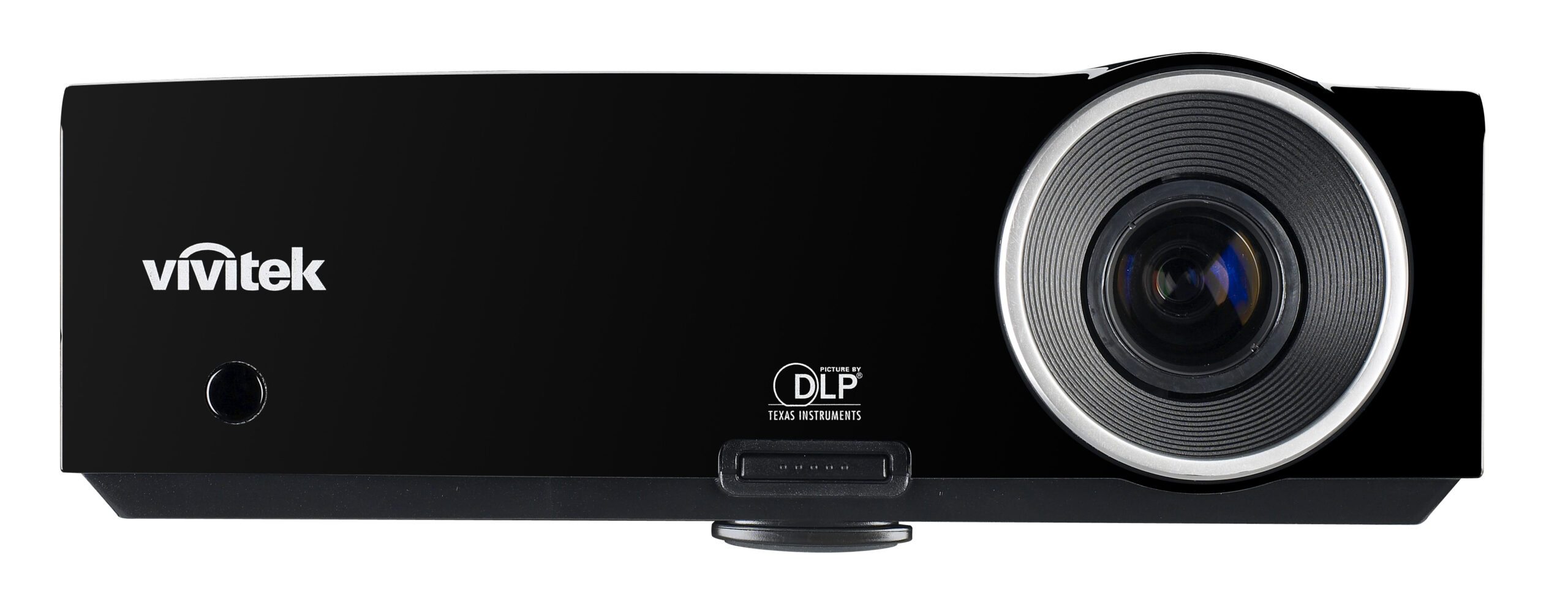

Within the D835, the documented 230W lamp supports a projection platform rated at 3,500 ANSI lumens with a 2,500:1 contrast ratio. The projector uses a 0.55-inch DMD and single-chip DLP technology from Texas Instruments. Native output is XGA at 1024 x 768, while the maximum supported resolution is UXGA at 1600 x 1200 and 60Hz. Its native aspect ratio is 4:3.

The D835 optical system provides a 1.93–2.16:1 throw ratio, 1.1x zoom, and a projected image range from 23 to 300 inches across a stated projection distance of 1 to 10 meters. Vertical keystone correction is rated at plus or minus 15 degrees, and the image offset is 128 percent. These figures describe the compatible D835 projector system and should not be interpreted as standalone lamp specifications or performance guarantees for the other listed models.

What Makes It Different

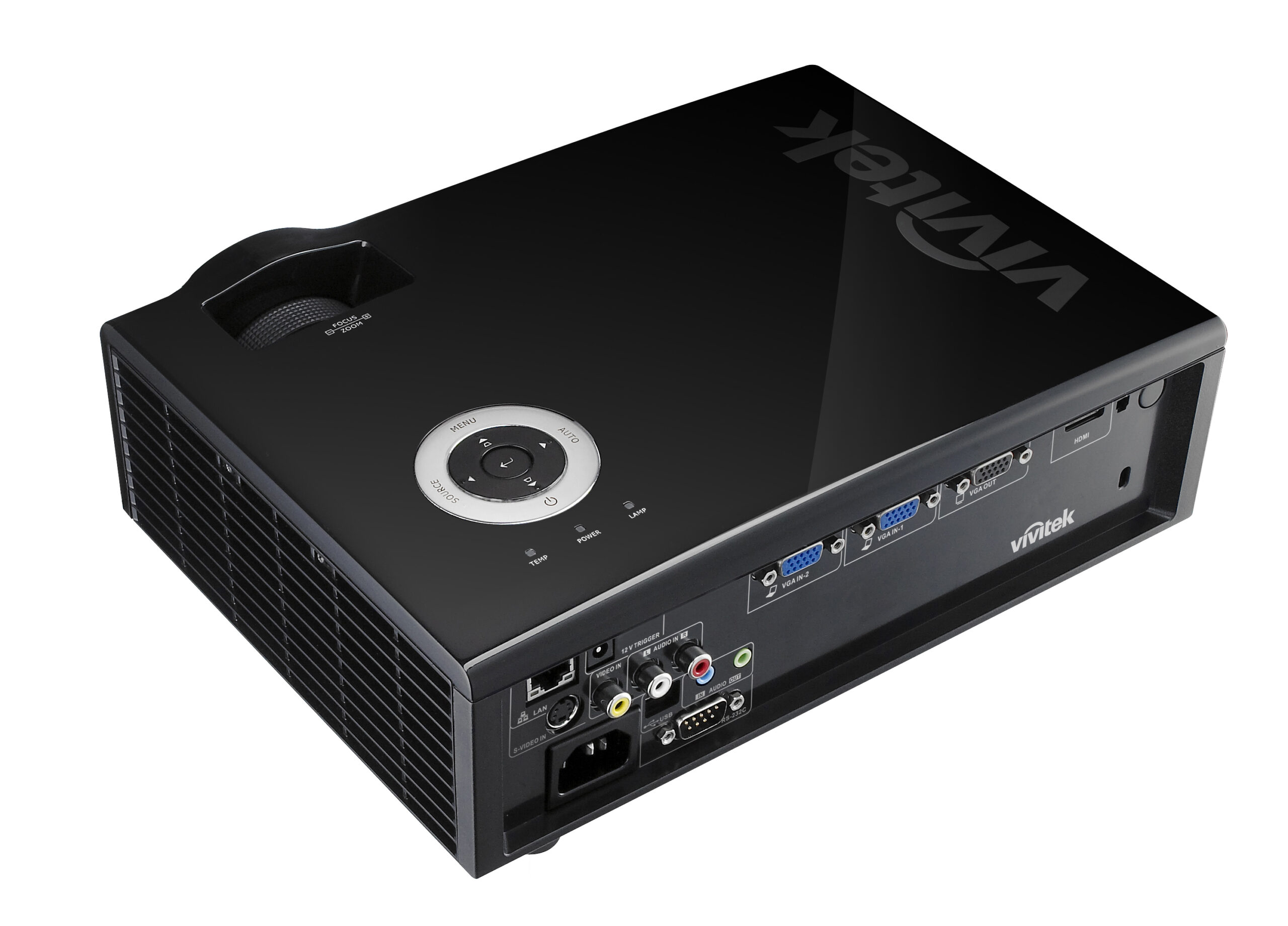

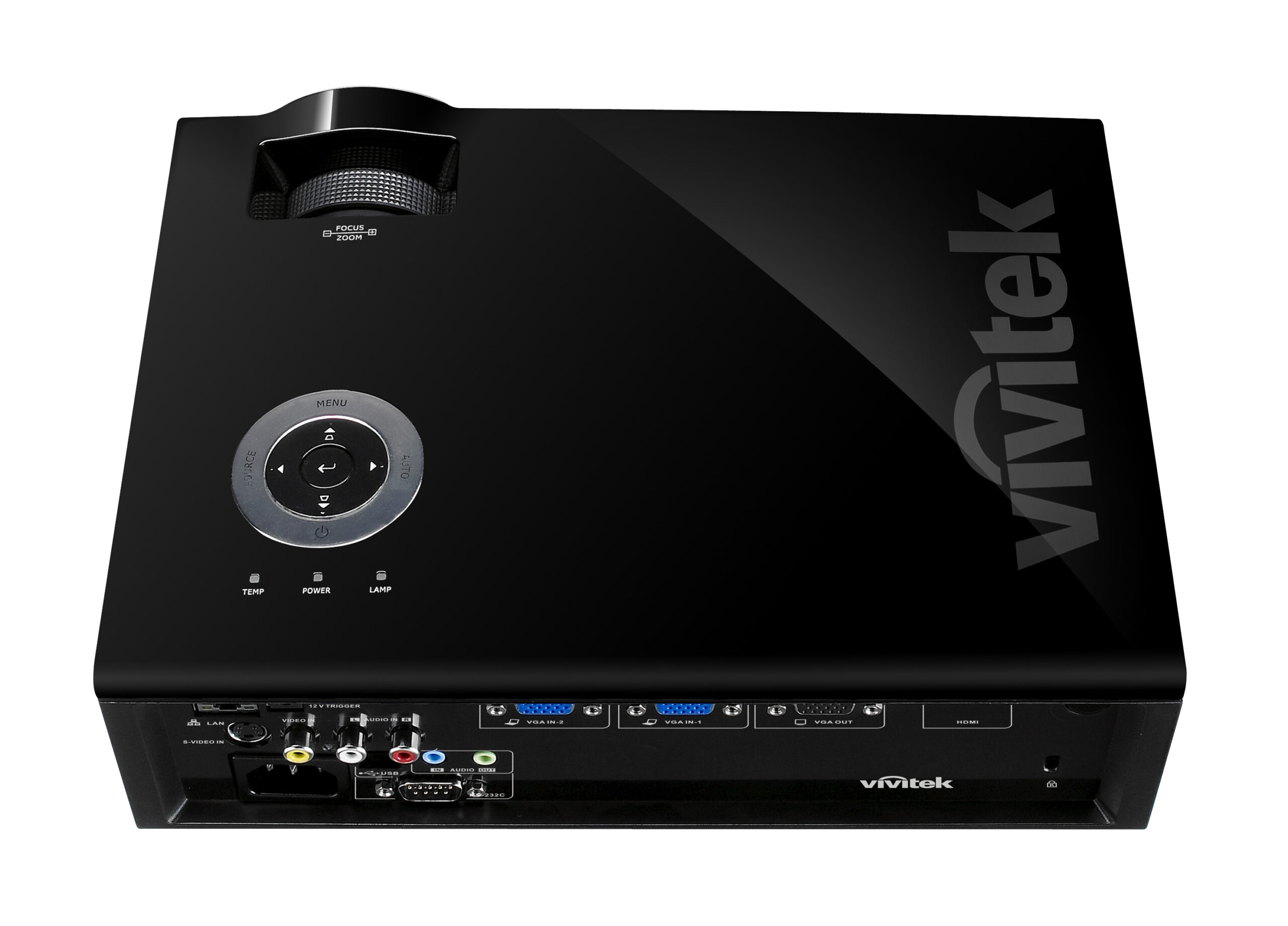

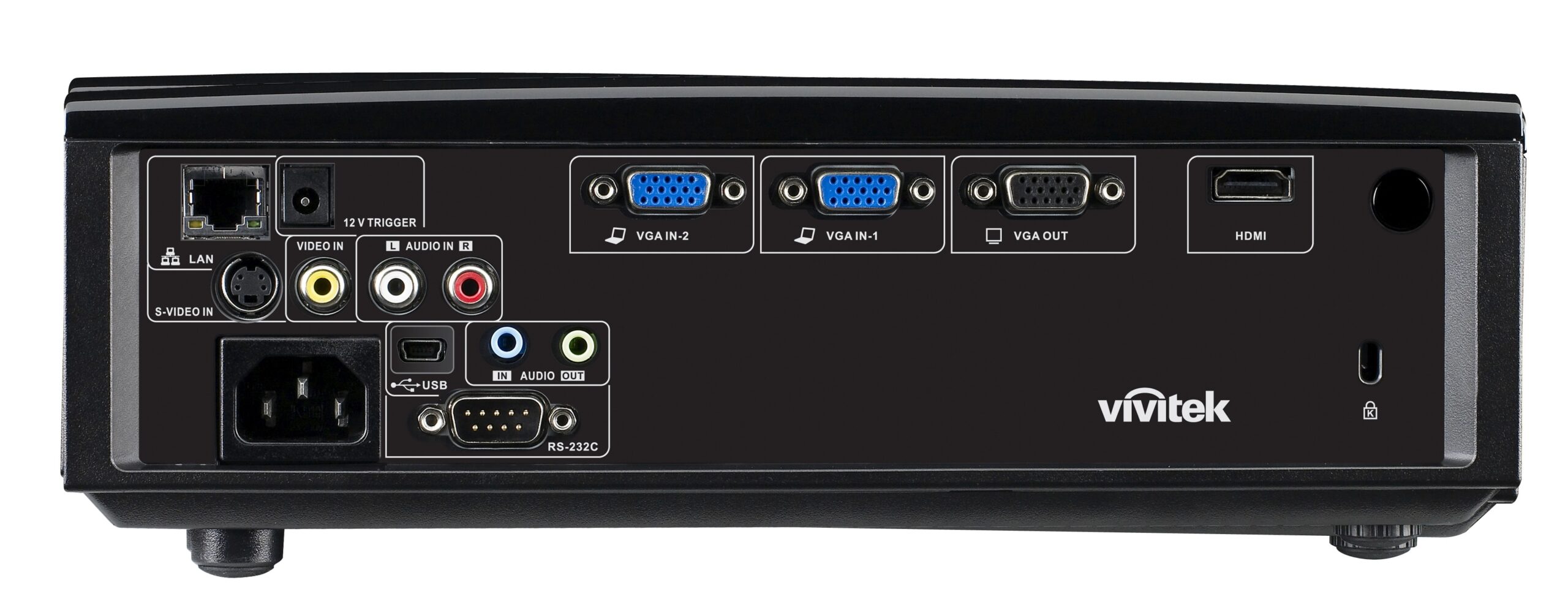

This listing combines one lamp reference with three explicitly named projector models while preserving detailed operating context for the D835. In addition to its image specifications, the D835 includes a 2W speaker and supports SDTV, EDTV, HDTV, NTSC, PAL, and SECAM video formats. Its documented connections include two VGA inputs, VGA output, RS-232, S-Video, composite video, RCA audio input, mini-jack audio input, and mini-jack audio output.

The D835 is specified at 36dB in Normal mode and 33dB in Eco mode. Its 3,000-hour and 4,000-hour lamp-life figures correspond to those same Normal and Eco operating modes, giving D835 users concrete mode-specific information when evaluating this 230W lamp listing.

Final Assessment

The 230W 6x5x4 lamp is best evaluated as a model-referenced product for the D832MX, D835, and D837, with SKU 5811100876-SVK serving as the exact listing identifier. The supplied D835 documentation confirms a 230W lamp specification and provides Normal- and Eco-mode lifespan figures. Buyers should base selection on the stated projector model, product designation, and SKU, since no lamp manufacturer, warranty, housing configuration, or included accessories were provided.
