Atlona EX70C-BP Overview

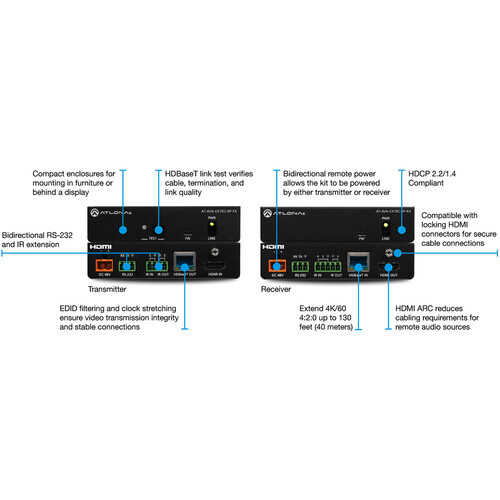

Extend your transmission of HDMI DCI/UHD 4K60 video signals up to 130′ using the Avance UHD 4K HDMI Transmitter and Receiver Kit with Control and and Bidirectional Remote Power from Atlona. The kit includes a transmitter, receiver, a power supply, and surface mounting hardware to fit these compact units easily into your A/V environment in a classroom, conference room, or event space. This kit supports bidirectional power over HDBaseT, which means you can power either the transmitter or the receiver with the included power supply, and the other unit will be powered via the category cable. It also supports HDMI ARC (Audio Return Channel), so you don’t need additional cabling when a display’s audio return channel is required.
The transmitter inputs up to DCI/UHD 4K video via HDMI from a computer, Blu-ray, camera, or other HDMI source, and it sends the signal via HDBaseT over Cat 6/6a cable up to 130′ to the receiver. If transmitting up to 1080p60 video resolution, you can send the signal up to 230′ over Cat 6/6a. The units also support embedding up to 24-bit 192 kHz audio. The extender system supports EDID filtering, HDCP 1.4/2.2 as well as CEC passthrough control. The front of the units feature LED status indicators for power, test, and link, and all the connectors are on the back. A micro-USB port on each unit allows you to update the firmware with future updates.
Applications Conference Room Transmit 4K content from a laptop or room computer to the flat-panel display at the front of the room Classroom Transmit 4K content from an instructor computer to a projector or flat-panel display Residential Advanced integration features ensure transmission of content to a remote TV at resolutions up to DCI 4K/UHD 4K Key Features
- Extends DCI 4K/UHD 4K60 4:2:0 up to 130′ with Cat 6/6a cable
- Extends 1080p60 up to 230′ with Cat 6/6a cable
- Bidirectional remote power allows the kit to be powered by either the transmitter or the receiver over HDBaseT
- HDMI Audio Return Channel (ARC) minimizes cabling in applications where an audio return channel from the display is required
- EDID filtering prevents extension of unsupported resolutions to increase the integrity of video transmission
- HDMI clock-stretching provides more stable connections with problematic HDMI sources
- HDBaseT link test verifies cable, termination, and link quality for more reliable installations
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Front-panel power and link status LEDs
- Rear-panel connections simplify wire management and save installation time
- Front-panel micro-USB port for firmware updates
- Multi-channel audio compliant for all PCM, Dolby, and DTS formats
- Compact enclosures can be mounted in furniture, behind a display, or above a projector
Atlona EX70C-BPSpecs
Transmitter Interfaces
| Inputs |
1x HDMI Female |
| Embedded Audio Input |
HDMI |
| Outputs |
1x RJ45 (HDBaseT) Female |
| Transmitter Other I/O |
1x Micro-USB 2.0 Input
1x Block 3-Pin RS-232 Input/Output
1x Block 4-Pin IR Input/Output |
Receiver Interfaces
| Inputs |
1x RJ45 (HDBaseT) Female |
| Outputs |
1x HDMI Female |
| Embedded Audio Output |
HDMI |
| Receiver Other I/O |
1x Micro-USB 2.0 Input
1x Block 3-Pin RS-232 Input/Output
1x Block 5-Pin IR Input/Output |
Standards
| HDR Support |
Yes |
| HDCP Support |
Yes, Version 1.4/2.2 |
| EDID Support |
Manual Control |
Transmission
| Max Transmission Distance |
DCI 4K, UHD 4K:
130′ / 39.6 m (via Cat 6a/7)
1080p:
230′ / 70.1 m (via Cat 6a/7) |
| Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K: 24/25/30/50/60 fps
UHD 4K: 24/25/30/50/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 25/29.97/30 fps
720p: 50/59.94/60 fps
576p: 50 fps
PAL: 25 fps
480p: 59.94/60 fps
NTSC: 30 fps |
| PC Resolutions |
HDMI: 2560 x 1600 at 60 Hz
HDMI: 2048 x 1536 at 60 Hz
HDMI: 1920 x 1200 at 60 Hz
HDMI: 1680 x 1050 at 60 Hz
HDMI: 1600 x 1200 at 60 Hz
HDMI: 1440 x 900 at 60 Hz
HDMI: 1400 x 1050 at 60 Hz
HDMI: 1280 x 1024 at 60 Hz
HDMI: 1280 x 800 at 60 Hz
HDMI: 1366 x 768 at 60 Hz
HDMI: 1152 x 864 at 60 Hz
HDMI: 1024 x 768 at 60 Hz
HDMI: 800 x 600 at 60 Hz
HDMI: 640 x 480 at 60 Hz |
| DTS Compatibility |
DTS, DTS-HD Master Audio, DTS:X |
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| Supported Cable Types |
Cat 5e/6/6a/6e/7 UTP, FTP, STP |
Power
| Transmitter Power I/O |
1x Block 2-Pin (48 VDC) Input |
| Receiver Power I/O |
1x Block 2-Pin (48 VDC) Input |
| PoE Support |
PoH 802.3at |
| Transmitter Power Consumption |
Device:
Power Supply: 100 to 240 VAC |
| Receiver Power Consumption |
Device:
Power Supply: 100 to 240 VAC |
General
| Certifications |
CE, CEC, FCC, RoHS |
| Operating Conditions |
32 to 122°F / 0 to 50°C at 20 to 60% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| Transmitter Dimensions |
4.3 x 3.7 x 1″ / 10.9 x 9.4 x 2.6 cm |
| Receiver Dimensions |
4.3 x 3.7 x 1″ / 10.9 x 9.4 x 2.6 cm |
| Transmitter Weight |
9.5 oz / 270 g |
| Receiver Weight |
10.2 oz / 290 g |
Packaging Info
| Package Weight |
3.01 lb |
| Box Dimensions (LxWxH) |
13.8 x 8.3 x 2.9″ |
