Manual Preset Trigger Device for use with AV Bridge 2×1, EasyIP Mixer, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW video switchers.

Key Features:

• One (1) PresenterPOD Interface (Interface Supports up to 2 PODs for 8-total triggers)
• One (1) PresenterPOD with Trigger 4-buttons
• Choice of momentary or latching triggers
• Adhesive labels and mounting hardware included
• For use with AV Bridge 2×1, EasyIP Mixer, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW video switchers

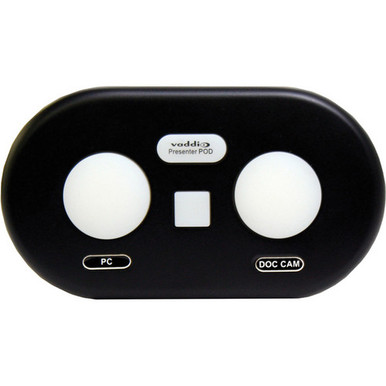

The PresenterPOD is the perfect complement to AV Bridge 2×1, EasyIP Mixer, AV Bridge MatrixMIX, MATRIX PRO, and ProductionVIEW video switchers. The PresenterPOD has two large buttons located on the POD to offer flexible control over the automated content and other necessary content sources. A third, small square button is available for an additional preset like picture-in-picture (PIP) on/off adjustments.

The PresenterPOD connects via a single Cat. 5 cable to the PresenterPOD Interface for power and data. The Interface can be programmed for either latching or momentary triggers.

Specifications

Attributes

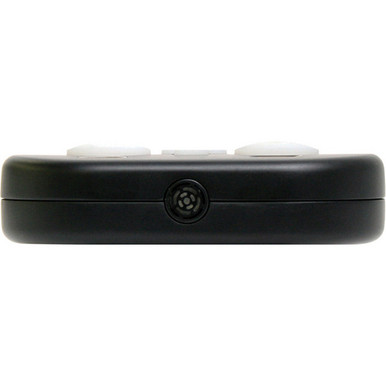

1 Presence Sensor with logo button that turns red when sensing

3 manual switches with blue LEDs backlights

RJ-45 jack to connect to the PresenterPOD Interface with Cat 5e

4-position dip switch for distance sensitivity

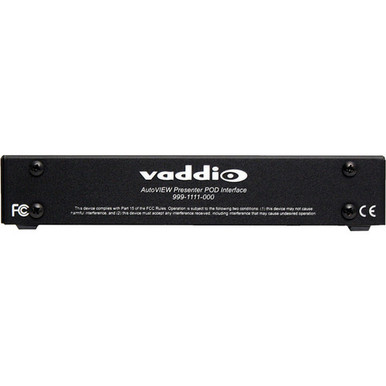

Interface
Supplies power and receives trigger data on 2 RJ-45 connectors and can support two 2 pods per Interface

5 trigger outputs per pod on Phoenix type connectors

10 Position dip switch assigns triggers as latching or mom.
Connectivity
RJ-45 Power and Data to/from Video Whiteboard

RJ-45 10/100 Ethernet Port

5-position dip switch
Labeling
1 sheet of adhesive labels provided (both pre-labeled and blanks)
Power
PowerRite 12 VDC, 3.0 Amp
Dimensions
PresenterPOD Interface: 1.5 x 8 x 6″ (38 x 203 x 152mm)
PresenterPOD: 1.3 x 5.7 x 3.2″ (33 x 145 x 81mm)
Weight
3.2 lbs (1.5kg)
