Key Features
Universal 120V-240V AC input with IEC connectors
4 controlled and monitored AC receptacles
3 DC banks, 2 controllable
Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
Time stamped power quality events
Internal storage of 30 days worth of Max/Min/Avg electrical parameters
Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
TLS, SSL, SNMP V3, single sign-on

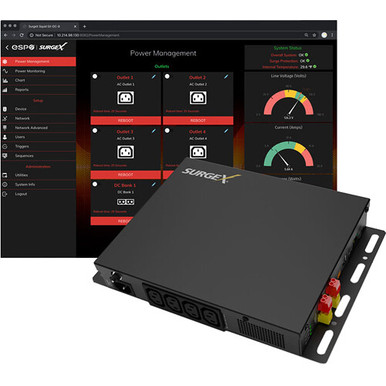

The SurgeX SQUID is the only product that provides AC/DC power protection, boxed network control, and analytical software in one chassis. You’ll no longer have to install a product for AC, another for DC, and yet another to monitor and control the power environment. It is the perfect solution for collaborative flex environments, huddle spaces, and other tight-spaced AV settings.
- Universal 120V-240V AC input with IEC connectors
- 4 controlled and monitored AC receptacles
- 3 DC banks, 2 controllable
- Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
- Time stamped power quality events
- Internal storage of 30 days’ worth of Max/Min/Avg electrical parameters
- Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
- TLS, SSL, SNMP V3, single sign-on
- 2, 5V USB ports for charging
- Compact size fits along, behind, or near equipment
Main Features
- Universal 120V-240V AC input with IEC connectors
- 4 controlled and monitored AC receptacles
- Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
Specifications
Key Specs
Metering Yes
Battery Backup No
Outlets 4x IEC-320 C13
Additional I/O
1x RJ45
2x USB-A
1x Micro-USB
Type Conditioner
Amp Rating 12 A
Number of Circuits Not Specified by Manufacturer
Metering Yes
Battery Backup No
Integrated Lamps None
Connections
Outlets 4x IEC-320 C13
Wall Plug Type IEC-320 C14
Lamp I/O No
Additional I/O
1x RJ45
2x USB-A
1x Micro-USB
Wireless No
Mobile App Compatible No
Electrical
AC Input Power
Factory Set:
120 VAC, 50 / 60 Hz
User Selectable:
120 to 240 VAC, 50 / 60 Hz
DC Output Power 24 VDC
Output Current 2.5 A (per Circuit, Maximum)
Load Capacity Not Specified by Manufacturer
Sequencing Delay No
USB Output
5 V, 1 A
5 V, 3 A
Protection & Conditioning
Protection Types & Modes Overvoltage, Undervoltage, EMI Filter, Manual Reset, Auto-Reset
Circuit Breaker Yes
Undervoltage Protection ≤ 300 V
EMI/RFI Noise Filtration
30 dB (80 kHz to 50 MHz)
Common-Mode:
20 dB (160 kHz to 27 MHz)
30 dB (310 kHz to 17 MHz)
Environmental
Certifications UL, cUL, CB 62368
Operating Temperature 37 to 74°F / 5 to 42°C
Operating Humidity 0 to 95%
Physical
Dimensions 10 x 8.25 x 1.75″ / 25.4 x 20.96 x 4.45 cm
Weight 5.5 lb / 2.5 kg
Packaging Info
Package Weight 8.46 lb
Box Dimensions (LxWxH) 15.4 x 11.3 x 6.5″
