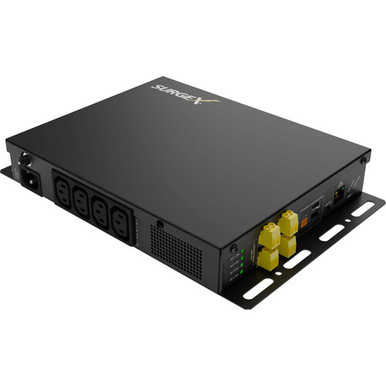

The Squid Power Management System from SURGEX is an AC and DC power distribution unit with power conditioning, control, and monitoring. Thanks to its small form factor, you can mount it to a wall, a table, or against the face of an equipment rack. It features an internal web server that provides configuration, output control, monitoring, and the retrieval of data logs. Multiple security and communication interface options are also supported.
This PDU has one IEC320 C14 AC inlet, four IEC320 C13 AC outlets, two 5V USB-A ports, an RJ45 network port, a micro-USB port, and two recessed push buttons for hardware and software reset. There are also five DC terminal blocks with a 5V output, plus two output banks, each with two ports. Each DC output delivers 5A at 12V. Also featured is under-voltage auto shutdown that is adjustable from 0 to 300V, overvoltage auto shutdown that is adjustable from 125 to 300V, and overcurrent auto shutdown that is adjustable from 0.1 to 20A. All three of these may also be disabled.
The Squid’s software offers a single solution for management, mitigation and control of a system’s power. Its competencies include sequencing, scheduling, auto-ping, IP control and monitoring plus reduced service calls through proactive management. Its 360° of power protection helps ensure equipment remains up and running without disruption.
- Universal 120V-240V AC input with IEC connectors
- 4 controlled and monitored AC receptacles
- 3 DC banks, 2 controllable
- Measures electrical parameters including voltage, current, power, frequency, power factor, and crest factor
- Time-stamped power quality events
- Internal storage with 30 days of max/min/avg electrical parameters
- Wired ethernet for web server (HTTP/HTTPS), 802.1x authentication
- TLS, SSL, SNMP V3, single sign-on
- Two 5V USB ports for charging
- Compact size fits along, behind, or near equipment
Key Features
- AC/DC Power Distribution Unit
- Power Conditioning, Control & Monitoring
- Four IEC320 C13 AC Outlets
- IEC320 C14 AC Inlet
- Operates Using 120V at 50/60 Hz, 12A Max
- Five DC Terminal Blocks
- DC Output 1: 5A at 12V
- DC Output 2: 5A at 12V
- Two USB-A 5 VDC Outputs
- RJ45 Port | Micro-USB Port
Specifications
Key Specs
Metering Yes
Battery Backup No
Outlets 4x IEC-320 C13
Additional I/O
1x RJ45
2x USB-A
1x Micro-USB
Type Conditioner
Amp Rating 12 A
Number of Circuits Not Specified by Manufacturer
Metering Yes
Battery Backup No
Integrated Lamps None
Connections
Outlets 4x IEC-320 C13
Wall Plug Type IEC-320 C14
Lamp I/O No
Additional I/O
1x RJ45
2x USB-A
1x Micro-USB
Wireless No
Mobile App Compatible No
Electrical
AC Input Power
Factory Set:
120 VAC, 50 / 60 Hz
User Selectable:
120 to 240 VAC, 50 / 60 Hz
DC Output Power 12 VDC
Output Current 5 A (per Circuit, Maximum)
Load Capacity Not Specified by Manufacturer
Sequencing Delay No
USB Output
5 V, 1 A
5 V, 3 A
Protection & Conditioning
Protection Types & Modes Overvoltage, Undervoltage, EMI Filter, Manual Reset, Auto-Reset
Circuit Breaker Yes
Undervoltage Protection ≤ 300 V
EMI/RFI Noise Filtration
30 dB (80 kHz to 50 MHz)
Common-Mode:
20 dB (160 kHz to 27 MHz)
30 dB (310 kHz to 17 MHz)
Environmental
Certifications UL, cUL, CB 62368
Operating Temperature 37 to 71°F / 5 to 39°C
Operating Humidity 0 to 95%
Physical
Dimensions 10 x 8.25 x 1.75″ / 25.4 x 20.96 x 4.45 cm
Weight 5 lb / 2.3 kg
Packaging Info
Package Weight 8.225 lb
Box Dimensions (LxWxH) 15 x 11.8 x 6.4″
