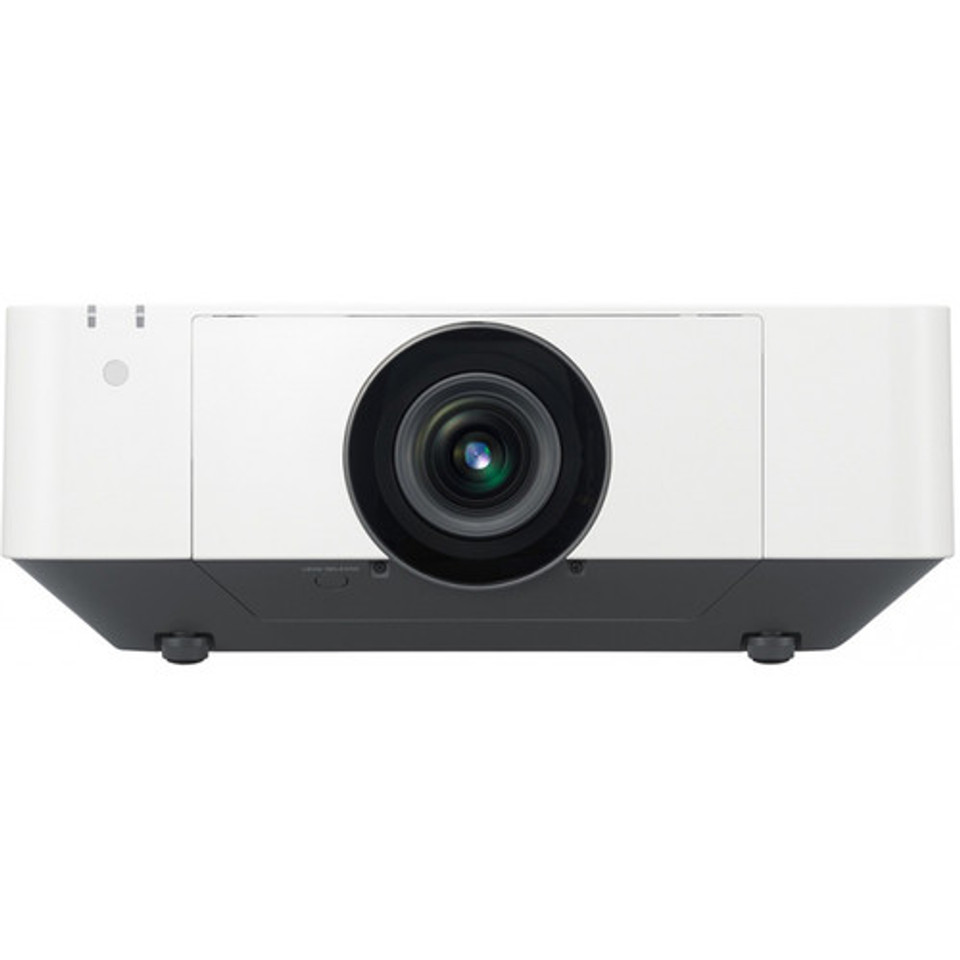

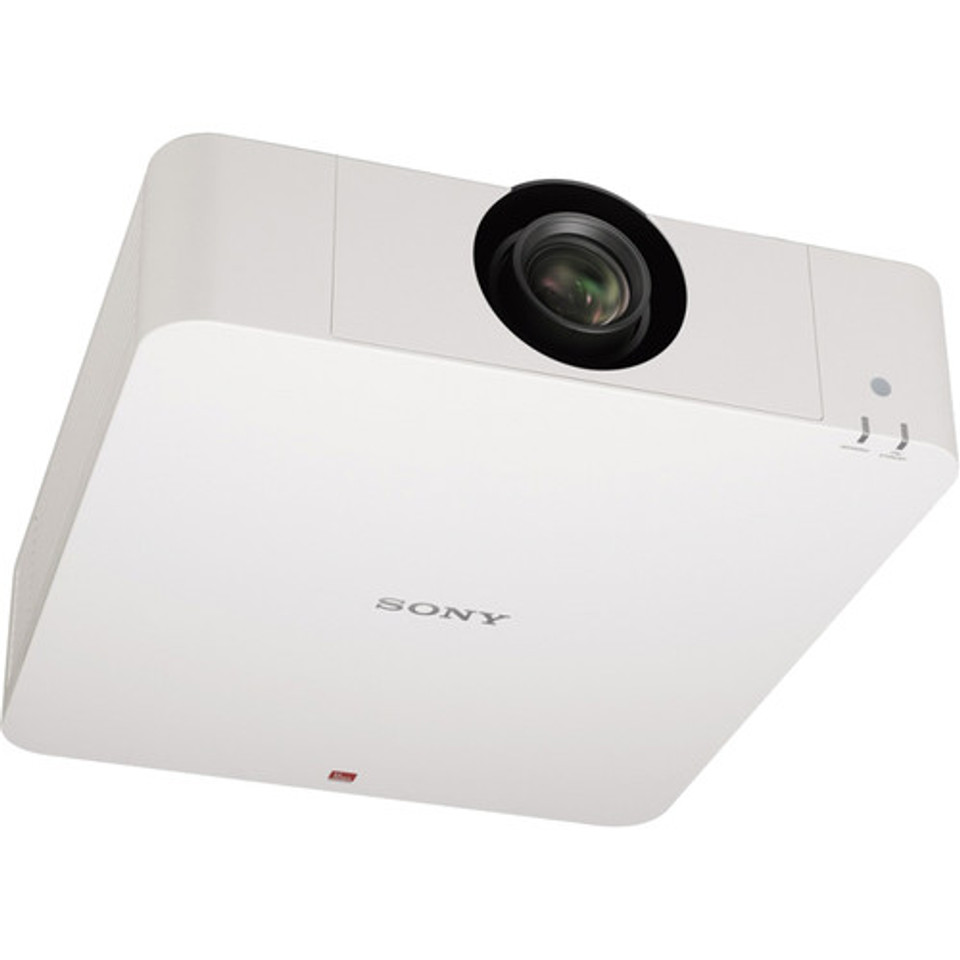

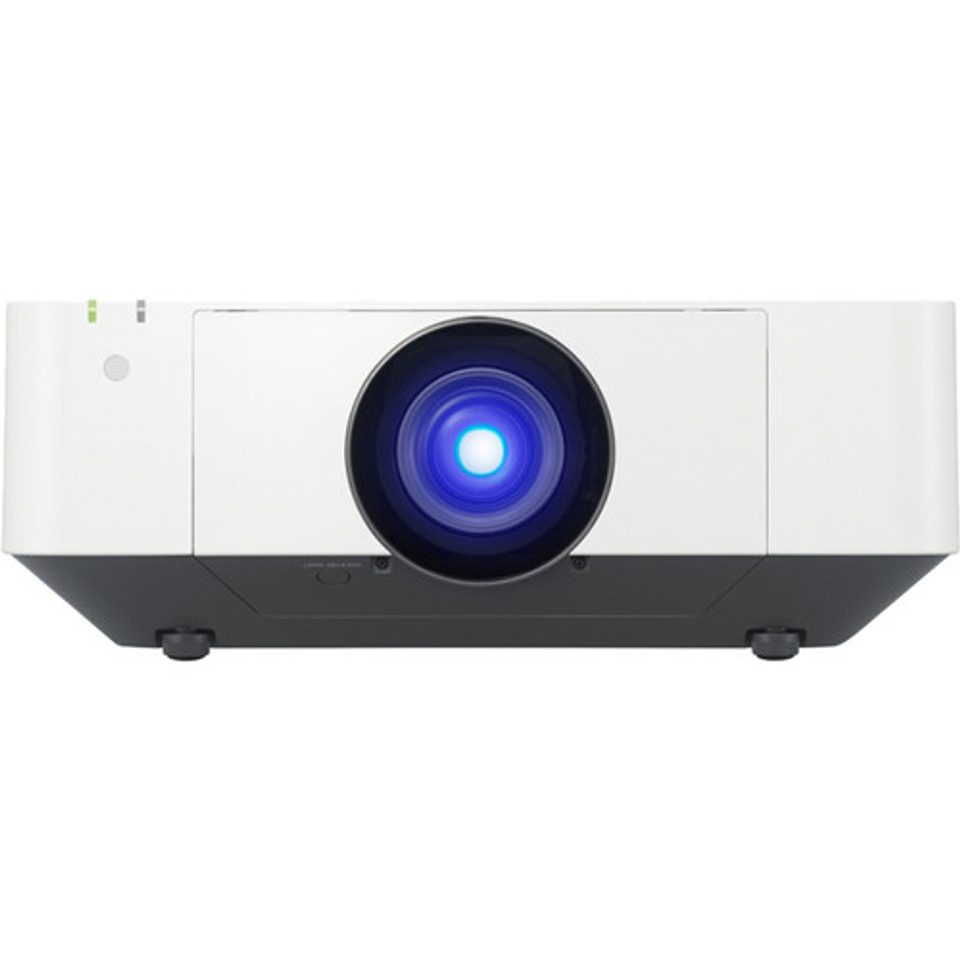

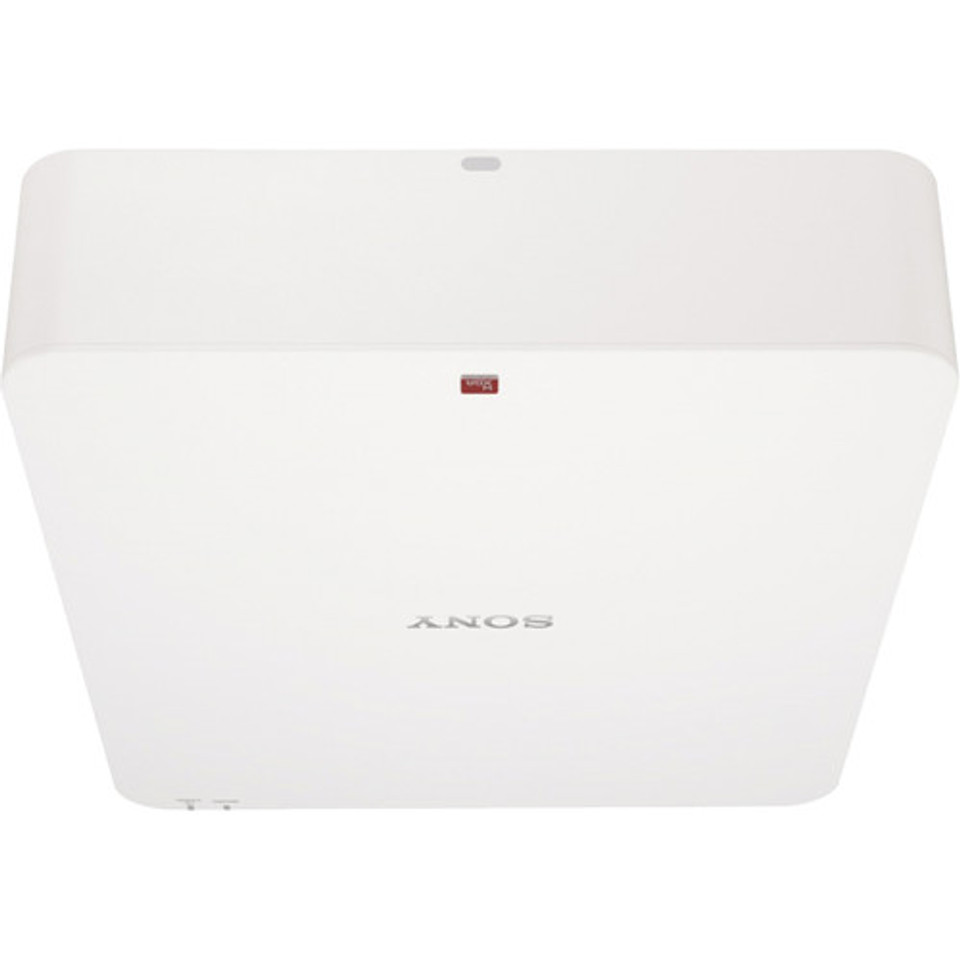

Sony VPL-FWZ60 Overview
The VPL-FWZ60 3LCD Laser Light Source Projector from Sony provides 5000-lumen output and 10,000:1 contrast ratio. It features a throw ratio of 1.39 to 2.23:1 and 1.6x powered zoom. The projector supports multiple modes such as Reality Creation and Contrast Enhancer to enhance the projected picture. VPL-FWZ60 comes equipped with an HDMI port and is HDBaseT compatible.
- Native WXGA resolution
- Laser light source Z-phosphor and 3LCD projection system
- Bright Era optics
- 20,000 hours of virtually zero maintenance operation
- Hassle-free automatic filter cleaning
- Tilt-angle free
- Supports edge blending
- Quiet operation
- Professional calibration
- Instant ON/OFF
- Constant brightness mode
Sony VPL-FWZ60 Specs
Image Display
| Display System | 3-Chip 0.76" LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: 1920 x 1200 |
| Maximum Brightness | 5000 Lumens 3500 Lumens |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 10000:1 |
| Scan | Horizontal: 15 to 92 kHz Vertical: 48 to 92 Hz |
Lens
| Focus | Manual Powered |
| Lens Shift | Vertical: -5 to 60% Horizontal: ± 32% |
| Optical Zoom | Powered: 1.6x |
| Throw Ratio | 1.39 to 2.23:1 |
Features
| Ceiling Mountable | Yes |
| Inputs/Outputs | 1 x Mini-VGA port Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x DVI-D Audio, Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDBaseT (RJ45) Audio, Control, Video Input 1 x Composite (BNC) Video Input 1 x Mini-VGA port Video Output 1 x DVI-D Video Output 1 x RS-232 (DE-9/DB-9) Control 1 x Ethernet (RJ45) LAN |
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 34 dB Medium Brightness: 28 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.3 to 5.5 A |
| Power Consumption | Full Brightness: 383 W Standby Mode (Lamp Off): 15 W |
| Dimensions (W x H x D) | 18.1 x 6.7 x 20.3" / 46.0 x 16.9 x 51.5 cm |
| Weight | 16.00 lb / 7.26 kg |
Packaging Info
| Package Weight | 43 lb |
| Box Dimensions (LxWxH) | 25 x 23 x 13" |
1 Year Parts & Labor Manufacture Warranty
